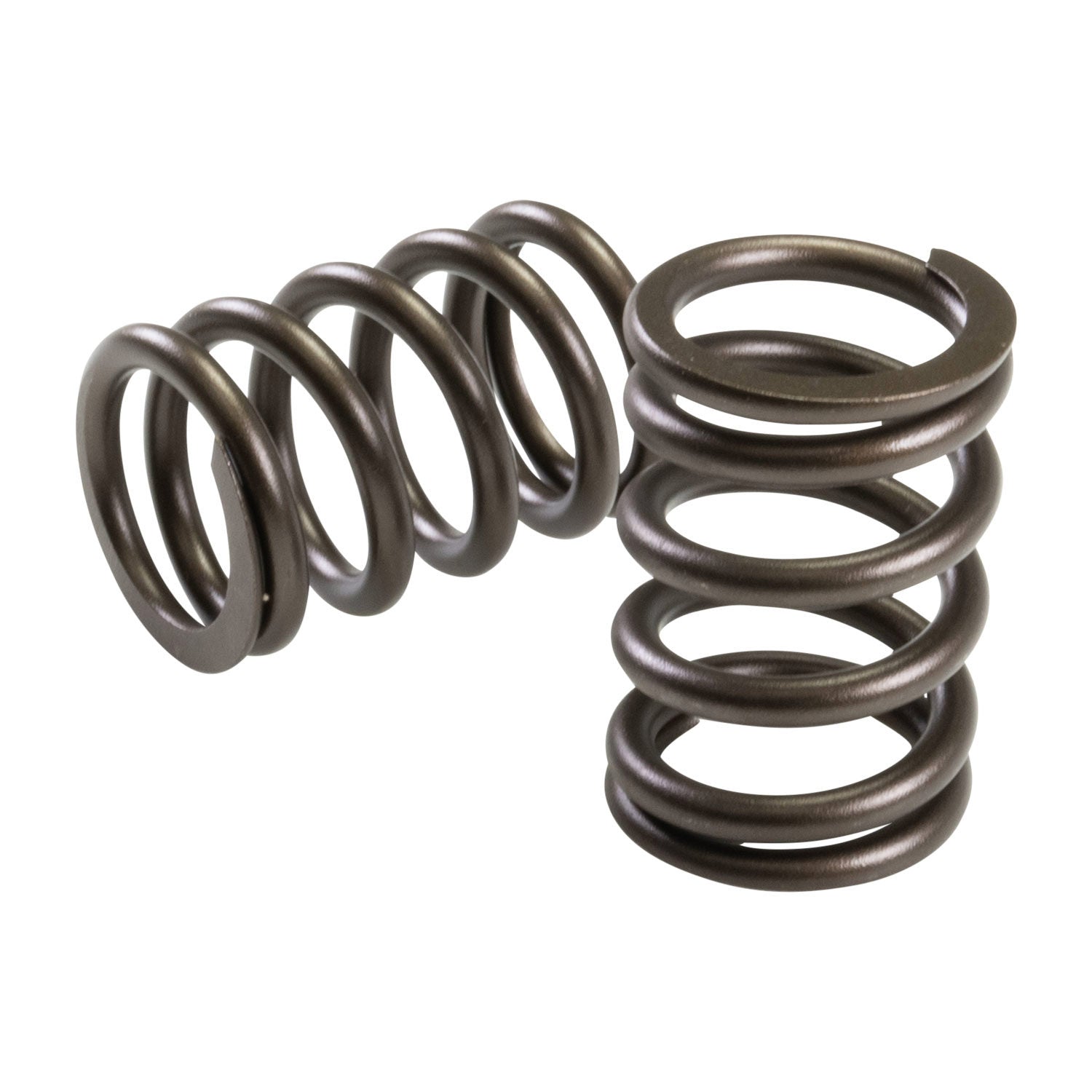

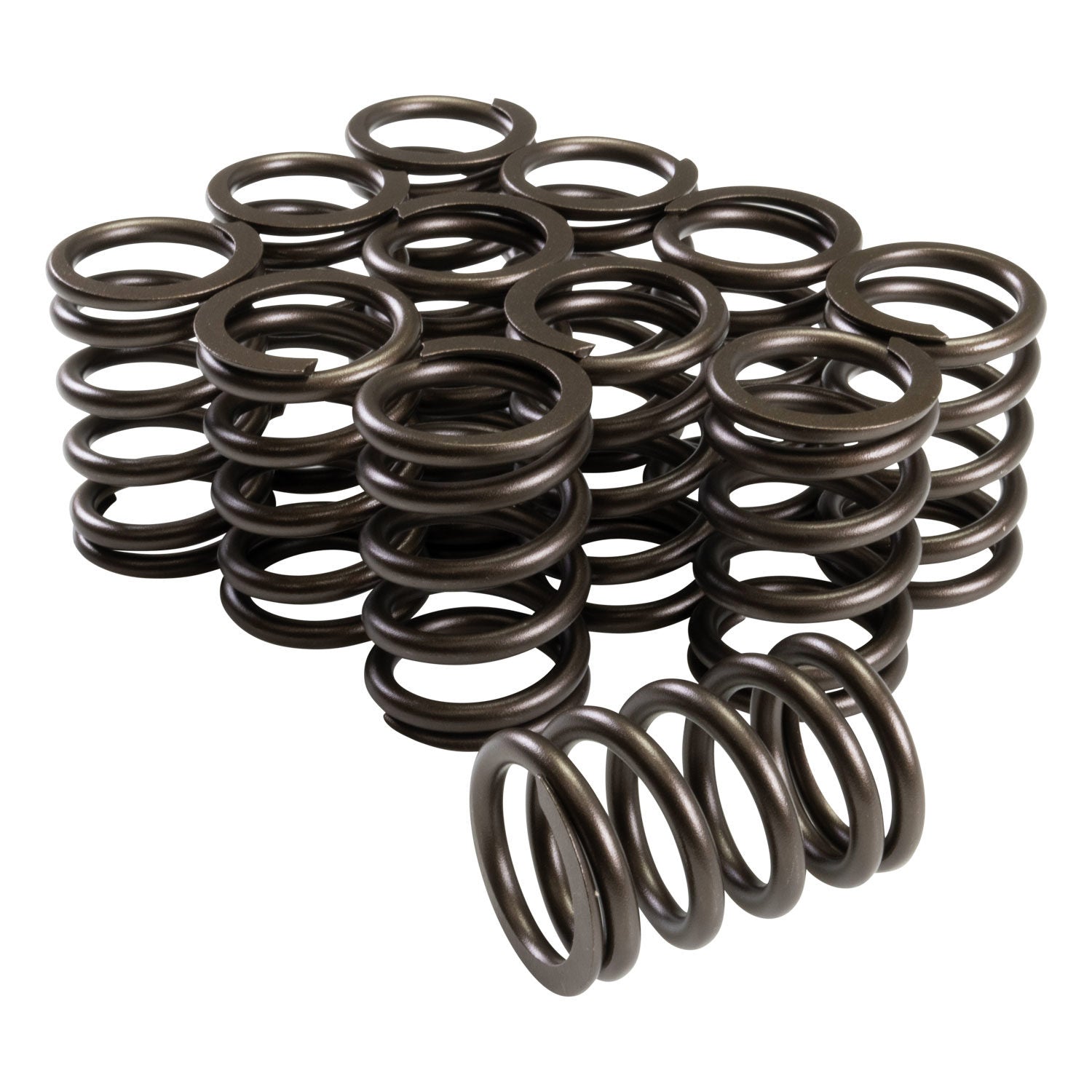

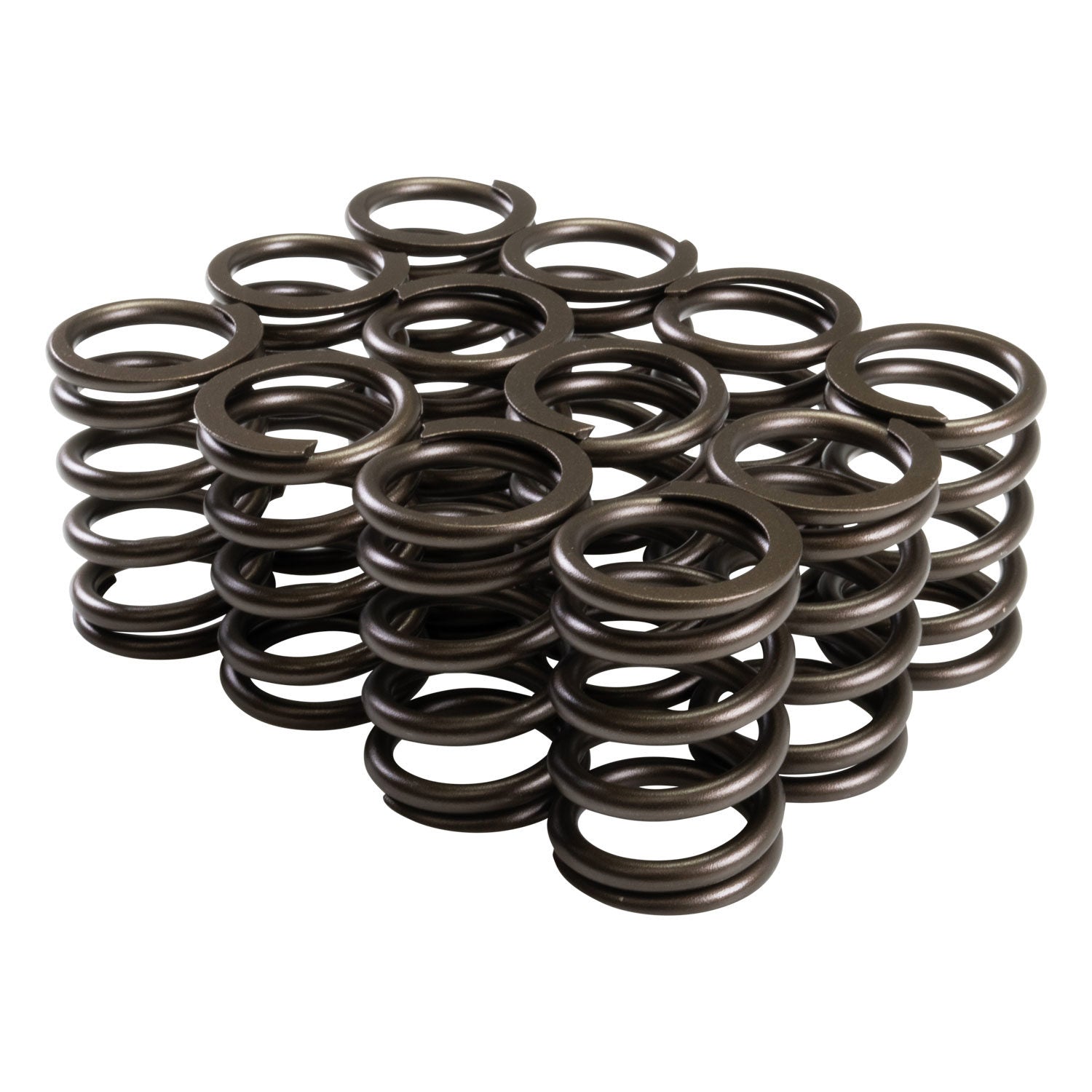

COMP Cams 26903-12 - Single Spring Valve Set 1.404 OD 1.650 IH .550 Lift

MSRP: $86.89
$78.99
( saved $7.90 )
Write a Review
  • COMP Cams 26903-12 - Single Spring Valve Set 1.404 OD 1.650 IH .550 Lift
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
COMP-26903-12
UPC:
036584000525
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

COMP Cams - 26903-12

Valve Spring - Single Spring - 300 lb/in Spring Rate - 1.033 in Coil Bind - 1.650 in OD - Set of 12

Designed for flat tappet cams, 26903 can be installed from 1.500” to 1.700” with a 1.404" OD, fitting a wide variety of early cylinder heads. An open load of 260 lbs provides safe operation for most hydraulic flat tappet applications.

COMP Cams' new 26903 single valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques using premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26903 valve springs are an excellent choice for many flat tappet cams in applications with limited installed height, anywhere from 1.500” to 1.700”, depending on the lift. They easily fit numerous spring pockets with a 1.404" outer diameter, offering versatility across many applications. Designed to run approximately 0.065” from bind with an open load of 260 pounds, these valve springs allow safe operation in many street hydraulic flat tappet applications, ensuring exceptional performance and durability. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams valve springs

Number of Springs: 12
Spring Rate: 300
Seat Pressure: 95
Seat Height: 1.650
Outer Spring Outside Diameter: 1.404
Outer Spring Inside Diameter: 1.020
Coil Bind Height: 1.033
Damper: No
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Compatible Shims: 4754
Compatible Retainer: 709-12 Steel Retainers for 10° Locks and All Valves
Compatible spring seats: 4667-12 Spring Seats for .530 Guide
Spring Type: Single
Recommended Max Lift (in): .500
