COMP Cams 26125CTS-KIT - 11-14 Ford Coyote/Boss 5.0L .600in Max Lift Valve Spring Kit
COMP Cams 26125CTS-KIT - 11-14 Ford Coyote/Boss 5.0L .600in Max Lift Valve Spring Kit
SKU: COMP-26125CTS-KIT
Regular price
$1,078.99 USD
Regular price
$1,186.89 USD
Sale price
$1,078.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 26125CTS-KIT - 11-14 Ford Coyote/Boss 5.0L .600in Max Lift Valve Spring Kit

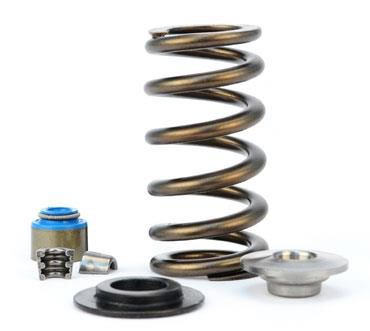

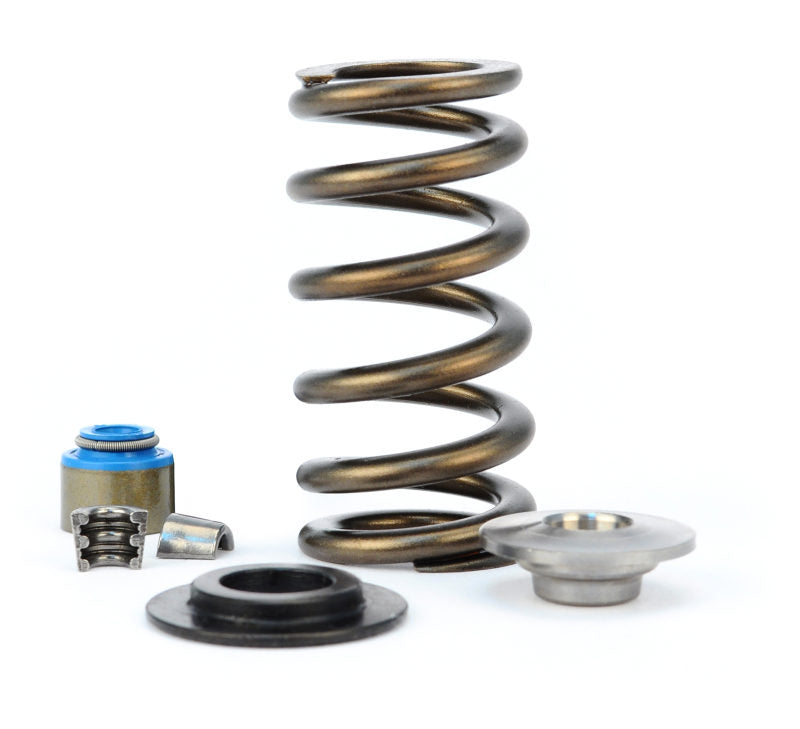

Coyote Beehive Spring Kit w/ Tool Steel Retainers, .600" Max Lift
Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes tool steel retainers, seals and seats.
Ford Coyote and Boss 5.0L engines
| Max Lift | Seat Load | Open Load | Rate | Coil Bind | Outer Diameter | Inner Diameter |
| .600" | 120 lbs @ 1.57" | 275 lbs @ 1.02" | 258 lbs/in | .970" | Top 1.013" / Bottom 1.101" | Top .650" / Bottom .738" |
- Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
- Create higher load
- higher RPM and more lift capacity than stock.
- Increased valve control at high RPM.
- .600" Maximum Lift
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
