COMP Cams 26124-32 - Valve Springs, Ford Powerstrok E 6.0/6.4, Set Of 32

COMP Cams 26124-32 - Valve Springs, Ford Powerstrok E 6.0/6.4, Set Of 32

COMP Cams | 26124-32
SKU: COMP-26124-32
Regular price $639.95 USD
Regular price $703.94 USD Sale price $639.95 USD
Sale Sold out
Shipping calculated at checkout.

11 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 26124-32 - Valve Springs, Ford Powerstrok E 6.0/6.4, Set Of 32

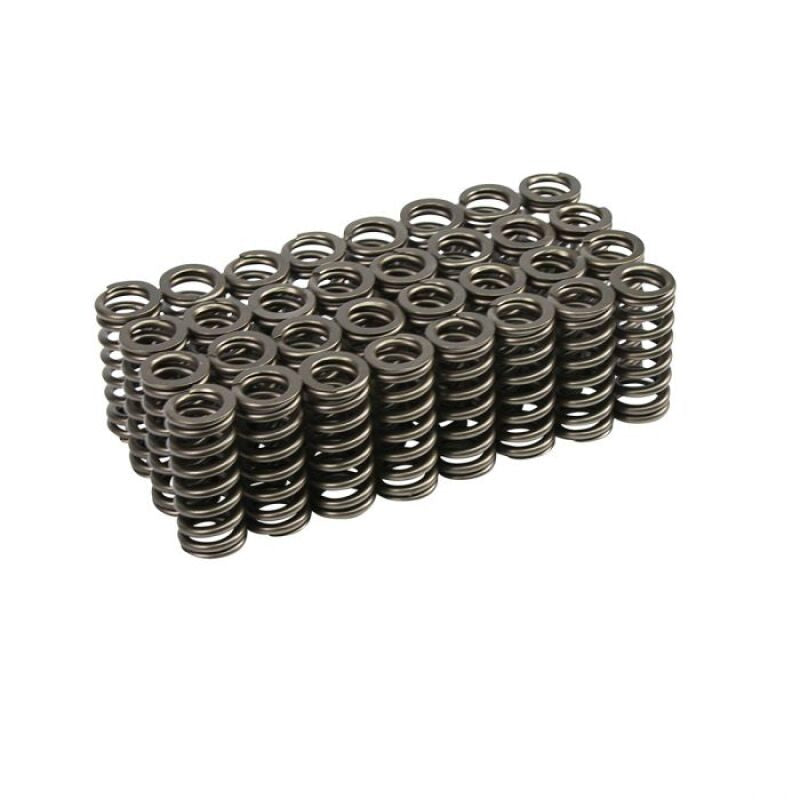

Set of 32 Valve Springs for Powerstroke 6.0/6.4

.515" Lift valve springs for Ford 6.0L/6.4L Power Stroke engines withstand higher RPM and boost pressures than factory valve springs.

COMP Cams engineered the #26124 valve springs to have increased spring rate, as well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stresses, create additional dynamic control and help valve train reliability at elevated RPM and boost pressures. Springs are also available in single units (Part #26124-1) or as a kit with the valve Seals and shims (Part #26124-Kit).

Number of Springs: Single
Top Outside Diameter: 1.01
Top Inside Diameter: 0.647
Bottom Outside Diameter: 1.01
Bottom Inside Diameter: 0.647
Coil Bind Height: 1.19
Installed Height: 1.77
Seat Pressure: 140
Open Load: 300
Spring Rate: 320
Compatible Shims: 4809
Compatible Spring Seat / Seals: P/N 535
Compatible Retainers: -
Damper: -
Valve Spring Series: -
Spring Style: Straight
