COMP Cams - 26120-16

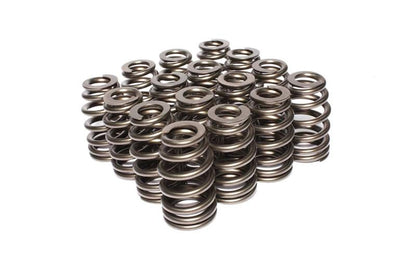

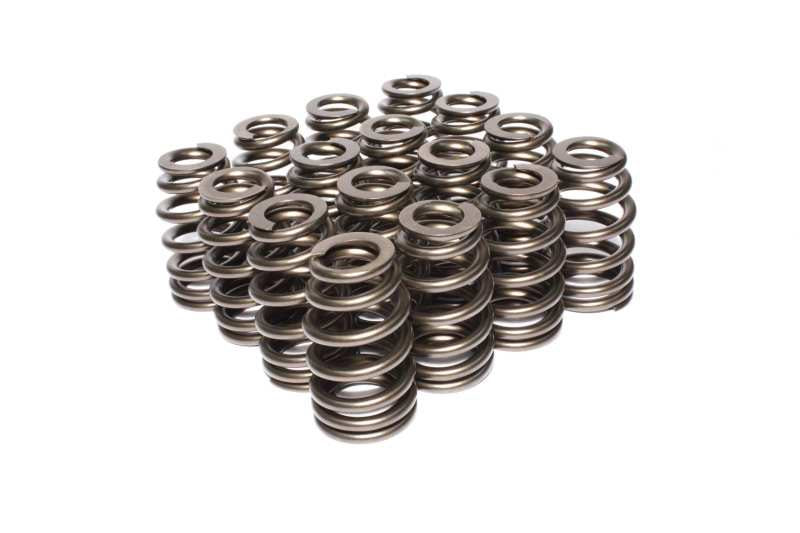

Valve Spring - Beehive Spring - 370 lb/in Spring Rate - 1.230 in Coil Bind - 1.059 in / 1.444 in OD - Set of 16
Seat Pressure: 155
Compatible Spring Cup (O.D. Locator): 4698-16
Outer Top Spring Outside Diameter: 1.059
Outer Top Spring Inside Diameter: 0.65
Outer Bottom Spring Outside Diameter: 1.444
Outer Bottom Spring Inside Diameter: 1
Number of Springs: 1
Damper: No
Compatible Shims: 4754
Spring Rate: 370
Compatible Retainer: 795-16
Compatible .630" Guide Diameter Spring Seats: 4697-16
Compatible .570" Guide Diameter Spring Seats: 4696-16
Coil Bind Height: 1.23
Valve Spring Series: Race/Street
Seat Height: 1.88
Amazon ASIN: B0014F6FX6
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
