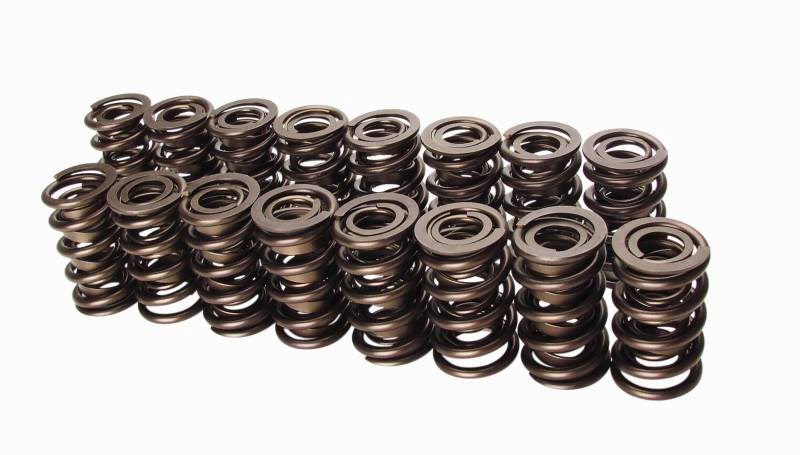

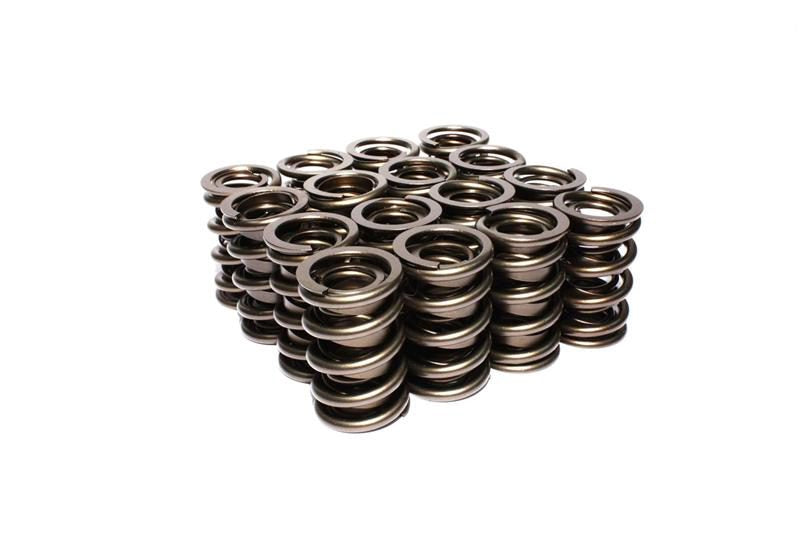

COMP Cams - 26115-16
Valve Spring - Elite Race - Dual Spring / Damper - 544 lb/in Spring Rate - 1.165 in Coil Bind - 1.560 in OD - Set of 16
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Number of Springs: 2
Spring Rate: 544
Seat Pressure: 225
Seat Height: 2.05
Outer Spring Outside Diameter: 1.56
Outer Spring Inside Diameter: 1.114
Inner Spring Inside Diameter: 0.709
Coil Bind Height: 1.165
Damper: Yes
Compatible Spring Cup (O.D. Locator): 4700-16
Compatible Shims: 4757
Compatible Retainer: 748-16
Compatible .630" Guide Diameter Spring Seats: 4782-16
Compatible .570" Guide Diameter Spring Seats: 4781-16
Valve Spring Series: Race Endurance
Amazon ASIN: B0014F35NO
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
