COMP Cams 26113CY-KIT - Ford 5.0L Coyote Valve Spring Kit O.D. .959in

COMP Cams 26113CY-KIT - Ford 5.0L Coyote Valve Spring Kit O.D. .959in

COMP Cams | 26113CY-KIT
SKU: COMP-26113CY-KIT
$762.99 USD
$839.29 USD $762.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 26113CY-KIT - Ford 5.0L Coyote Valve Spring Kit O.D. .959in

Coyote Beehive Spring Kit w/ Chromemoly Steel Retainers, .510" Max Lift

Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes properly matched retainers, seals and seats.

Ford Coyote and Boss 5.0L engines

Max Lift Seat Load Open Load Rate Coil Bind Outer Diameter Inner Diameter
.550" 93 lbs @ 1.57" 198 lbs @ 1.02" 191lbs/in .952" Top .959" / Bottom 1.061" Top .636" / Bottom .738"

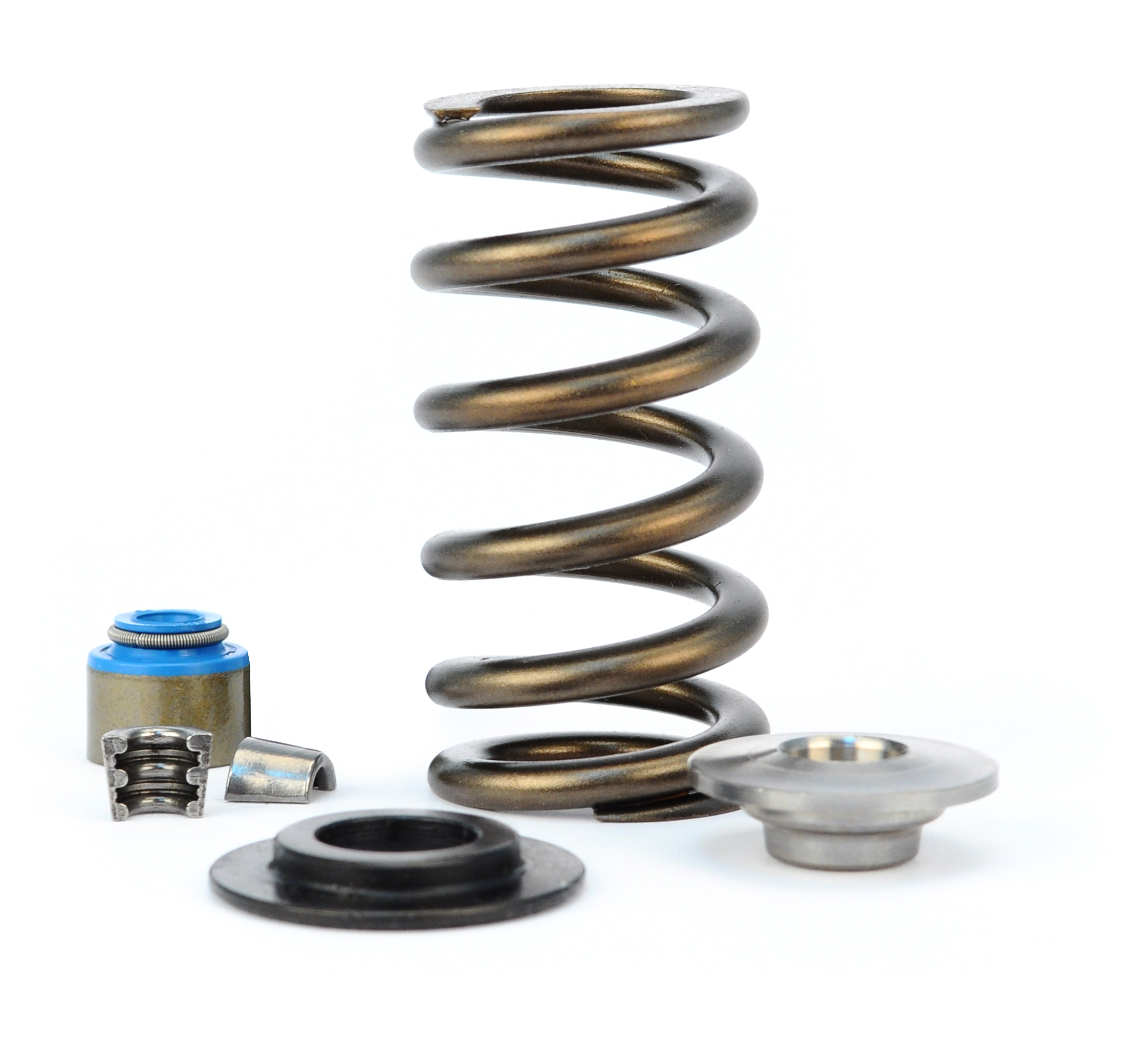

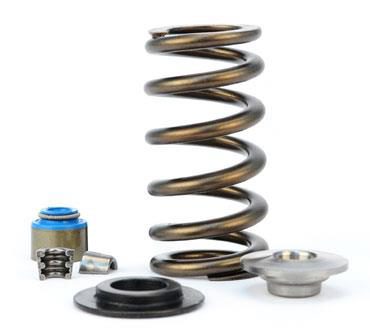

Please note the above image does not show full spring kit.
  • Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
  • Create higher load
  • higher RPM and more lift capacity than stock.
  • Increased valve control at high RPM.
  • .510" Maximum Lift
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
