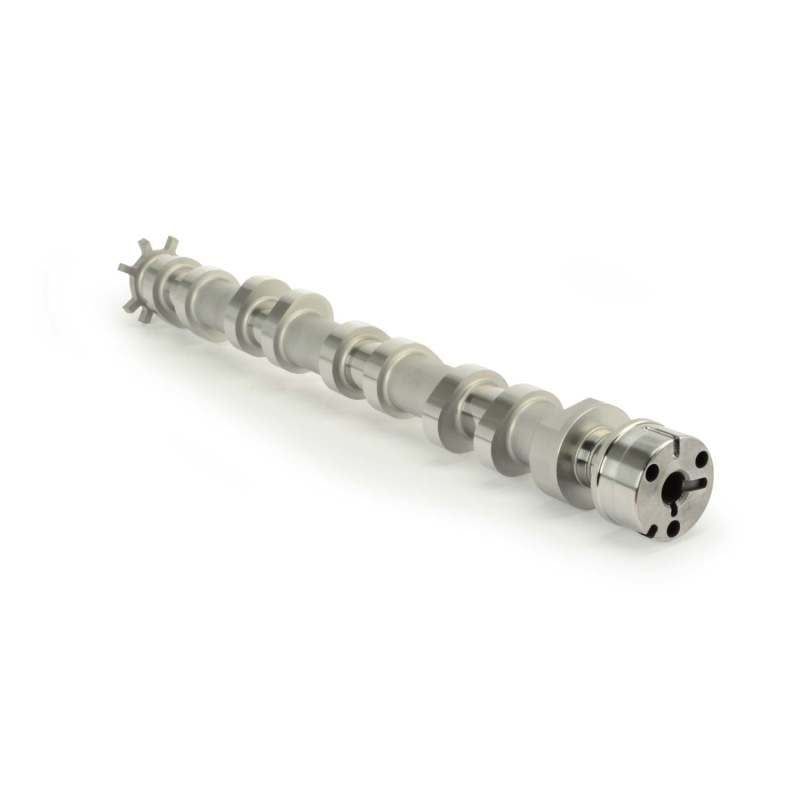

COMP Cams 243420 - 2015+ Ford Mustang Coyote CR Series Camshaft 1500-6900

COMP Cams 243420 - 2015+ Ford Mustang Coyote CR Series Camshaft 1500-6900

COMP Cams | 243420
SKU: COMP-243420
$2,197.99 USD
$2,417.79 USD $2,197.99 USD
Sale Sold out
Shipping calculated at checkout.

37 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 243420 - 2015+ Ford Mustang Coyote CR Series Camshaft 1500-6900

CR NSR 227/229 Hydraulic Roller Cams for ('15+) Ford 5.0L Coyote

Great upgrade over stock while taking advantage of the improved ports and higher lift capacity of the 2015+ head.

The new CR Cam Series from COMP Cams is designed to greatly improve upon stock 2015 Coyote Camshafts and work without modifications to the engine's cylinder heads or phasers. COMP Cams 2015 Ford Mustang Coyote CR Series Camshafts are the first new Cam and core Series for 2015 and later Coyote engines. New lobes improve upon the 2011-2014 XFI Camshaft Series and feature faster ramps, more lift and more area under the lift curve. The cams work with stock 2015 valve springs and the new Ford mid-lock phaser system without requiring limiters or any other phaser modifications. Three grinds are available for naturally aspirated engines with two designed specifically for blower Applications.

C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: F5.0F CYR263NAH 127
Camshaft Series: CR NSR (No Sprngs Required)
Cam Type: Hydraulic Roller Finger Follower
Grind Number: F5.0F CYR263NAH 127
Basic Operating RPM Range: 1,600-7,000
Intake Duration at .050 Inch Lift: 227
Exhaust Duration at .050 inch Lift: 229
Advertised Intake Duration: 263
Advertised Exhaust Duration: 270
Lobe Separation: 127
Intake Valve Lift: 0.516
Exhaust Valve Lift: 0.514
Lifters Included: No
Valve Springs Required: No
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller Finger Follower
Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2015+)
Amazon ASIN: B01LY2NS2I
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
