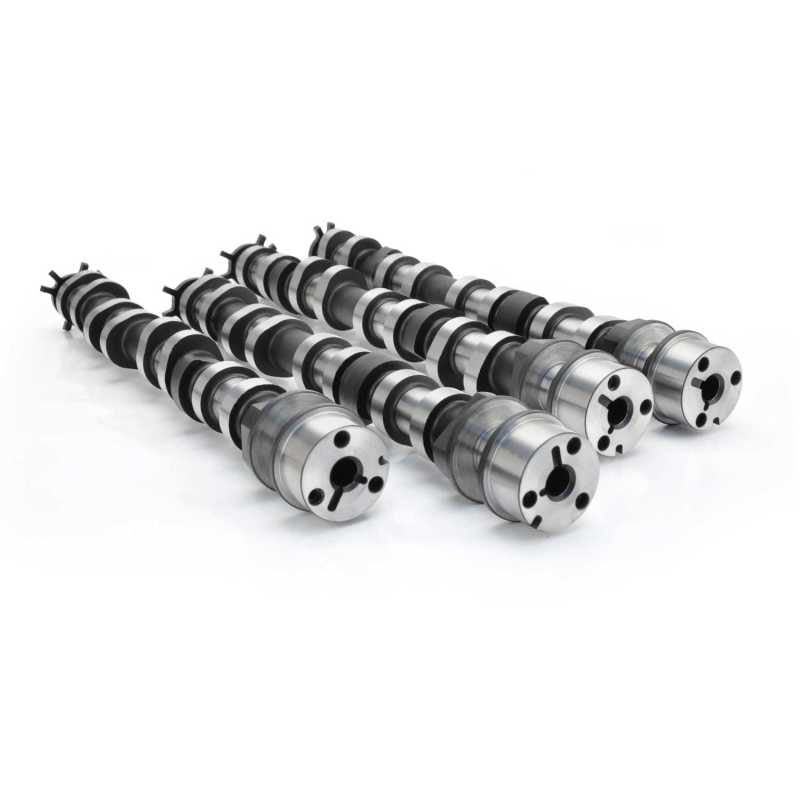

COMP Cams 191620 - 11-14 Ford 5.0L Coyote Camshaft Set CR 227/229
COMP Cams 191620 - 11-14 Ford 5.0L Coyote Camshaft Set CR 227/229
SKU: COMP-191620
Regular price
$2,134.95 USD
Regular price
$2,348.44 USD
Sale price
$2,134.95 USD
Shipping calculated at checkout.
23 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 191620 - 11-14 Ford 5.0L Coyote Camshaft Set CR 227/229
CR 227/229 Hydraulic Roller Cams for ('11-'14) Ford 5.0L Coyote
Great upgrade over stock, Ford Boss and older NSR camshafts. Requires Spring Kit (unless using Boss heads).
they are designed for Ford Mustang firing order. To use on F-150, the firing order must be updated from 1-5-4-2-6-3-7-8 to the Mustang Firing order 1-3-7-2-6-5-4-8.
Camshaft Series: CR (Springs Required)
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: F5.0D CYR263H-123
Basic Operating RPM Range: 1,600-7,000
Intake Duration at .050 Inch Lift: 227
Exhaust Duration at .050 inch Lift: 229
Advertised Intake Duration: 263
Advertised Exhaust Duration: 270
Lobe Separation: 123
Intake Valve Lift: 0.516
Exhaust Valve Lift: 0.514
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller Swinging Follower
Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2011+)
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: F5.0D CYR263H-123
