COMP Cams - 191160

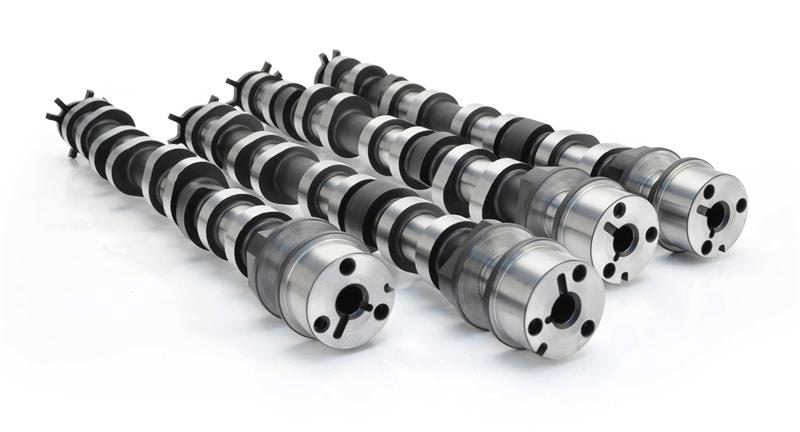

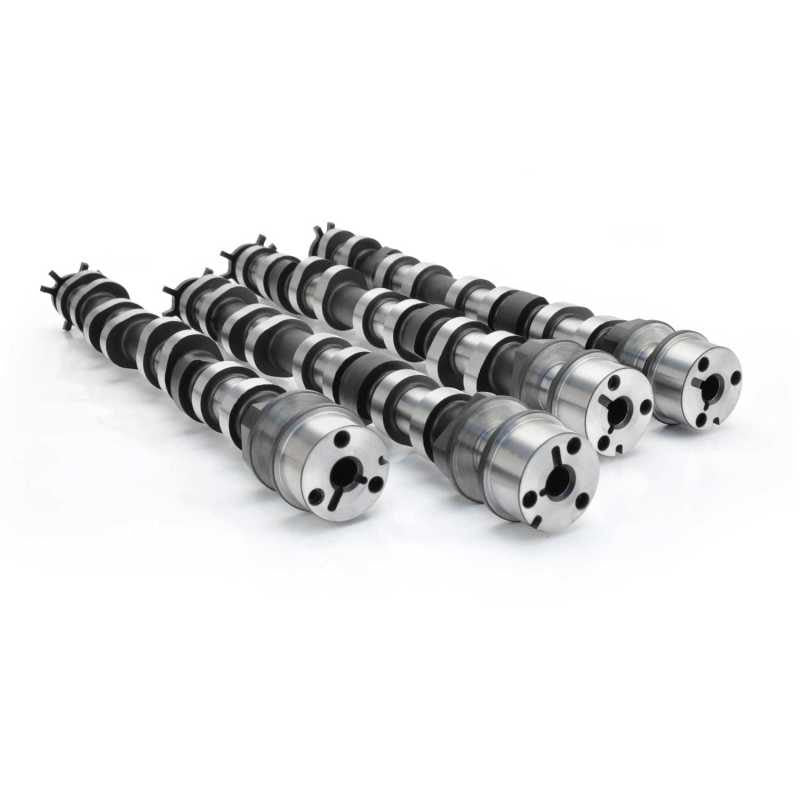

Camshaft - XFI NSR - Hydraulic Roller - Lift 0.492 / 0.453 in - Duration 276 / 283 - 126 LSA - 1900 / 7200 RPM - Ford Coyote - Set of 4
Max effort street/strip cam set. Strong power gains above 5500-7200+. Full length headers and 3.73+ gear. Requires phaser limiter kit and custom ECU programming.
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2011+)
Lifter Type: Hydraulic Roller Finger Follower
Amazon ASIN: B004RUZK86
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Camshaft Series: XFI NSR (No Springs Required)
Cam Type: Hydraulic Roller Finger Follower
Grind Number: F5.0D NSR-NA3H-126
Basic Operating RPM Range: 1,900-7,200
Intake Duration at .050 Inch Lift: 236
Exhaust Duration at .050 inch Lift: 239
Advertised Intake Duration: 276
Advertised Exhaust Duration: 283
Lobe Separation: 126
Intake Valve Lift: 0.492
Exhaust Valve Lift: 0.453
Lifters Included: No
Valve Springs Required: No
Assembly Lubricant Included: No
