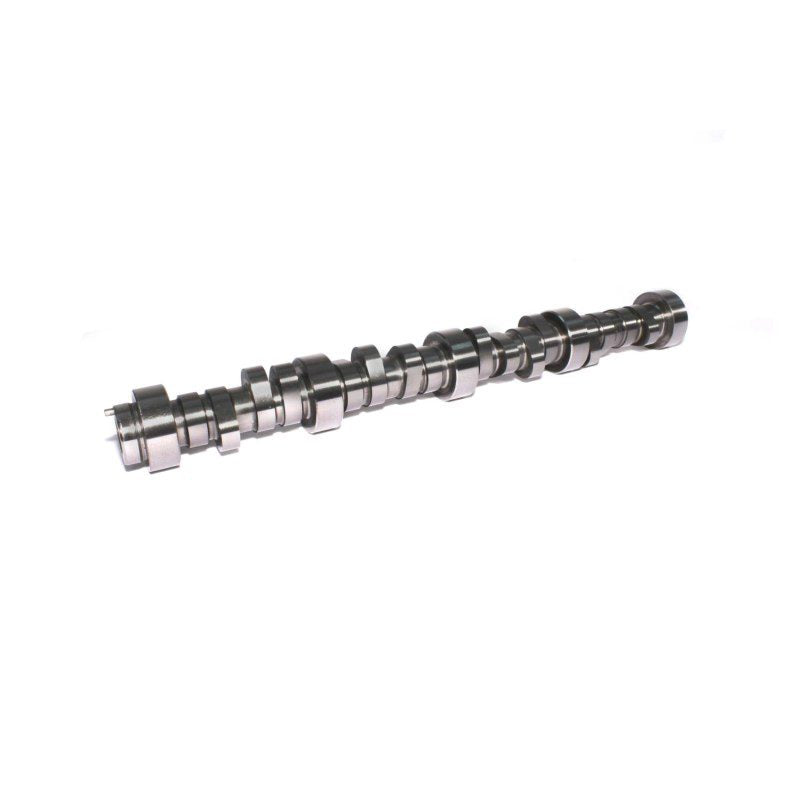

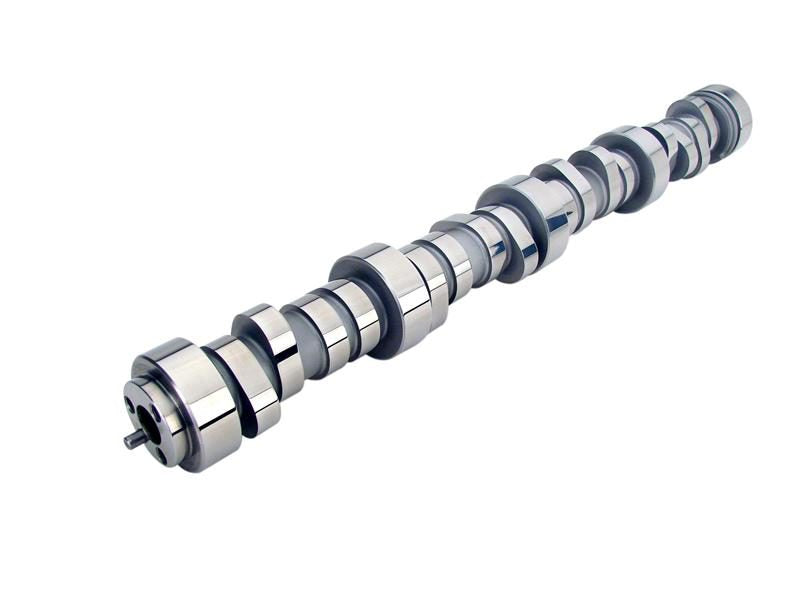

COMP Cams 146-480-11 - Camshaft GM LS2/LS3 1 Bolt 27

COMP Cams 146-480-11 - Camshaft GM LS2/LS3 1 Bolt 27

COMP Cams | 146-480-11
SKU: COMP-146-480-11
$515.95 USD
$567.54 USD $515.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 146-480-11 - Camshaft GM LS2/LS3 1 Bolt 27

LSR Remote Turbo 227/223 Hydraulic Roller Cam for GM LS GEN IV w/o VVT or AFM

Good responsiveness and excellent power when used with a remote mount turbo system.

Intake Duration at .050 Inch Lift: 227
Exhaust Duration at .050 inch Lift: 223
Advertised Intake Duration: 277
Advertised Exhaust Duration: 273
Lobe Separation: 115
Intake Valve Lift: 0.614
Exhaust Valve Lift: 0.61
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller
Engine Family: GM LS2/LS3 GEN IV Single-Bolt w/o VVT and AFM 8 Cylinder (2007-2015)
Amazon ASIN: B0046ZJ9B6
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 277LTB HR15
Camshaft Series: LSR Turbo Remote Mount
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: 277LTB HR15
Basic Operating RPM Range: 2,200-7,000
