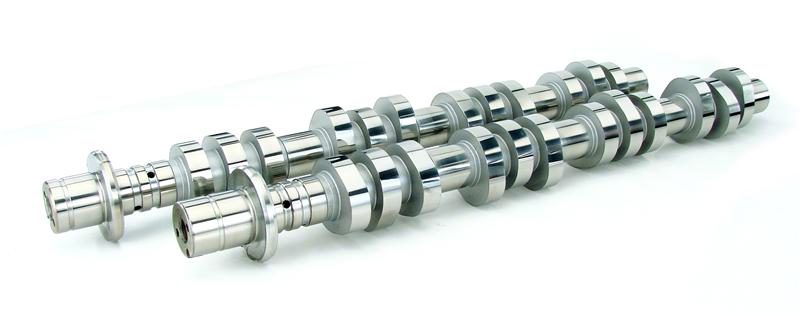

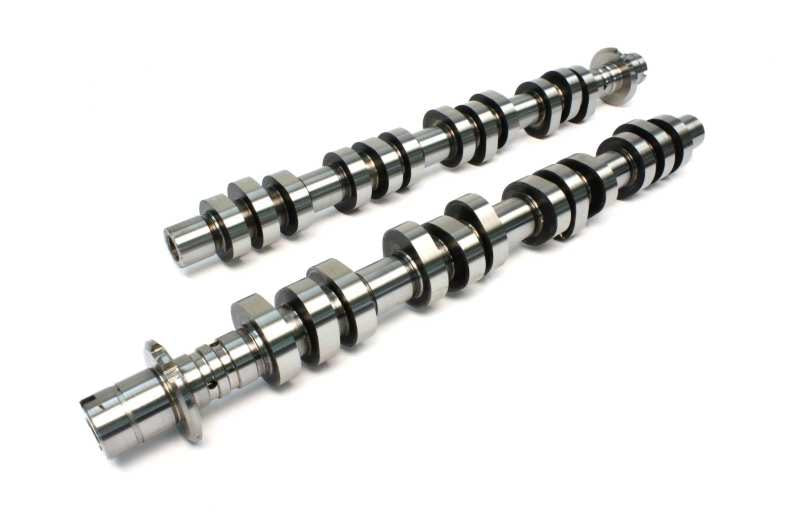

COMP Cams 127500 - Camshaft Set F4.6 3V XE264Ph

COMP Cams 127500 - Camshaft Set F4.6 3V XE264Ph

COMP Cams | 127500
SKU: COMP-127500
$1,080.95 USD
$1,189.04 USD $1,080.95 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 127500 - Camshaft Set F4.6 3V XE264Ph

XFI SPR 229/236 Hydraulic Roller Cams for Ford 4.6/5.4L Modular 3 Valve

Powerful cam with very rough idle, biggest cam to use with stock heads. Good midrange torque with incredible top end hp gains. Solid power above 4700 RPM. Spring/phaser upgrade and custom tuning required. 3.90+ gears and 3000+ stall.

XFI Spring and Phaser Mods Required 229/236 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4L Modular 3V. Powerful Cam with very rough idle, Biggest Cam to use with stock heads. Good mid-range torque with incredible top end HP gains. Solid power above 4700 RPM, spring and phaser upgrade required. 3.90+ Gears and 3000+ Stall.

Advertised Intake Duration: 264
Advertised Exhaust Duration: 275
Lobe Separation: 112
Intake Valve Lift: 0.535
Exhaust Valve Lift: 0.55
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L and 5.4L SOHC Modular 3 Valve 8 Cylinder (2004+)
Lifter Type: Hydraulic Roller Swinging Follower
Amazon ASIN: B001O0FSBQ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE264PH-12
Camshaft Series: XFI SPR (Spring and Phaser Modes Required)
Usage: Street/Strip
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: XE264PH-12
Basic Operating RPM Range: 950-6,900
Intake Duration at .050 Inch Lift: 229
Exhaust Duration at .050 inch Lift: 236
