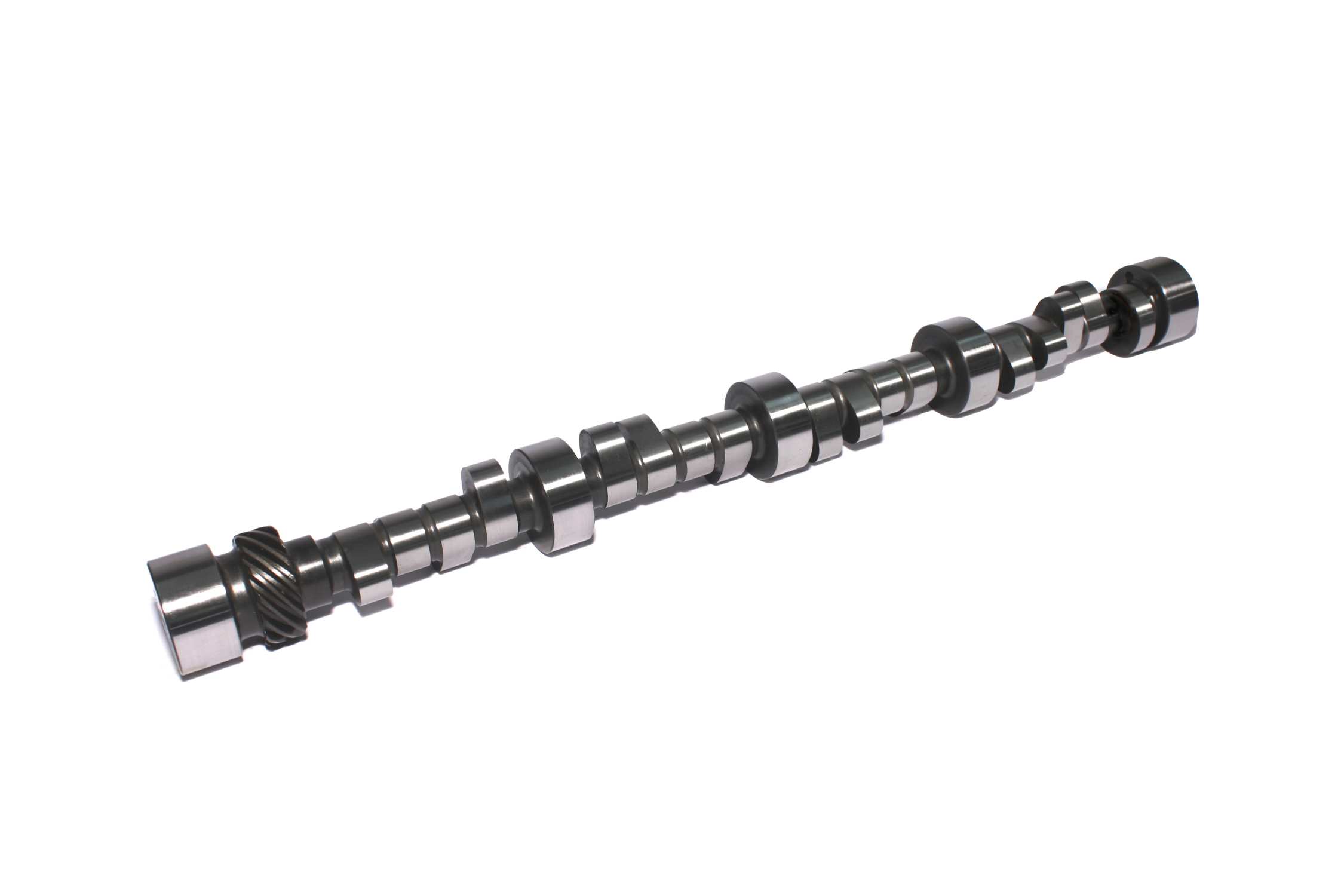

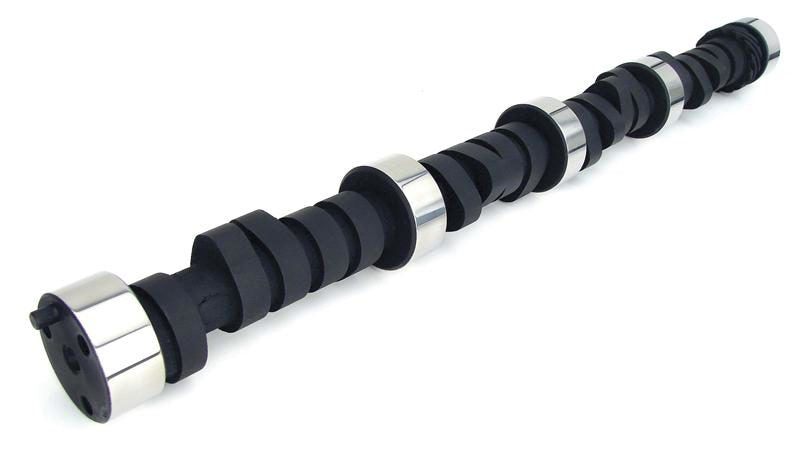

COMP Cams 12-902-9 - Camshaft CS 296A-R6

COMP Cams 12-902-9 - Camshaft CS 296A-R6

COMP Cams | 12-902-9
SKU: COMP-12-902-9
$585.99 USD
$644.59 USD $585.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

COMP Cams 12-902-9 - Camshaft CS 296A-R6

Camshaft - Oval Track - Mechanical Roller - Lift 0.630 / 0.630 in - Duration 296 / 300 - 106 LSA - 3600 / 6600 RPM - Small Block Chevy - Each

Good torque and throttle response w/ 355 engine on short track.

SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.

Camshaft Series: Oval Track
Usage: Strip
Cam Type: Solid Roller
Grind Number: 296AR-6
Basic Operating RPM Range: 3,600-6,600
Intake Duration at .050 Inch Lift: 260
Exhaust Duration at .050 inch Lift: 262
Advertised Intake Duration: 296
Advertised Exhaust Duration: 300
Lobe Separation: 106
Intake Valve Lift: 0.63
Exhaust Valve Lift: 0.63
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Solid Roller
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Amazon ASIN: B001O0BRQG
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 296AR-6
