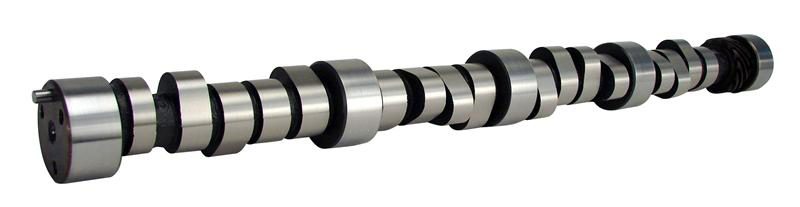

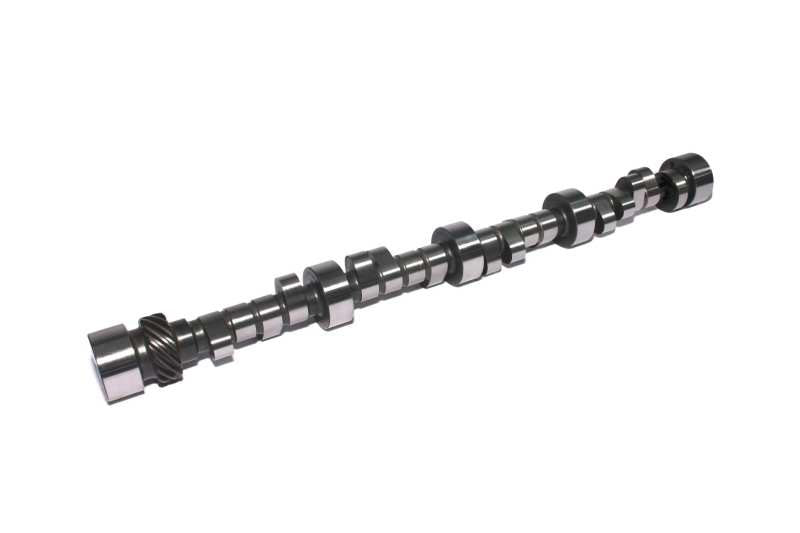

COMP Cams 12-814-9 - Camshaft CS 314Ce-R14
COMP Cams 12-814-9 - Camshaft CS 314Ce-R14
SKU: COMP-12-814-9
Regular price
$590.99 USD
Regular price
$650.09 USD
Sale price
$590.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 12-814-9 - Camshaft CS 314Ce-R14
Drag Race 278/294 Solid Roller Cam for Chevrolet Small Block
Small cubic inch high RPM with 1.7 and 1.6.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.
Amazon ASIN: B001G7IYTA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 314CER-14
Camshaft Series: Drag Race
Usage: Drag Race
Cam Type: Solid Roller
Grind Number: 314CER-14
Basic Operating RPM Range: 6,000-10,000
Intake Duration at .050 Inch Lift: 278
Exhaust Duration at .050 inch Lift: 294
Advertised Intake Duration: 314
Advertised Exhaust Duration: 335
Lobe Separation: 114
Intake Valve Lift: 0.824
Exhaust Valve Lift: 0.739
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Solid Roller
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
