COMP Cams 12-657-5 - Camshaft CS 286Xo-6

COMP Cams 12-657-5 - Camshaft CS 286Xo-6

COMP Cams | 12-657-5
SKU: COMP-12-657-5
$336.99 USD
$370.69 USD $336.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

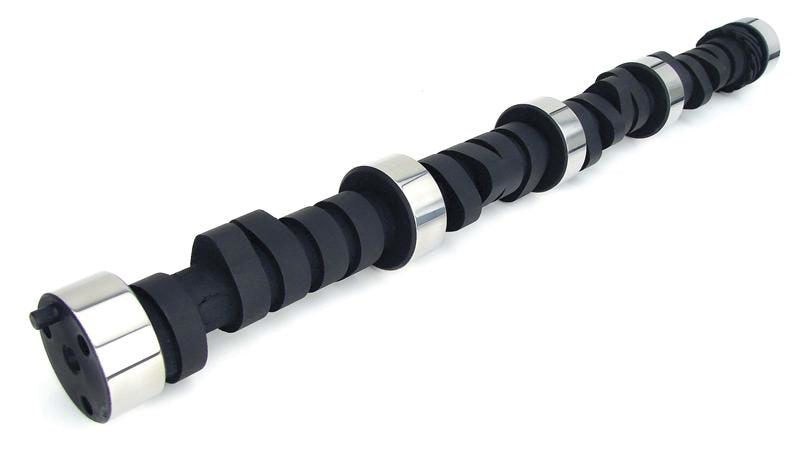

COMP Cams 12-657-5 - Camshaft CS 286Xo-6

Oval Track 256/262 Solid Flat Cam for Chevrolet Small Block

1/4-3/8 fast. 327-358c.i., 12:1+ compression. 4 BBL with good intake and exhaust.

SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Xtreme Oval
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 286XO-6
Basic Operating RPM Range: 3,200-6,900
Intake Duration at .050 Inch Lift: 256
Exhaust Duration at .050 inch Lift: 262
Advertised Intake Duration: 286
Advertised Exhaust Duration: 296
Lobe Separation: 106
Intake Valve Lift: 0.549
Exhaust Valve Lift: 0.543
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000P5D8FY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 286XO-6
