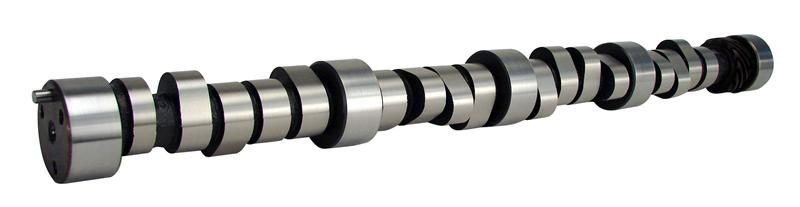

COMP Cams 12-519-5 - Camshaft CS 304TLS-6
COMP Cams 12-519-5 - Camshaft CS 304TLS-6
SKU: COMP-12-519-5
Regular price
$331.99 USD
Regular price
$365.19 USD
Sale price
$331.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability
COMP Cams 12-519-5 - Camshaft CS 304TLS-6
Camshaft - Drag Race - Mechanical Flat Tappet - Lift 0.590 / 0.610 in - Duration 304 / 312 - 106 LSA - 5000 / 7700 RPM - Small Block Chevy - Each
Use in unrestricted 400-410 engines with good heads and intake on big tracks. 350-400, 12:1 compression, 5000+ stall.
SBC - 1955-57 models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.
Exhaust Valve Lift: 0.61
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000R9VIHI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 304TLS-6
Camshaft Series: Tight Lash
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 304TLS-6
Basic Operating RPM Range: 5,000-7,700
Intake Duration at .050 Inch Lift: 274
Exhaust Duration at .050 inch Lift: 282
Advertised Intake Duration: 304
Advertised Exhaust Duration: 312
Lobe Separation: 106
Intake Valve Lift: 0.59
