COMP Cams 12-517-20 - Nitrided Camshaft CS 296TLS-6
COMP Cams 12-517-20 - Nitrided Camshaft CS 296TLS-6
SKU: COMP-12-517-20
Regular price
$406.95 USD
Regular price
$447.64 USD
Sale price
$406.95 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
COMP Cams 12-517-20 - Nitrided Camshaft CS 296TLS-6

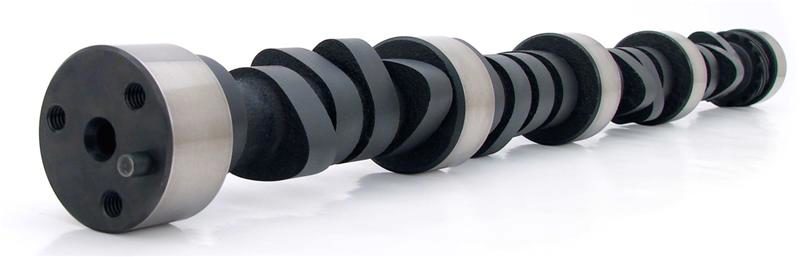

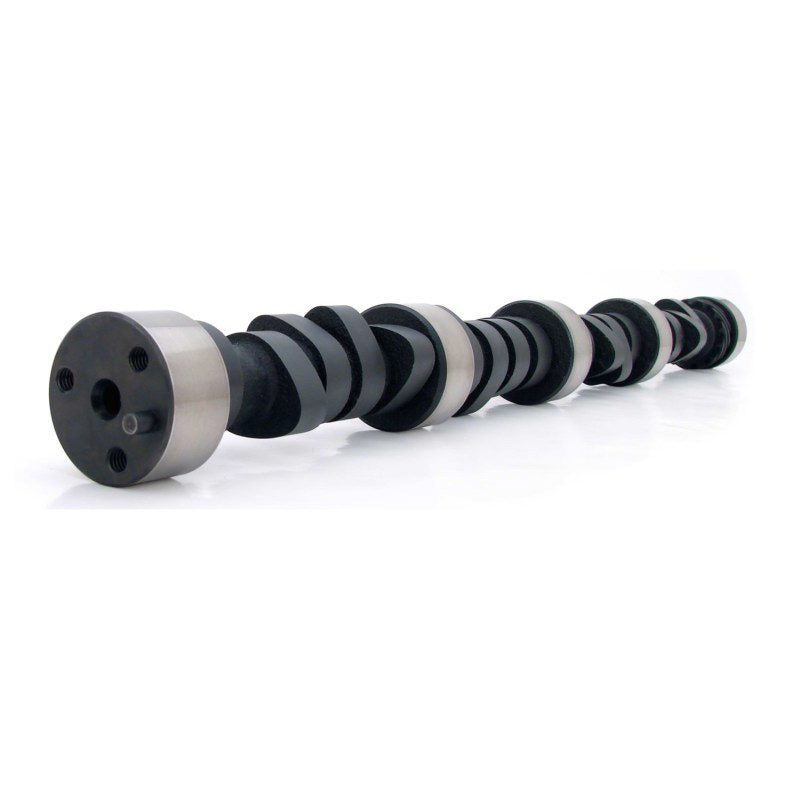

Drag Race/Tight Lash NIT 266/274 Solid Flat Cam for Chevrolet Small Block
350-400, 12:1 compression, 4800+ stall. Nitrided. For big tracks with unrestricted 377-410 engines. Best with good heads and intake. Nitrided.
Drag Race/Tight Lash NIT 266/274 Solid Flat Cam for Chevrolet Small Block
Intake Valve Lift: 0.57
Exhaust Valve Lift: 0.59
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Nitrided Cast Iron
Lifter Type: Solid Flat Tappet
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Amazon ASIN: B002EDX6AW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 296TLS-6
Camshaft Series: Tight Lash
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 296TLS-6
Basic Operating RPM Range: 3500-7,500
Intake Duration at .050 Inch Lift: 259
Exhaust Duration at .050 inch Lift: 266
Advertised Intake Duration: 296
Advertised Exhaust Duration: 304
Lobe Separation: 106
