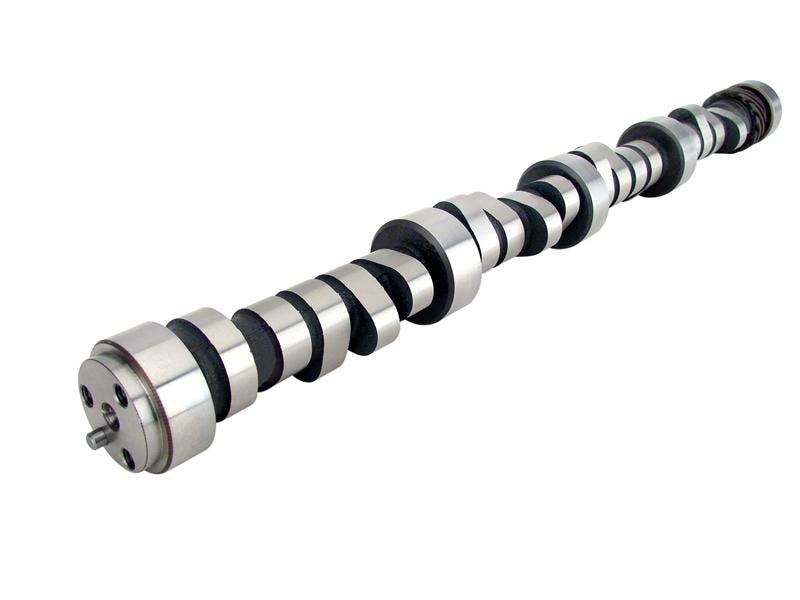

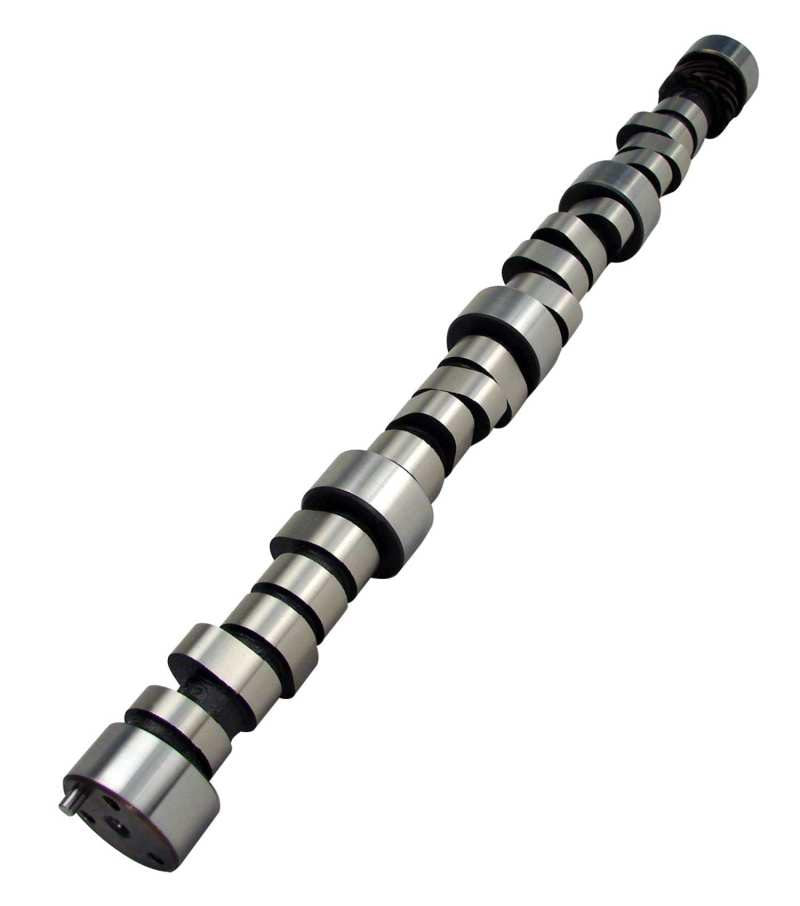

Camshaft - Xtreme Energy - Hydraulic Roller - Lift 0.540 / 0.562 in - Duration 294 / 300 - 110 LSA - 2800 / 6100 RPM - Small Block Chevy - Each
Street/strip applications, 9.5:1 compression, intake, headers, 3000+ stall, gears. Rough idle.
Xtreme Energy 242/248 Hydraulic Roller Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles.
Grind Number: XR294HR
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: XR294HR
Basic Operating RPM Range: 2,800-6,100
Intake Duration at .050 Inch Lift: 242
Exhaust Duration at .050 inch Lift: 248
Advertised Intake Duration: 294
Advertised Exhaust Duration: 300
Lobe Separation: 110
Intake Valve Lift: 0.54
Exhaust Valve Lift: 0.562
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade: CL12-443-8
K-Kit Upgrade: K12-443-8
Lifter Type: Hydraulic Roller
SK-Kit Upgrade: SK12-443-8
Amazon ASIN: B000CEQDFA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
