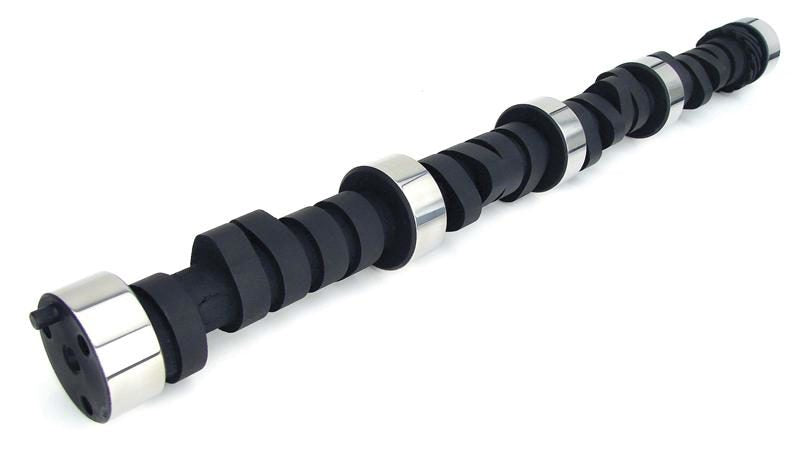

COMP Cams 12-344-5 - Camshaft CS 296Ch-6

COMP Cams 12-344-5 - Camshaft CS 296Ch-6

COMP Cams | 12-344-5
SKU: COMP-12-344-5
$331.99 USD
$365.19 USD $331.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

COMP Cams 12-344-5 - Camshaft CS 296Ch-6

Camshaft - Oval Track - Hydraulic Flat Tappet - Lift 0.510 / 0.525 in - Duration 296 / 305 - 106 LSA - 3700 / 6500 RPM - Small Block Chevy - Each

Fits '58-'02 262-400 c.i.d. Chevy Small Blocks

  • Good for 3/8 to 1/2 mile track - 350 or larger engine
    • 1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If a Roller Cam is desired and your block has OEM-style Roller Cam provisions. COMP Hydraulic Roller Lifter Install Kit for '87-'90 Blocks or '91-'02 Blocks can be purchased, as well as a '87+ OE-Style Hydraulic Roller Cam.
    Camshaft Series: Oval Track
    Usage: Strip
    Cam Type: Hydraulic Flat Tappet
    Grind Number: 296CH-6
    Basic Operating RPM Range: 3700-6,500
    Intake Duration at .050 Inch Lift: 246
    Exhaust Duration at .050 inch Lift: 253
    Advertised Intake Duration: 296
    Advertised Exhaust Duration: 305
    Lobe Separation: 106
    Intake Valve Lift: 0.51
    Exhaust Valve Lift: 0.525
    Lifters Included: No
    Valve Springs Required: Yes
    Assembly Lubricant Included: Yes
    Camshaft Gear Attachment: 3-Bolt
    Camshaft Material: Cast Iron
    Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
    Lifter Type: Hydraulic Flat Tappet
    Amazon ASIN: B000V9ET2K
    C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
    C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
    C.A.R.B. Exempt for On-Road Vehicles?: No
    C.A.R.B. Exemption Reason: N/A
    C.A.R.B. E.O. Number: N/A
    Grind Number: 296CH-6
