COMP Cams 12-249-4 - Camshaft CS XE249H-12

COMP Cams 12-249-4 - Camshaft CS XE249H-12

COMP Cams | 12-249-4
SKU: COMP-12-249-4
$316.99 USD
$348.69 USD $316.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

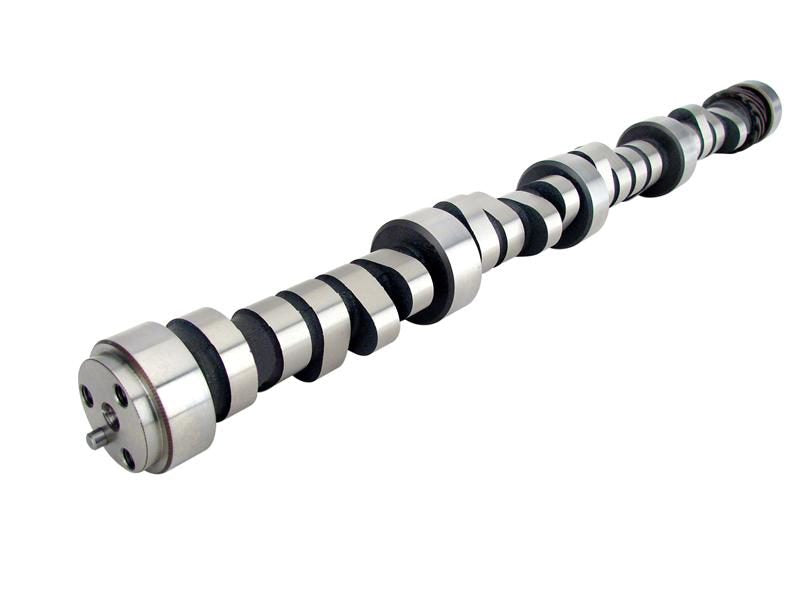

COMP Cams 12-249-4 - Camshaft CS XE249H-12

Camshaft - Xtreme Energy - Hydraulic Flat Tappet - Lift 0.434 / 0.444 in - Duration 249 / 260 - 112 LSA - 1000 / 5000 RPM - Small Block Chevy - Each

Great in throttle body, crossfire or carbureted engine and 305 TPI.

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Camshaft Series: Xtreme Energy Computer Controlled
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE249H
Basic Operating RPM Range: 1,000-5,000
Intake Duration at .050 Inch Lift: 206
Exhaust Duration at .050 inch Lift: 212
Advertised Intake Duration: 249
Advertised Exhaust Duration: 260
Lobe Separation: 112
Intake Valve Lift: 0.434
Exhaust Valve Lift: 0.444
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade: CL12-249-4
K-Kit Upgrade: K12-249-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK12-249-4
Amazon ASIN: B000CIUAB4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE249H
