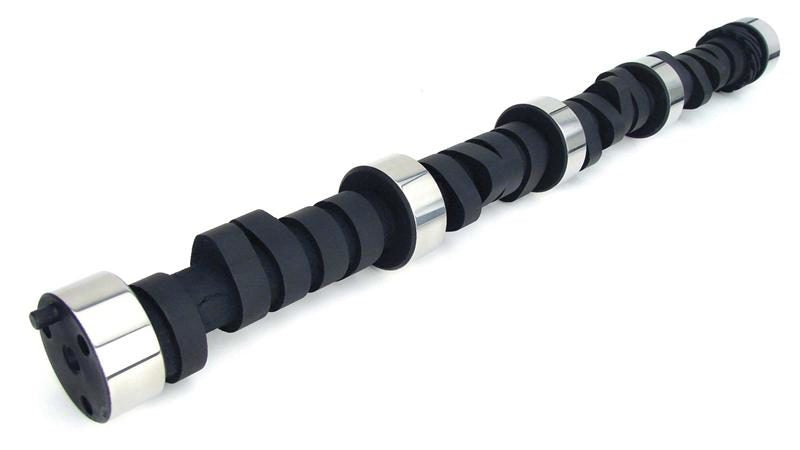

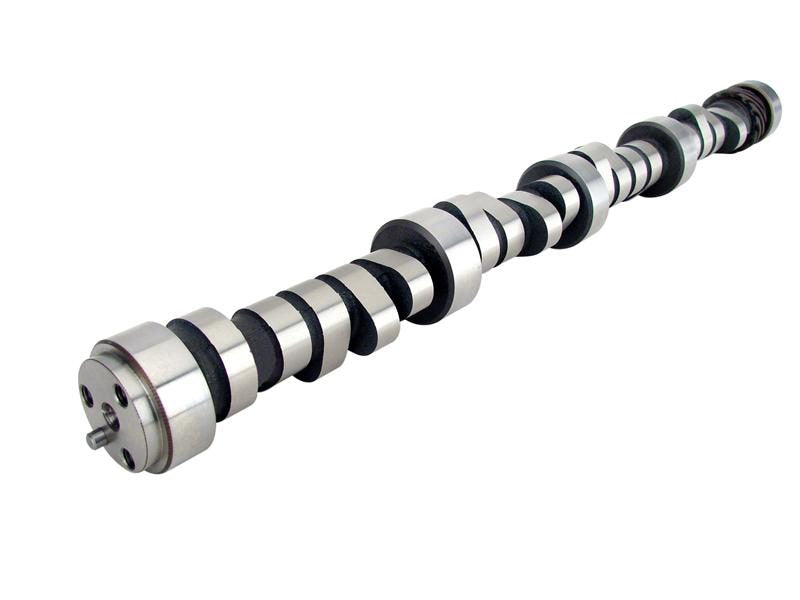

COMP Cams 12-238-2 - Camshaft CS XE262H-10

COMP Cams 12-238-2 - Camshaft CS XE262H-10

COMP Cams | 12-238-2
SKU: COMP-12-238-2
$293.95 USD
$323.34 USD $293.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 12-238-2 - Camshaft CS XE262H-10

Camshaft - Xtreme Energy - Hydraulic Flat Tappet - Lift 0.462 / 0.469 in - Duration 262 / 270 - 110 LSA - 1300 / 5600 RPM - Small Block Chevy - Each

Excellent response, good mid-range, noticeable idle.

excellent all around performance in street carbureted applications.Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Dyno Results Camshaft Part #12-238-2 Grind #XE262H-10 Duration @ 0.006": 262 / 270deg. Duration @ 0.050": 218 / 224deg. Max Lift w/ 1.5RR: .462" / .469". Lobe Separation: 110deg. Lobe ID#'s: 5442 / 5201. Intake Centerline: 106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040". Stroke: 3.480". Displacement: 356ci. Compression: 9.25:1 Heads: Dart S/R. Edelbrock Performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 415 ft lbs @ 3700 RPM. Max Power: 348 HP @ 5300 RPM. Manifold Vacuum: 17.5" Hg @ 800 RPM & 18.5" Hg @ 1000 RPM w/ no load.

Cam and Lifter Kit Upgrade: CL12-238-2
K-Kit Upgrade: K12-238-2
Lifter Type: Hydraulic Flat Tappet
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Camshaft Material: Cast Iron
Camshaft Gear Attachment: 3-Bolt
SK-Kit Upgrade: SK12-238-2
Amazon ASIN: B000CIS6B0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE262H
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE262H
Basic Operating RPM Range: 1,300-5,600
Intake Duration at .050 Inch Lift: 218
Exhaust Duration at .050 inch Lift: 224
Advertised Intake Duration: 262
Advertised Exhaust Duration: 270
Lobe Separation: 110
Intake Valve Lift: 0.462
Exhaust Valve Lift: 0.469
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
