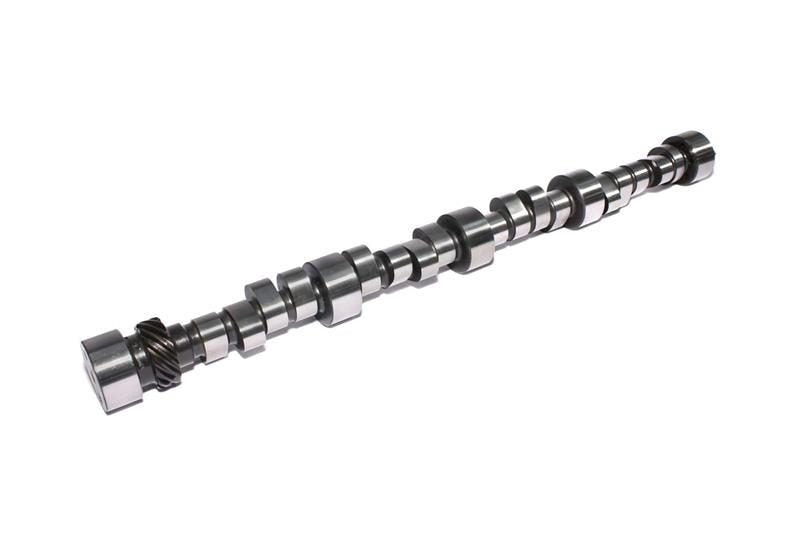

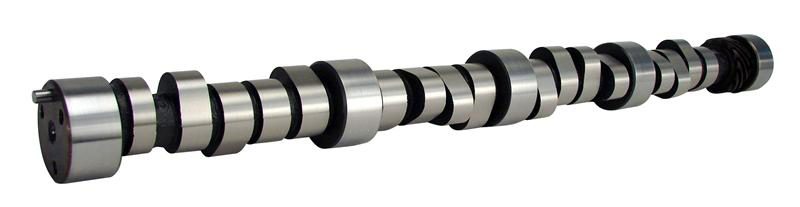

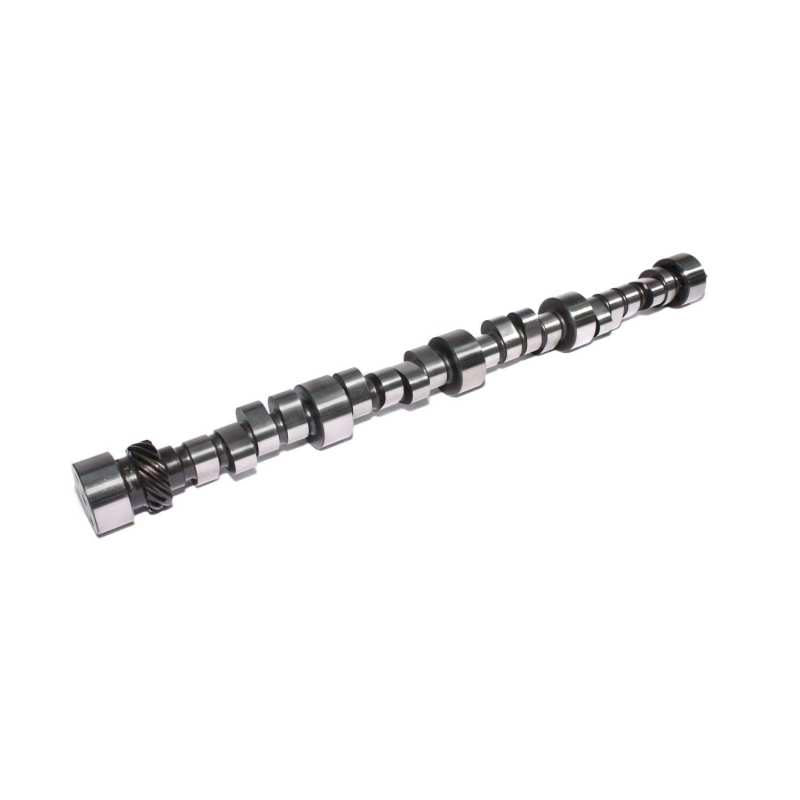

COMP Cams 11-743-9 - Camshaft CB 322Rxh-18

COMP Cams 11-743-9 - Camshaft CB 322Rxh-18

COMP Cams | 11-743-9
SKU: COMP-11-743-9
$590.99 USD
$650.09 USD $590.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 11-743-9 - Camshaft CB 322Rxh-18

Drag Race 292/320 Solid Roller Cam for Chevrolet Big Block 396-454

Pro Mod and Mountain motor applications.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Drag Race Xtreme RX
Usage: Strip
Cam Type: Solid Roller
Grind Number: 322RXH-18
Basic Operating RPM Range: 4,800-8500
Intake Duration at .050 Inch Lift: 292
Exhaust Duration at .050 inch Lift: 320
Advertised Intake Duration: 322
Advertised Exhaust Duration: 360
Lobe Separation: 118
Intake Valve Lift: 0.878
Exhaust Valve Lift: 0.867
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Solid Roller
Amazon ASIN: B000P5933U
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 322RXH-18
