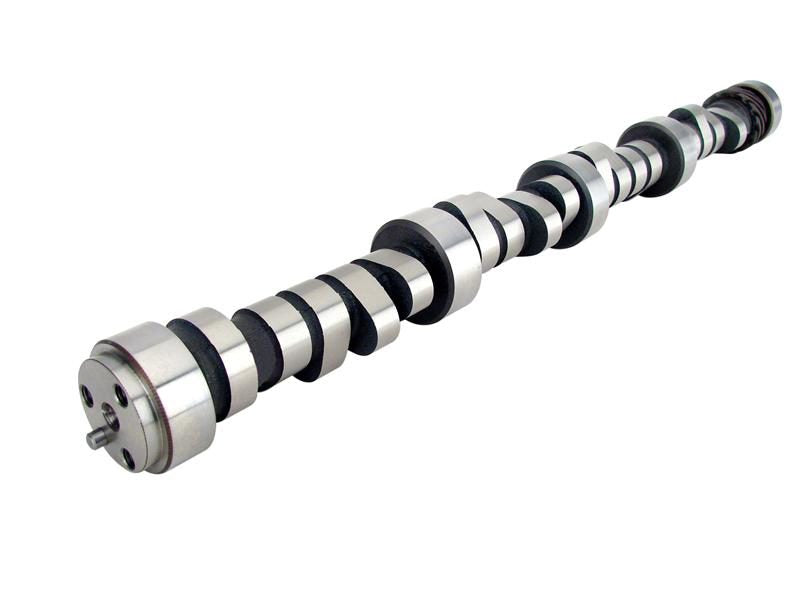

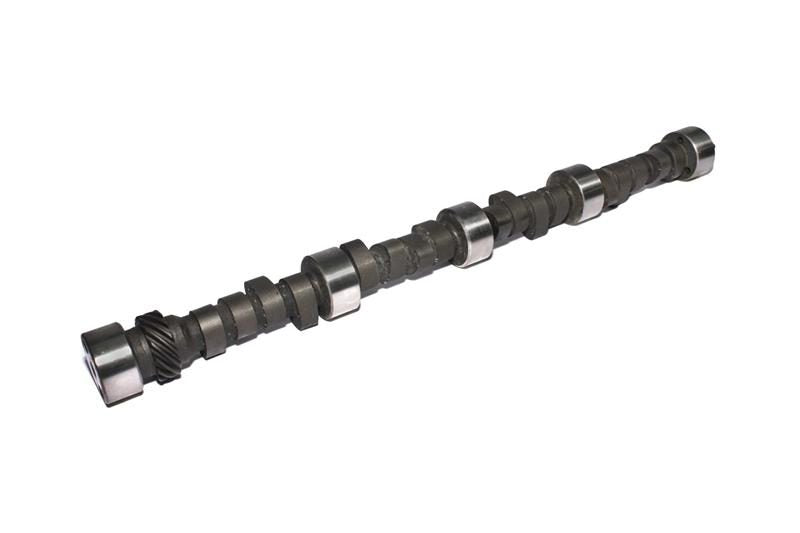

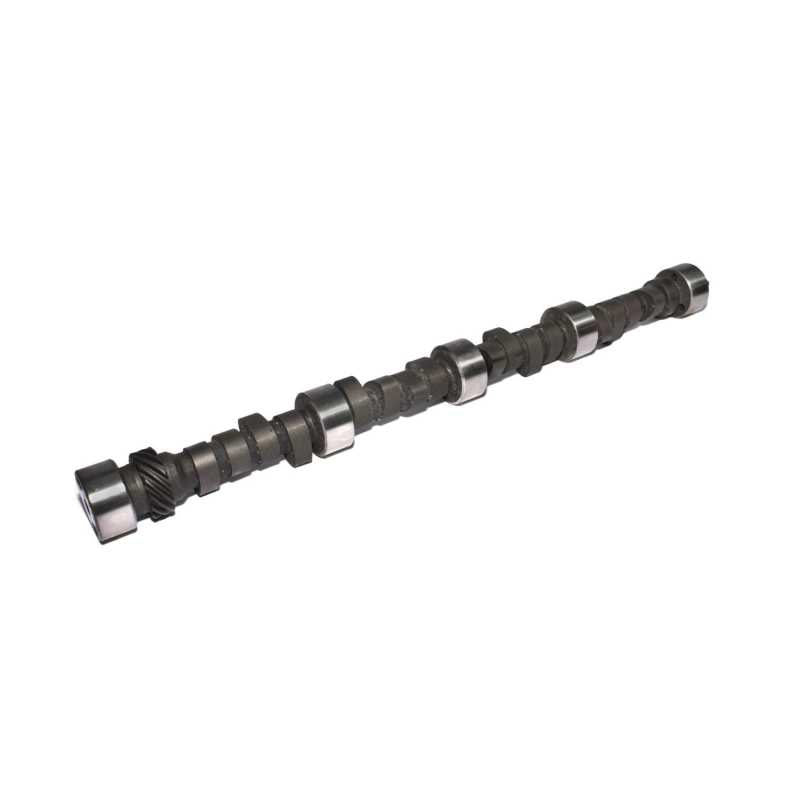

COMP Cams 11-651-47 - Camshaft CB 47S XE284H-10

COMP Cams 11-651-47 - Camshaft CB 47S XE284H-10

COMP Cams | 11-651-47
SKU: COMP-11-651-47
$377.99 USD
$415.79 USD $377.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 11-651-47 - Camshaft CB 47S XE284H-10

Xtreme Energy 4/7 Swap 240/246 Hydraulic Flat Cam Chevrolet Big Block 396-454

Street/strip, 2800+ stall, rough idle, 9.5:1+ compression.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Xtreme Energy 4 and 7 Swap Firing Order
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE284H-10
Basic Operating RPM Range: 2,300-6,500
Intake Duration at .050 Inch Lift: 240
Exhaust Duration at .050 inch Lift: 246
Advertised Intake Duration: 284
Advertised Exhaust Duration: 296
Lobe Separation: 110
Intake Valve Lift: 0.574
Exhaust Valve Lift: 0.578
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B001G7847C
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE284H-10
