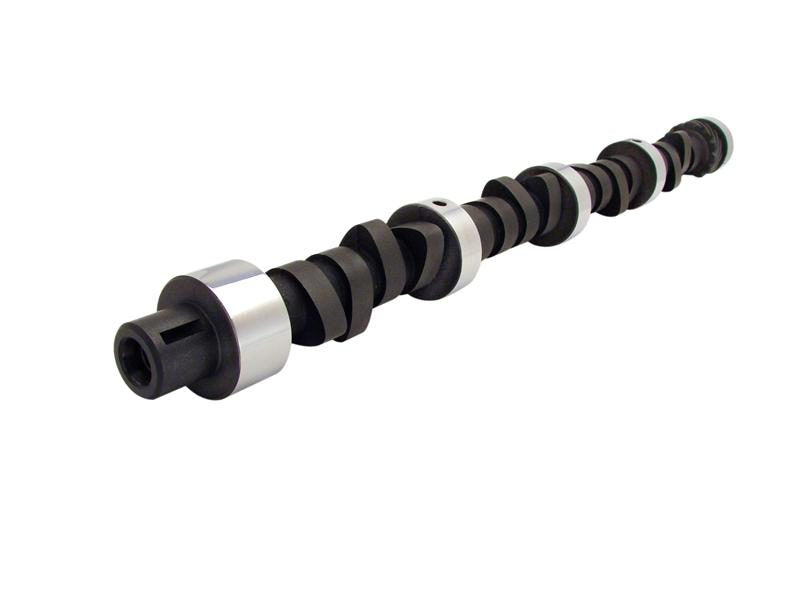

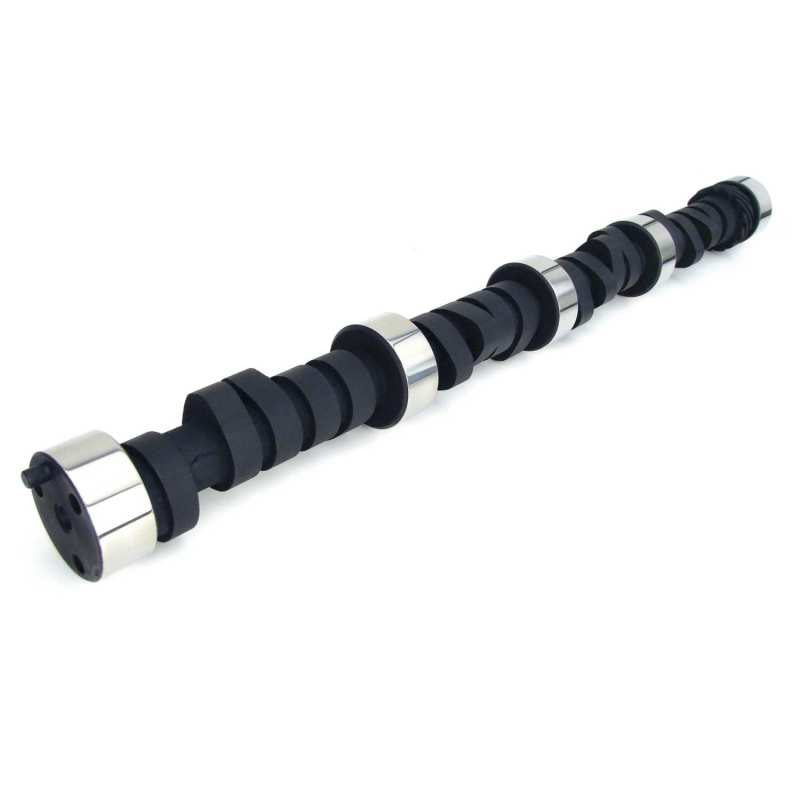

COMP Cams 11-610-5 - Camshaft CB 285B-8

COMP Cams 11-610-5 - Camshaft CB 285B-8

COMP Cams | 11-610-5
SKU: COMP-11-610-5
$329.95 USD
$362.94 USD $329.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 11-610-5 - Camshaft CB 285B-8

Drag Race/Puller/Mud/O-Track 250/260 Solid Flat Cam Chevrolet Big Block 396-454

Good torque and power in 396-402c.i., 10:1+ compression.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Puller and Mud Race
Usage: Strip
Cam Type: Solid Flat Tappet
Grind Number: 285B-8
Basic Operating RPM Range: 3,000-6500
Intake Duration at .050 Inch Lift: 250
Exhaust Duration at .050 inch Lift: 260
Advertised Intake Duration: 285
Advertised Exhaust Duration: 295
Lobe Separation: 108
Intake Valve Lift: 0.604
Exhaust Valve Lift: 0.629
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000P595OM
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 285B-8
