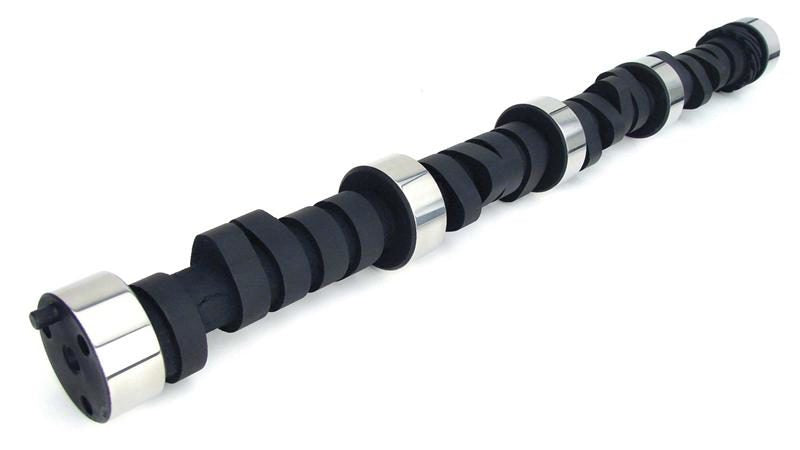

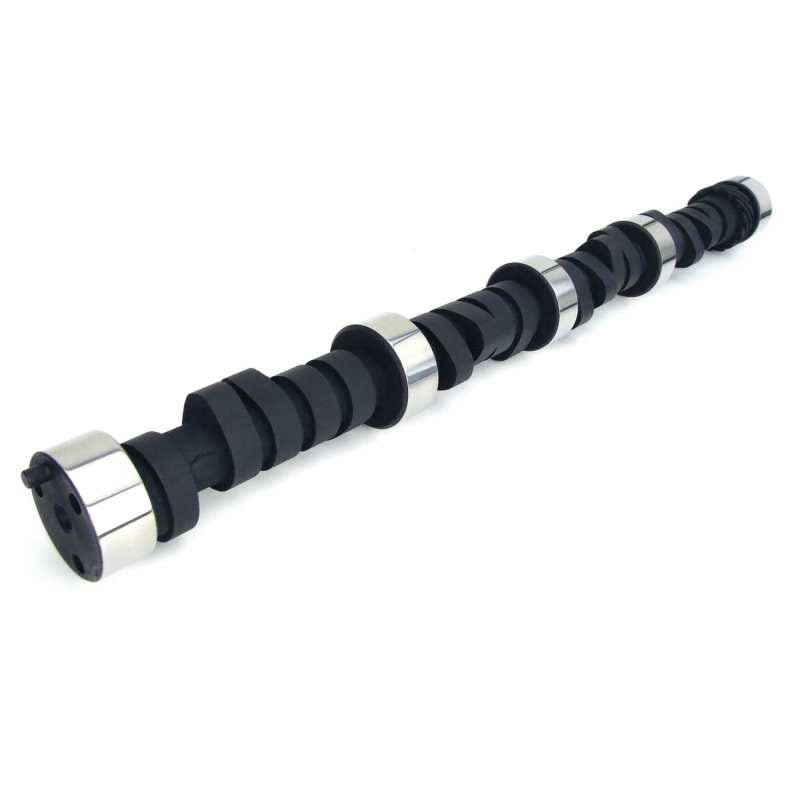

COMP Cams 11-560-4 - Camshaft CB Nx 268H-13

COMP Cams 11-560-4 - Camshaft CB Nx 268H-13

COMP Cams | 11-560-4
SKU: COMP-11-560-4
$320.99 USD
$353.09 USD $320.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 11-560-4 - Camshaft CB Nx 268H-13

Nitrous HP 224/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454

Street machines with 125+ hp nitrous kit, needs 2000+ stall, 3.73 gear, choppy idle.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or contact us, and we will assist you with placing an order.

Camshaft Series: Nitrous HP
Usage: Street/Strip
Cam Type: Hydraulic Flat Tappet
Grind Number: NX268H
Basic Operating RPM Range: 2,000-6,200
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 236
Advertised Intake Duration: 268
Advertised Exhaust Duration: 286
Lobe Separation: 113
Intake Valve Lift: 0.515
Exhaust Valve Lift: 0.547
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade: CL11-560-4
K-Kit Upgrade: K11-560-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK11-560-4
Amazon ASIN: B000P5G57M
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: NX268H
