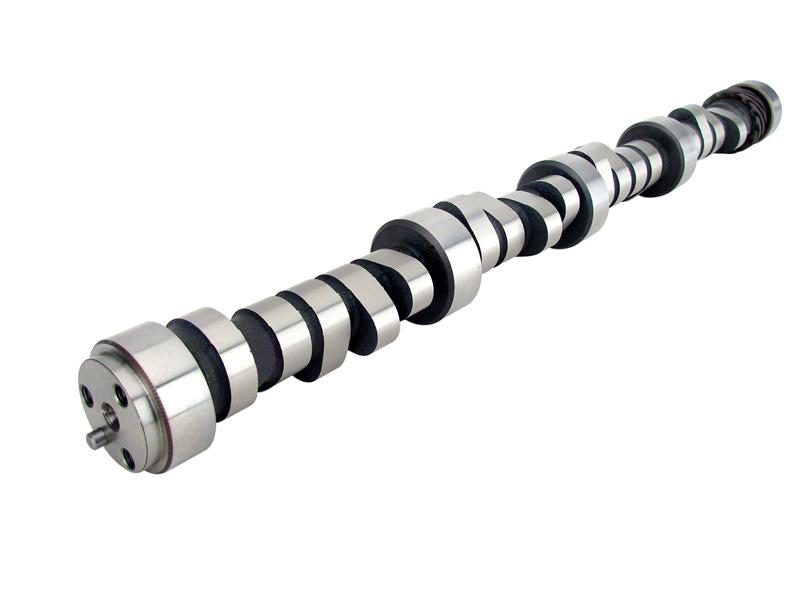

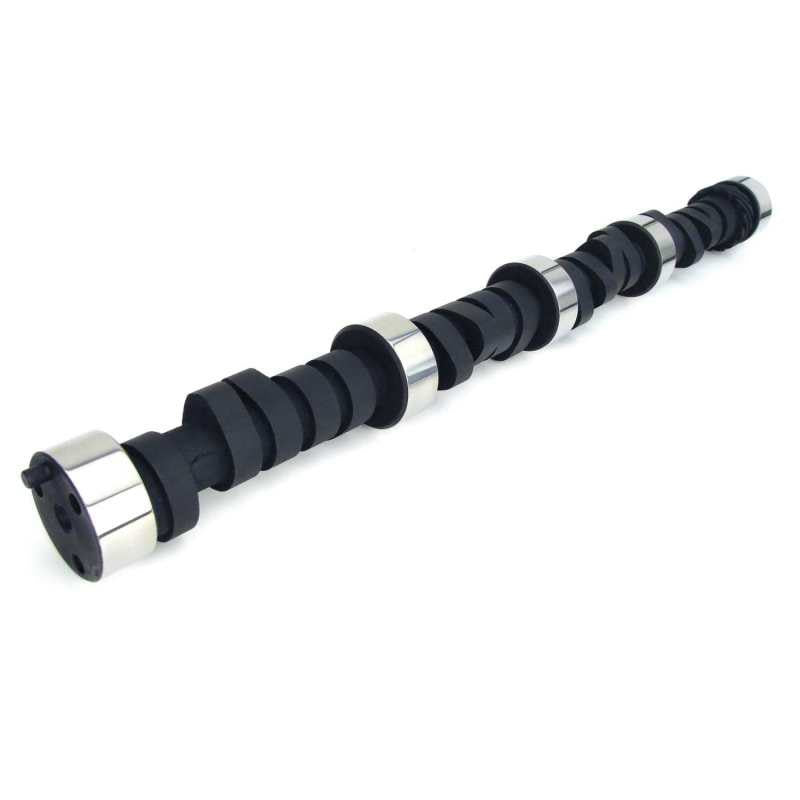

COMP Cams 11-234-3 - Camshaft CB XE256H-10

COMP Cams 11-234-3 - Camshaft CB XE256H-10

COMP Cams | 11-234-3
SKU: COMP-11-234-3
$304.99 USD
$335.49 USD $304.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

COMP Cams 11-234-3 - Camshaft CB XE256H-10

Camshaft - Xtreme Energy - Hydraulic Flat Tappet - Lift 0.480 / 0.485 in - Duration 256 / 268 - 110 LSA - 1000 / 5200 RPM - Big Block Chevy - Each

Strong torque thru low and mid-range, good idle.

Featuring a quicker valve opening, the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older, slower grinds. Designed to increase performance without sacrificing driveability and creature comforts, the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications, but offer the best performance with aftermarket intake manifolds, lower gear ratios, headers and free flowing exhaust.

Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Hydraulic Flat Tappet
Grind Number: XE256H
Basic Operating RPM Range: 1,000-5,200
Intake Duration at .050 Inch Lift: 212
Exhaust Duration at .050 inch Lift: 218
Advertised Intake Duration: 256
Advertised Exhaust Duration: 268
Lobe Separation: 110
Intake Valve Lift: 0.48
Exhaust Valve Lift: 0.485
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Cast Iron
Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
Cam and Lifter Kit Upgrade: CL11-234-3
K-Kit Upgrade: K11-234-3
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK11-234-3
Amazon ASIN: B000CEQDA0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE256H
