COMP Cams 10902F2 - Stage 2 Induction Package for Turbo GM LS1/Cathedral Port

Name: COMP Cams 10902F2 - Stage 2 Induction Package for Turbo GM LS1/Cathedral Port
Brand: COMP Cams
SKU: COMP-10902F2
Availability: OutOfStock

COMP Cams 10902F2 - Stage 2 Induction Package for Turbo GM LS1/Cathedral Port

COMP Cams | 10902F2
SKU: COMP-10902F2

$0.00 USD

~~$0.00 USD~~ $0.00 USD

Sale Sold out

Shipping calculated at checkout.

Out of stock

COMP Cams 10902F2 - Stage 2 Induction Package for Turbo GM LS1/Cathedral Port

Stage 2 Induction Package for Turbo GM LS1/Cathedral Port

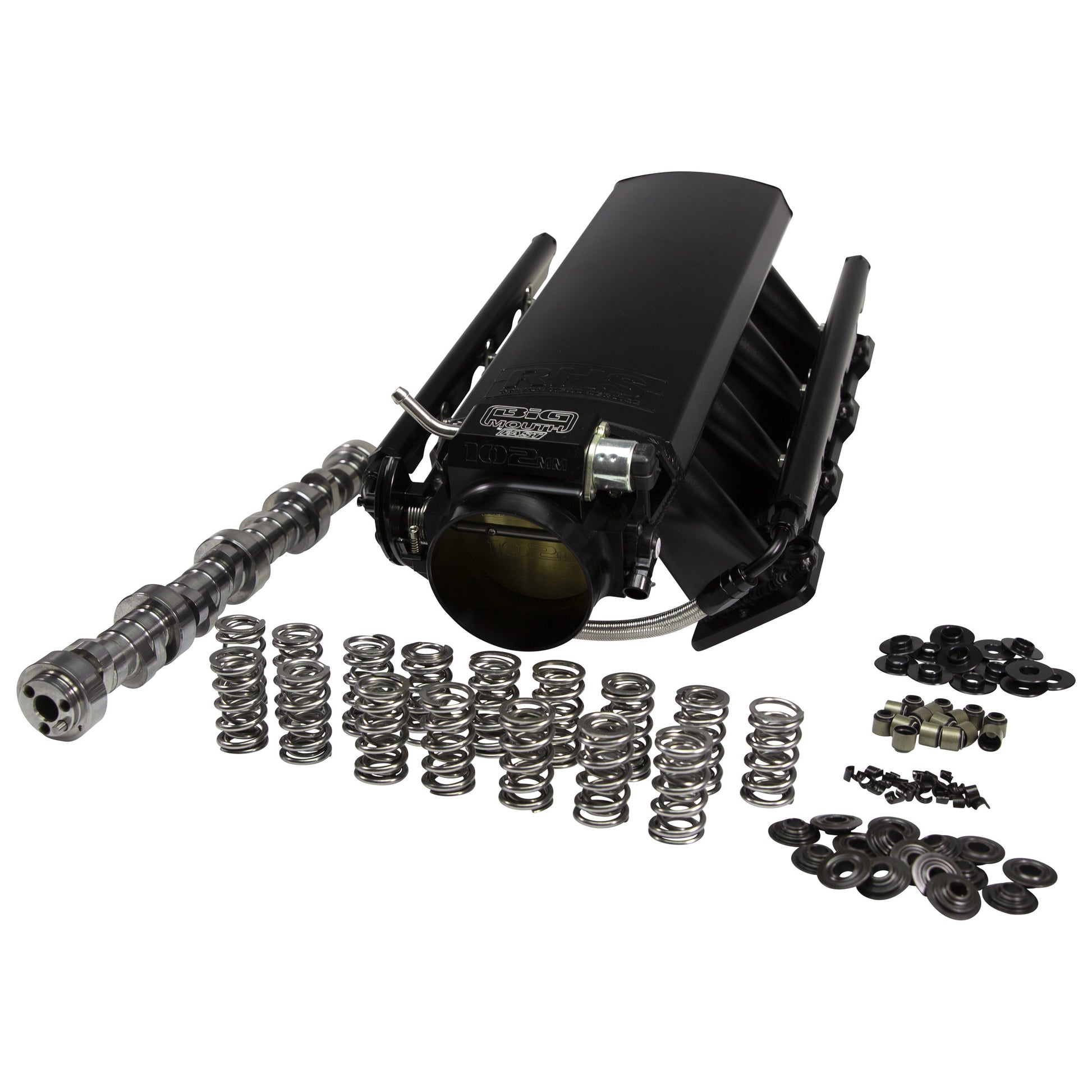

Including an RHS Manifold, FAST Throttle Body, COMP Cams Stage 2 Turbo Cam and Dual Valve Spring Kit, this Package delivers an additional 161 HP on an LM7 5.3 LS w/ 9 Lbs and 175 HP on 15 lbs. Made 715 HP on 9 lbs, 840 HP on 15 lbs.

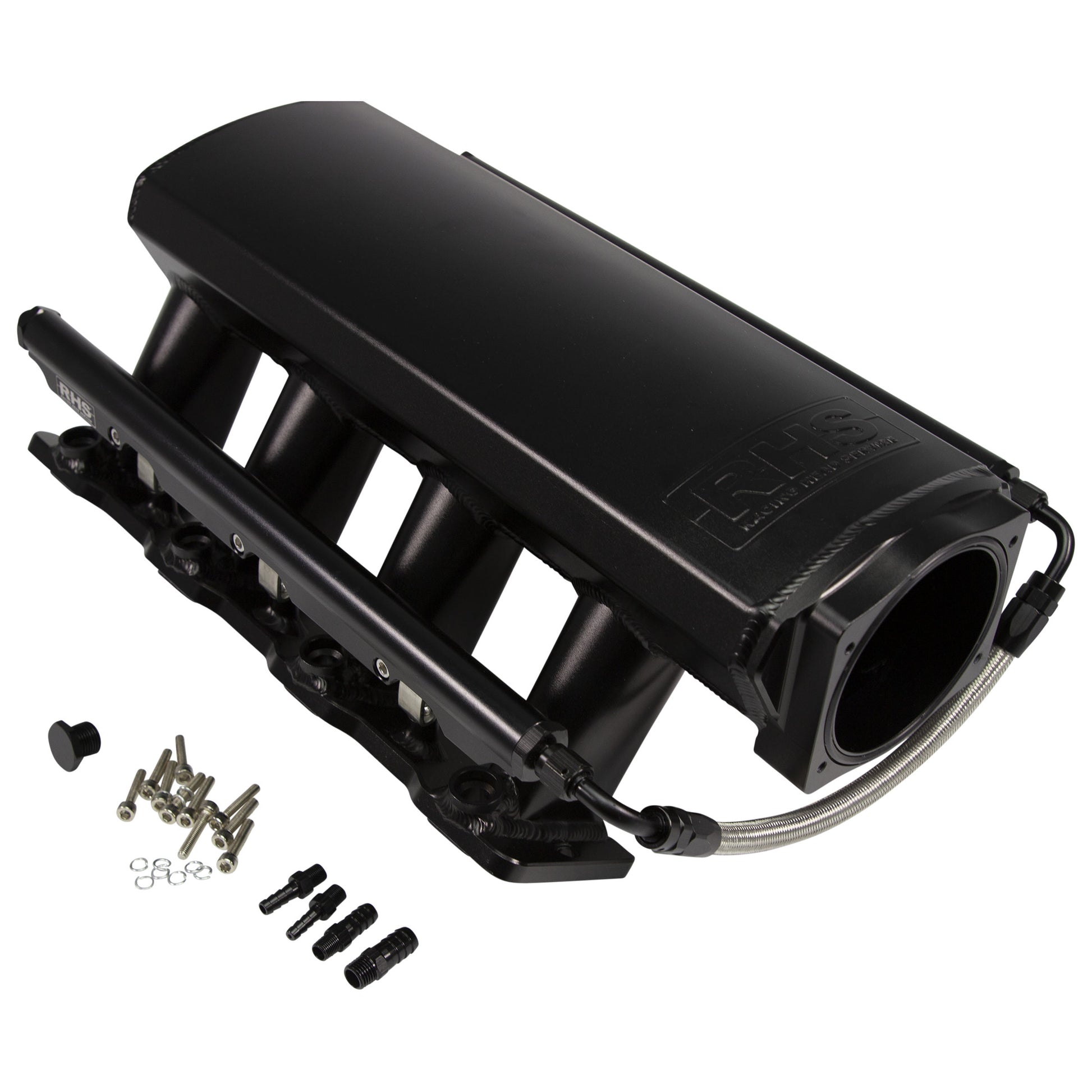

RHS Induction Packages maximize horsepower and torque gains for your GM LS1 Cathedral Port engine. Including our high quality black anodized sheet metal intake, fuel rails along with custom COMP Cams camshaft and beehive valve spring kit, these kits remove all the guesswork, delivering serious gains without the hassle.

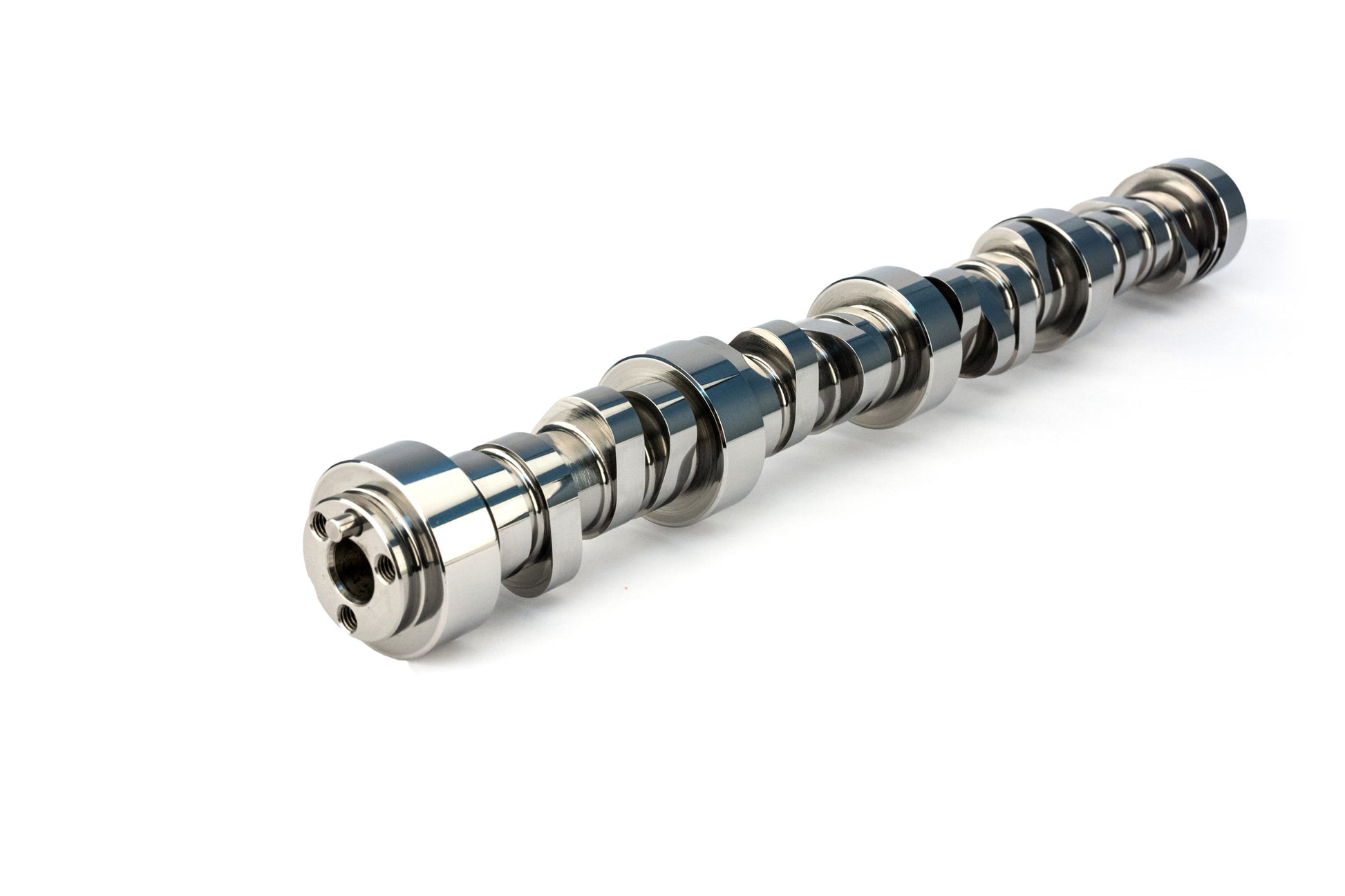

Camshaft Included: Yes

Intake Duration at .050" Lift: 231

Exhaust Duration at .050" Lift: 237

Intake Advertised Duration: 286

Exhaust Advertised Duration: 292

Valve Lift with Factory Rocker Arm Ratio: .605/.610

Intake Manifold Included: Yes

Fuel Delivery Style: Multiport - MPI

Intake Material: Aluminum

Intake Finish: Textured Black Anodize

Intake Style: Fabricated Sheet Metal

Intake Manifold Name: RHS Sheet Metal Intake

Throttle Bolt Style (3 or 4 Bolt): 4

Timing Chain and Gears Included: No

Lifters Included: No

Gaskets Included: Yes

Intake Port Shape: Cathedral Port/LS1/2/6

Valve Springs Included: Yes

Outside Diameter of Outer Spring (in): 1.32

Damper Spring Included: No

Number of Springs Per Valve: 2

Retainers Included: Yes

Retainer Material: Steel

Locks Included: Yes

Lock Style: Stock Beadlock

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Hat

Valve Stem Seal Material: Stock

Rocker Arms Included:: No

Rocker Arm Studs Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Guideplate Pushrod Size: No

Pushrods Included: No

Valve Covers Included: No

Fuel Rails Included: Yes

Injectors Included: No

Required Injector Size/Footprint (LS1/LS3/LS2): LS1
