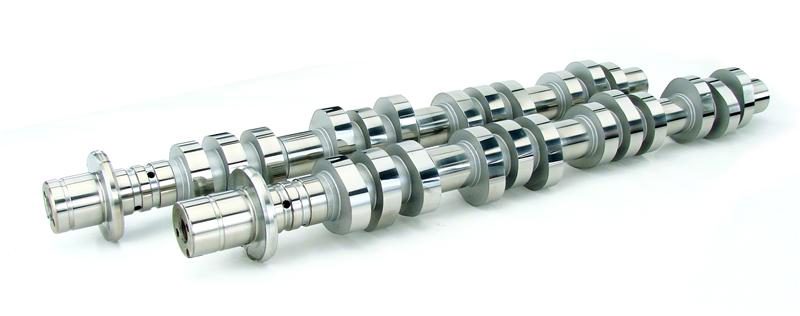

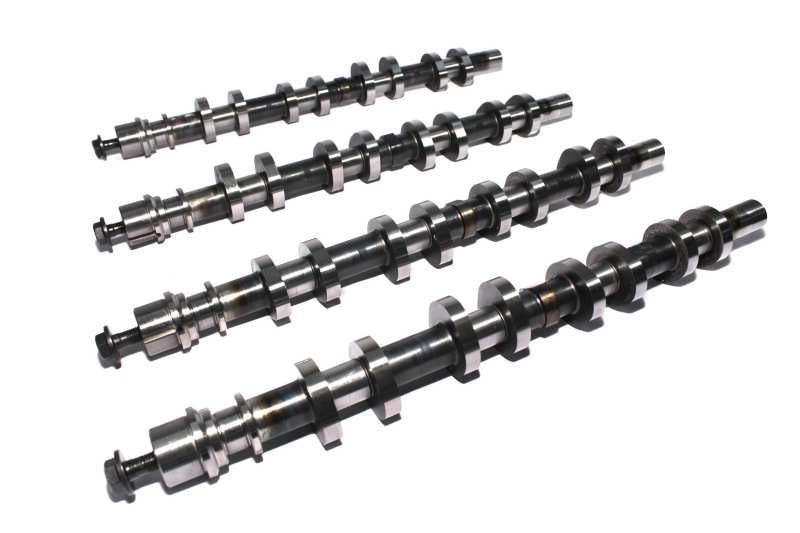

COMP Cams 106400 - Camshaft Set F4.6/5.4D XE270B

COMP Cams 106400 - Camshaft Set F4.6/5.4D XE270B

COMP Cams | 106400
SKU: COMP-106400
$2,134.95 USD
$2,348.44 USD $2,134.95 USD
Sale Sold out
Shipping calculated at checkout.

9 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 106400 - Camshaft Set F4.6/5.4D XE270B

Xtreme XE-R 234/232 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve

Hot performance cams with serious horsepower and torque gains. Recommended lower gears, requires custom tuning, larger throttle body, mass air, injectors and exhaust upgrades. Automatics use a 2200+ stall. Features a rough idle.

Xtreme XE-R 234/232 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8L Modular 4 Valve Xtreme XE-R 234/232 Hydraulic Roller Finger Follower Finger Follower. Hot performance with Serious horsepower and torque gains. Recommended lower Gear ratios, 2200+ stall, larger throttle body, mass air, injectors and exhaust upgrades. Rough idle. Requires custom tuning.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE270BH-114
Camshaft Series: Xtreme XE-R
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: XE270BH-114
Basic Operating RPM Range: 1,800-6,200
Intake Duration at .050 Inch Lift: 234
Exhaust Duration at .050 inch Lift: 232
Advertised Intake Duration: 269
Advertised Exhaust Duration: 267
Lobe Separation: 114
Intake Valve Lift: 0.475
Exhaust Valve Lift: 0.45
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
Assembly Lubricant Included: No
Valve Springs Required: Yes
Lifters Included: No
Lifter Type: Hydraulic Roller Swinging Follower
Amazon ASIN: B001G752NQ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
