COMP Cams 106260 - Camshaft Set F4.6/5.4D XE258B

COMP Cams 106260 - Camshaft Set F4.6/5.4D XE258B

COMP Cams | 106260
SKU: COMP-106260

$2,134.95 USD

~~$2,348.44 USD~~ $2,134.95 USD

Sale Sold out

Shipping calculated at checkout.

13 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

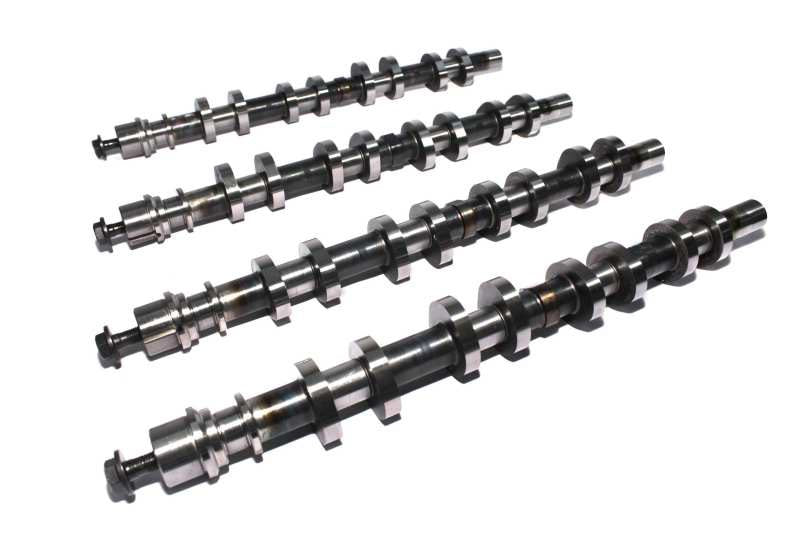

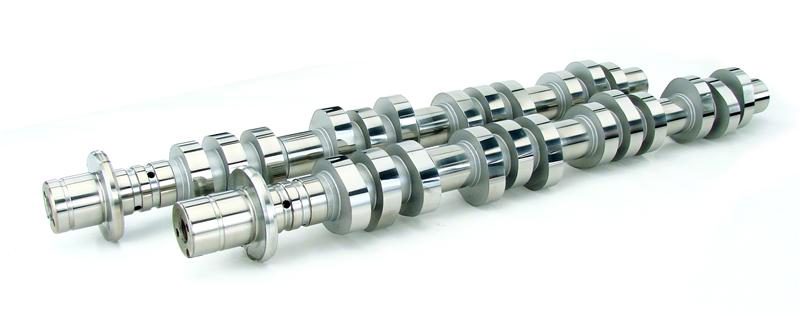

COMP Cams 106260 - Camshaft Set F4.6/5.4D XE258B

XE-R S-Charged/N2O 222/224 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V

Xtreme Energy-R S-Charged/N2O 222/224 Hydraulic Roller Finger Follower Cams for Ford 4.6/5.4/5.8 Modular 4-V Xtreme XE-R Supercharged and Nitrous 222/224 Hydraulic Roller Finger Follower Finger Follower. Street performance with excellent torque. Works well in supercharged or nitrous engines. Requires custom tuning.

Street performance with excellent torque.

Amazon ASIN: B000P5G4L4

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Grind Number: XE258BH-116

Camshaft Series: XE-R Supercharged and Nitrous

Usage: Street/Performance

Cam Type: Hydraulic Roller Swinging Follower

Grind Number: XE258BH-116

Basic Operating RPM Range: 1,200-5,800

Intake Duration at .050 Inch Lift: 222

Exhaust Duration at .050 inch Lift: 224

Advertised Intake Duration: 257

Advertised Exhaust Duration: 259

Lobe Separation: 116

Intake Valve Lift: 0.475

Exhaust Valve Lift: 0.45

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: No

Camshaft Gear Attachment: 1-Bolt

Camshaft Material: Billet Steel

Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)

Lifter Type: Hydraulic Roller Swinging Follower
