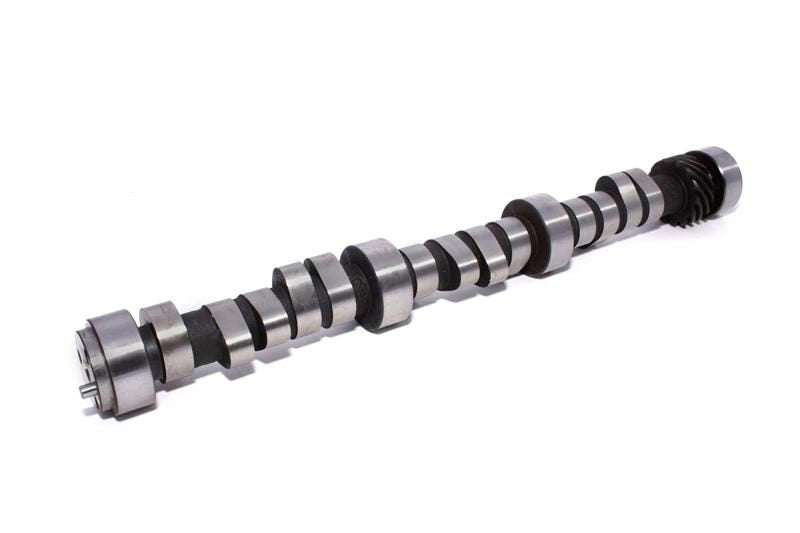

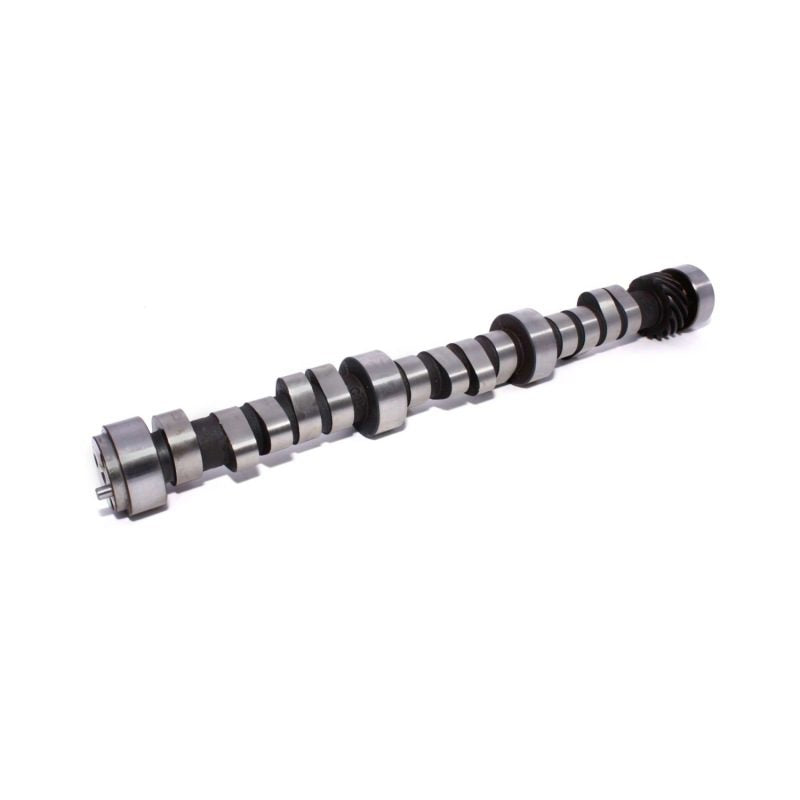

COMP Cams 09-412-8 - Camshaft C43 260AH-R12

COMP Cams 09-412-8 - Camshaft C43 260AH-R12

COMP Cams | 09-412-8
SKU: COMP-09-412-8
$602.99 USD
$663.29 USD $602.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

COMP Cams 09-412-8 - Camshaft C43 260AH-R12

Magnum Computer Controlled 206/210 Hydraulic Roller Cam for Chevrolet 262/4.3L

Works with stock computer and fuel injection. Good low end torque and mileage.

For '87-'94 GM 4.3L/262 cid 90. V6 Non-Balance shaft Engines with Hyd. Roller Cam . Works with Stock Computer and Fuel Injection. Good Low End Torque and Mileage. Adjustable Valve Train Required. Balance shaft equipped 4.3L engines were introduced in '92 but GM continued to produce the previous version until '94. Non-Balance shaft 4.3L's ('85-'94) shared their timing cover with the small block Chevy V8 engine. The. Balance shaft 4.3L's timing cover is noticeably taller than the Non-Balance shaft version.

Camshaft Series: Magnum Computer Controlled
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: 260AHR
Basic Operating RPM Range: 1,200-4,500
Intake Duration at .050 Inch Lift: 206
Exhaust Duration at .050 inch Lift: 210
Advertised Intake Duration: 260
Advertised Exhaust Duration: 266
Lobe Separation: 112
Intake Valve Lift: 0.5
Exhaust Valve Lift: 0.5
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft
Cam and Lifter Kit Upgrade: CL09-412-8
K-Kit Upgrade: K09-412-8
Lifter Type: Hydraulic Roller
SK-Kit Upgrade: SK09-412-8
Amazon ASIN: B000VU20HU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 260AHR
