COMP Cams 09-410-8 - Camshaft C43 260H-R10

COMP Cams 09-410-8 - Camshaft C43 260H-R10

COMP Cams | 09-410-8
SKU: COMP-09-410-8
$602.99 USD
$663.29 USD $602.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

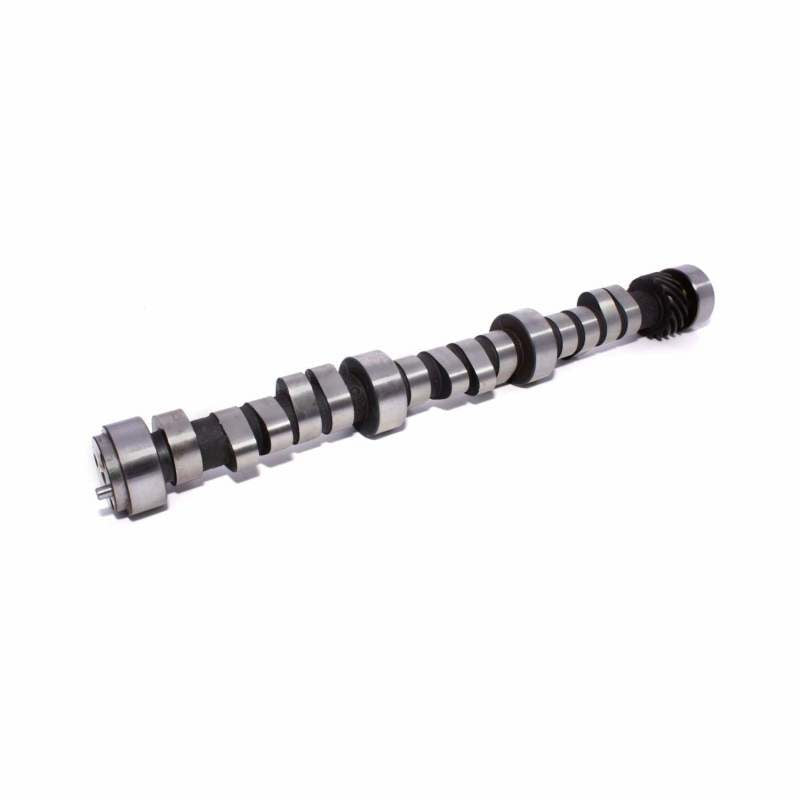

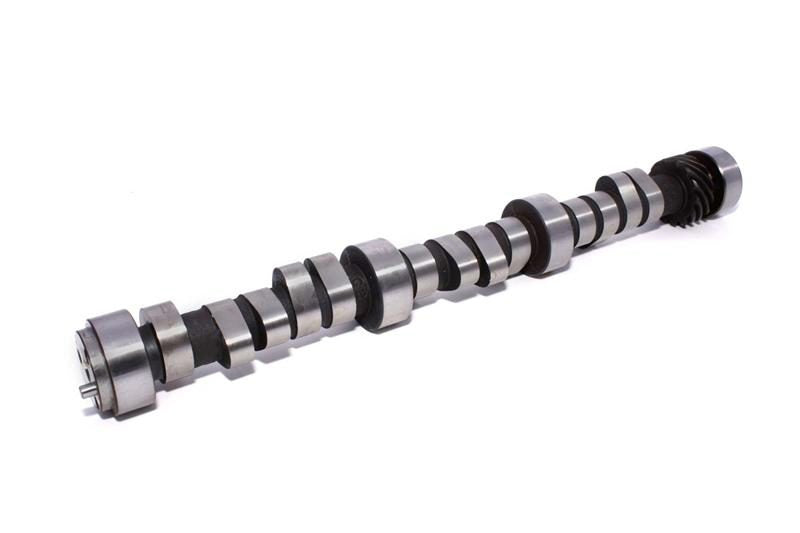

COMP Cams 09-410-8 - Camshaft C43 260H-R10

Magnum 206/206 Hydraulic Roller Cam for Chevrolet 262/4.3L

Performance upgrade for stock camshaft. Good mileage, smooth idle. Works with vans, pickups and towing. Stock gear ratios & converter.

Stock Gear Ratios and Converter - For Carbureted Applications Balance shaft equipped 4.3L engines were introduced in '92 but GM continued to produce the previous version until '94. Non-balance shaft 4.3L's (' 85-'94) shared their timing cover with the small block Chevy V8 engine. The balance shaft 4.3L's timing cover is noticeably taller than the non-balance shaft version.

Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: 260HR
Basic Operating RPM Range: 1,200-4,500
Intake Duration at .050 Inch Lift: 206
Exhaust Duration at .050 inch Lift: 206
Advertised Intake Duration: 260
Advertised Exhaust Duration: 260
Lobe Separation: 110
Intake Valve Lift: 0.5
Exhaust Valve Lift: 0.5
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft
Cam and Lifter Kit Upgrade: CL09-410-8
K-Kit Upgrade: K09-410-8
Lifter Type: Hydraulic Roller
SK-Kit Upgrade: SK09-410-8
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 260HR
