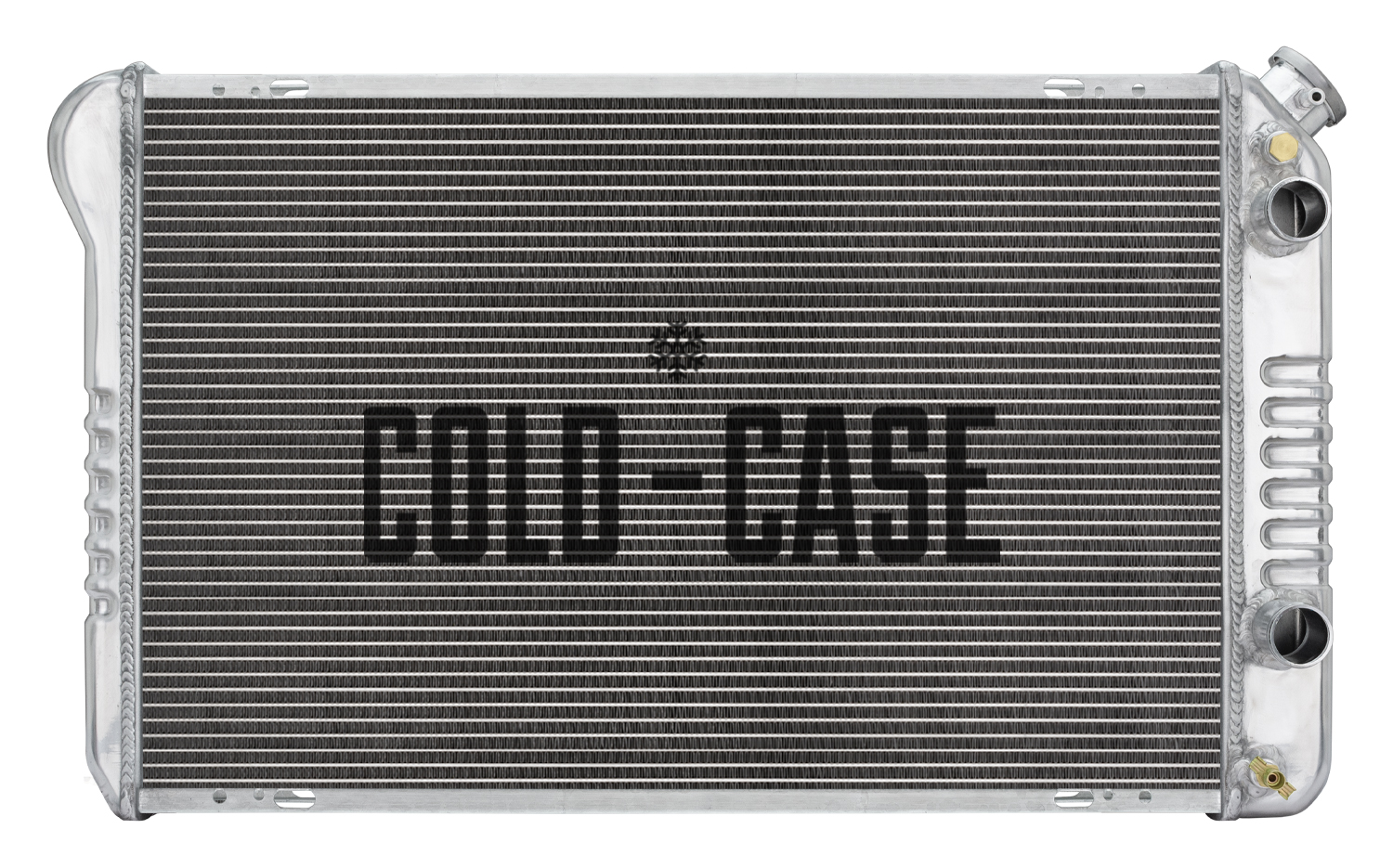

Cold Case Radiators - LMP590-5
1982-1992 Camaro/Firebird 3rd Gen LS Swap Aluminum Performance Radiator. The factory shroud will need modification.
These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.
You would be hard-pressed to spot the difference between an OEM replacement and a COLD-CASE, and you would never match the performance.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Rows
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic/standard trans
- LS Swap double pass
Radiator Specs
- Core Height 16.85 Inch
- Core Width 26.25 Inch
- Overall Height 18.5 Inch
- Overall Width 32 Inch
- Overall Thickness 3 Inch
- Upper Hose 1.25 Inch
- Lower Hose 1.5 Inch
- Tubes (2) 1.25 Inch Tubes
- Included Steam Port
