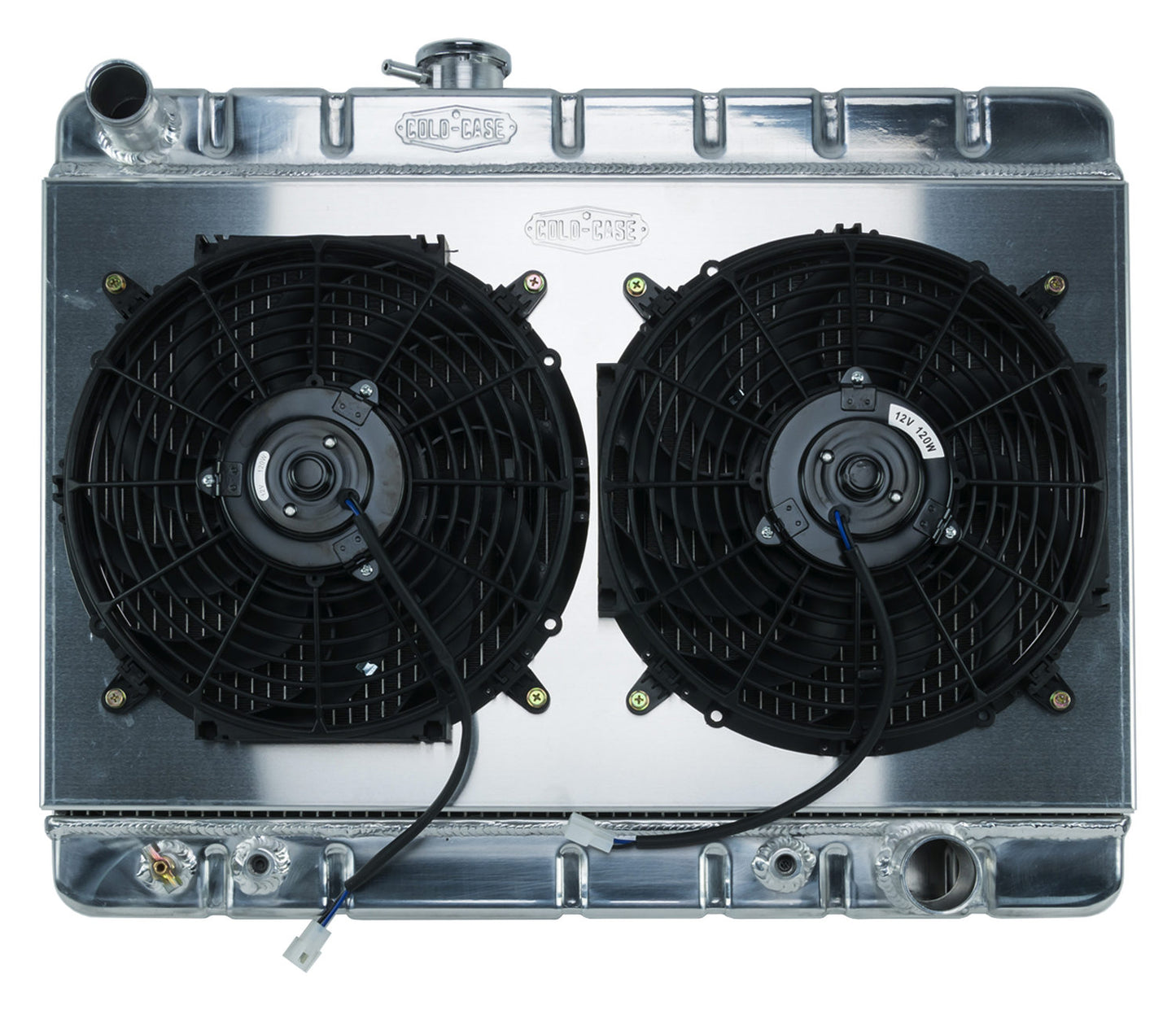

Cold Case Radiators GPG34AK - 66-67 GTO Aluminum Radiator And 12 Inch Dual Fan Kit W/O AC AT

Cold Case Radiators GPG34AK - 66-67 GTO Aluminum Radiator And 12 Inch Dual Fan Kit W/O AC AT

1966-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator and 12 Inch dual fan kit. AT Cars w/o AC. This is the smaller 15.5 inch core for cars without factory AC.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto trans (auto-trans-cooler)
• Direct fitment for 66-67 GTO
• Old Part Number: RPE36LK

Radiator Specs

• Core 15-1/2 inch
• Width 25-1/4 inch
• Overall Height 20-1/8 inch
• Overall Thickness 6 inch
• Upper Hose 1-1/2 inch
• Lower Hose 1-13/16 inch
• Tubes (2) 1 inch Tubes
• Trans Lines 12-1/4 inch
