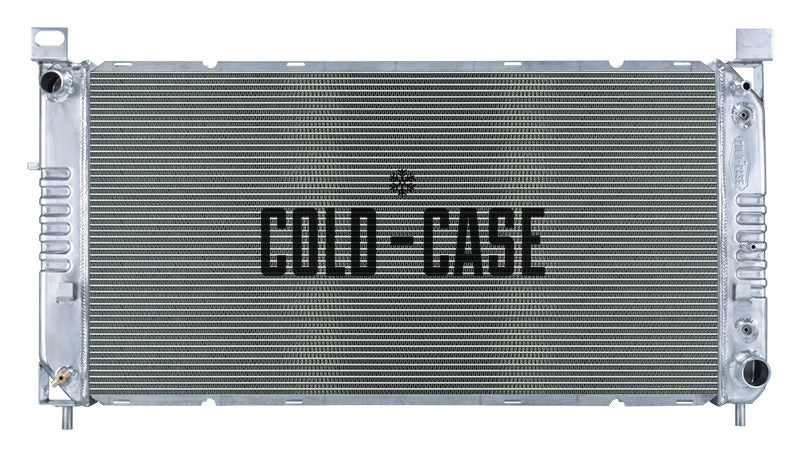

Cold Case Radiators - GMT570A
1999-2012 Chevy/GMC Truck Aluminum Performance Radiator. This radiator DOES NOT have the oil cooler. GMT569A is the radiator WITH the oil cooler.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- 2 Rows of 1.25 inch tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 99-12 GM Truck
Radiator Specs
- Core Height 17.25 inch
- Core Width 34 inch
- Overall Height 21 inch
- Overall Width 40 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.25 inch
- Lower Hose 1.50 inch
