Cold Case Radiators GMT556A - 77-87 Chevy/GMC Pickup Truck Aluminum Radiator AT

Cold Case Radiators GMT556A - 77-87 Chevy/GMC Pickup Truck Aluminum Radiator AT

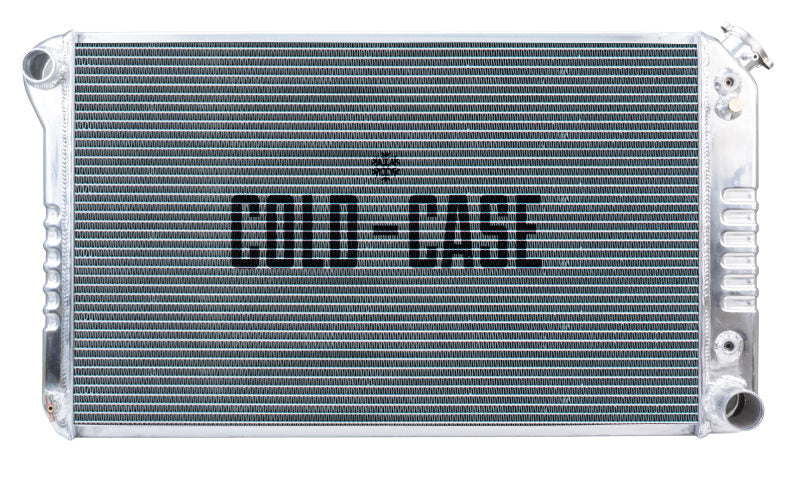

1977-1987 Chevy/GMC Pickup Truck Aluminum Performance Radiator. AT Cars. 19 Inch high overall. For 21 inch high version, see GMT556A21.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Automatic trans
• Direct fitment for 77-87 GM Truck
• Old Part Number: RPE556A

Radiator Specs

• Core Height 17.2 inch
• Core Width 28.35 inch
• Overall Height 18.6 inch
• Overall Width 34.15 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
