Cold Case Radiators FOT577AK - 61-64 Ford F-100 Aluminum Performance Radiator and Dual 12 Inch Fan Kit

Cold Case Radiators FOT577AK - 61-64 Ford F-100 Aluminum Performance Radiator and Dual 12 Inch Fan Kit

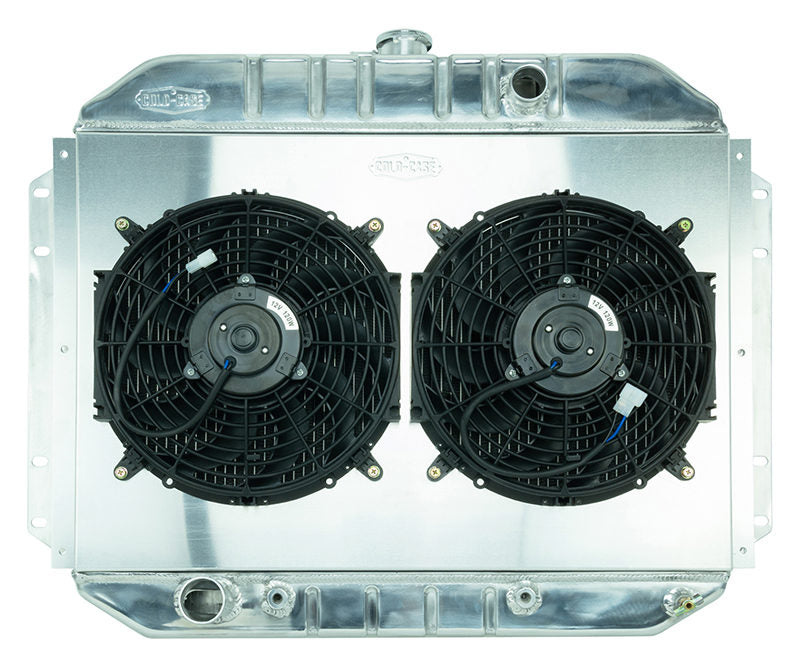

1961-1964 Ford F-100 Truck Aluminum Performance Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
Details:

• 100 percent TIG welded
• All Aluminum
• 2 Rows of 1.25 Inch tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual trans
• Direct fitment for 61-64 F100
• Old Part Number: RPE577A

Radiator Specs

• Core Height 17.7 Inch
• Core Width 25.9 Inch
• Overall Height 24.5 Inch
• Overall Width 30 Inch brackets
• Overall Thickness 3 Inch
• Upper Hose 1.50 Inch
• Lower Hose 1.77 Inch
• Tubes (2) 1.25 Inch Tubes
