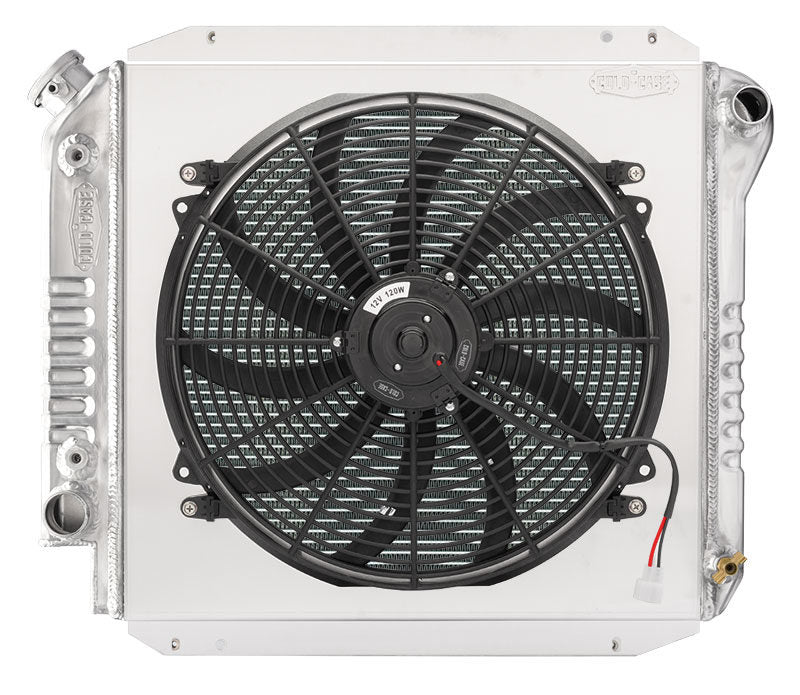

Cold Case Radiators - FOT574A-5K
1966-1977 Ford Bronco Aluminum Performance Radiator Module for late model V8 engines. These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.
Features:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/manual trans
- Direct fitment for 66-77 Bronco
Radiator Specs:
- Core Height 18.5 inch
- Core Width 19.2 inch
- Overall Height 20.2 inch
- Overall Width 24.75 inch
- Overall Thickness 6.75 inch
- Tubes (2) 1.25 inch Tubes
- Trans Cooler Fitting: 1/8 inch National Pipe Thread
