Cold Case Radiators - FOT574A-1K

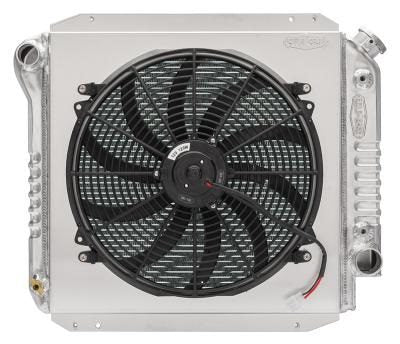

1966-1977 Ford Bronco Aluminum Performance Radiator with thinner core with 16 inch Fan and Shroud Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
This is the same radiator as our FOT574A, but with two 1 inch cores. The 1 inch core design allows for more room from the radiator to the water pump.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.00 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/manual trans
- Direct fitment for 66-77 Bronco
Radiator Specs
- Core Height 18.5 inch
- Core Width 19.2 inch
- Overall Height 20.2 inch
- Overall Width 24.75 inch
- Overall Thickness 6.5 inch
- Tubes (2) 1 inch Tubes
Trans Cooler Fitting Size:
1/8 inch NPT
UPC:
846861017920
