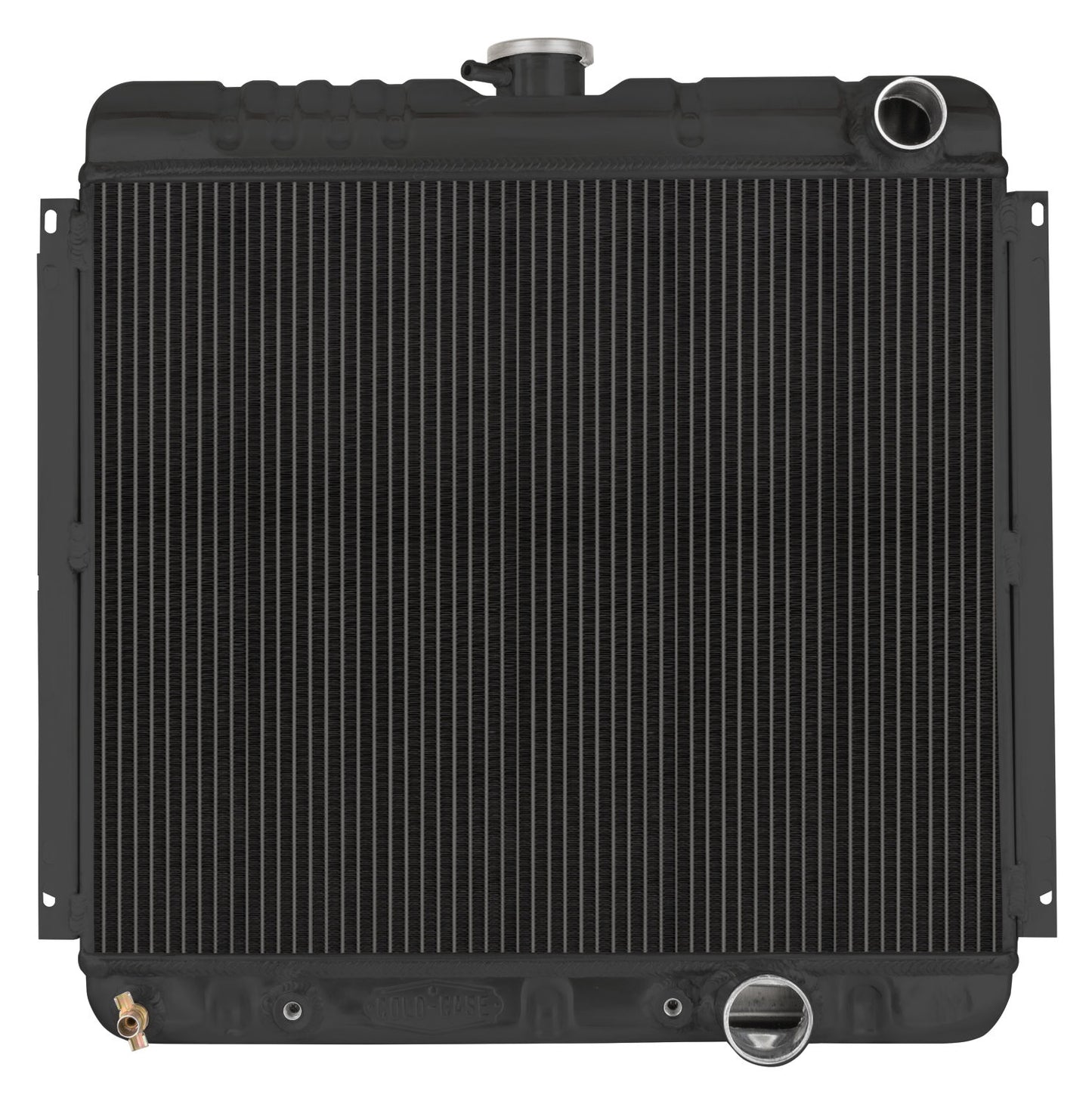

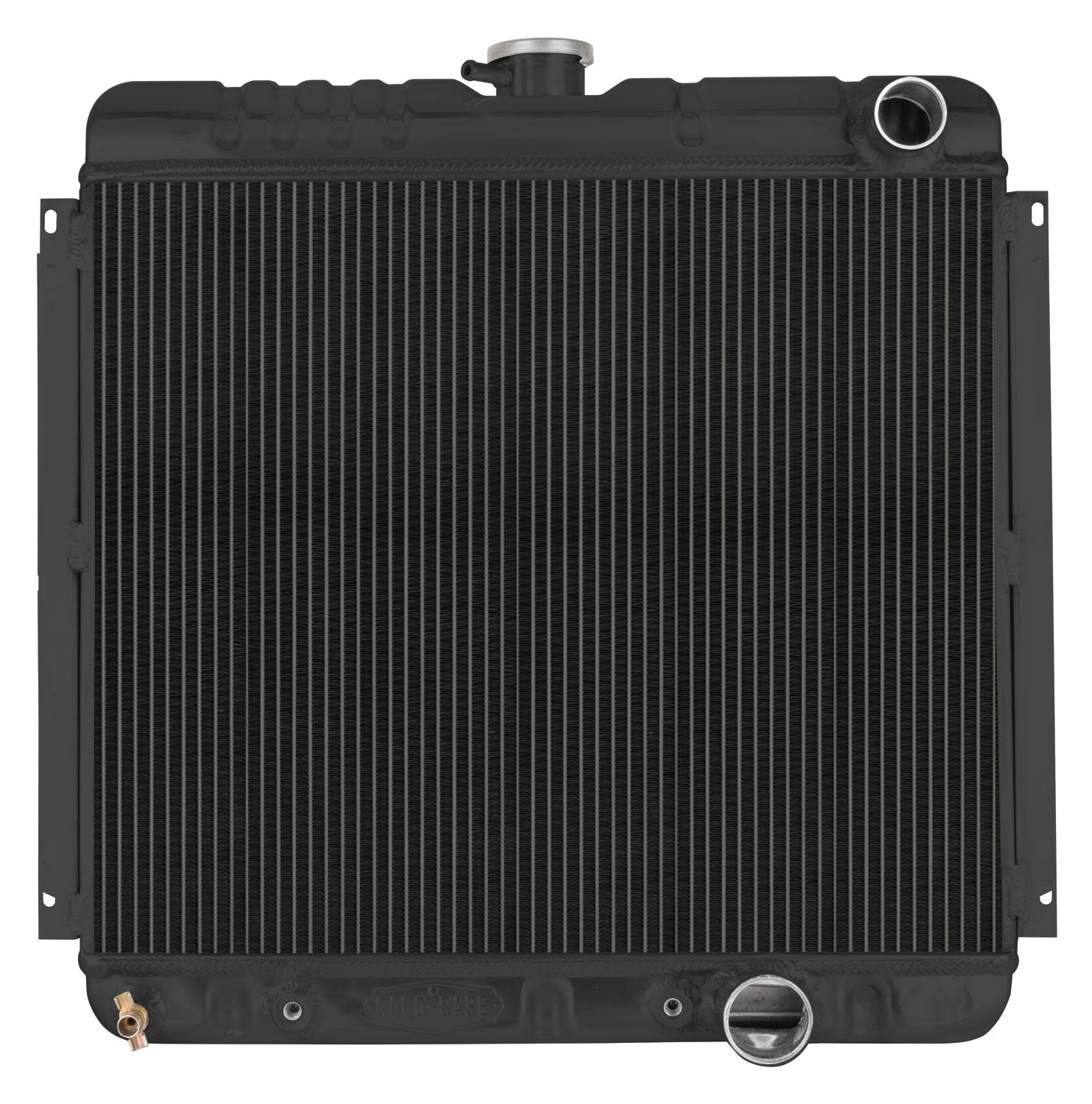

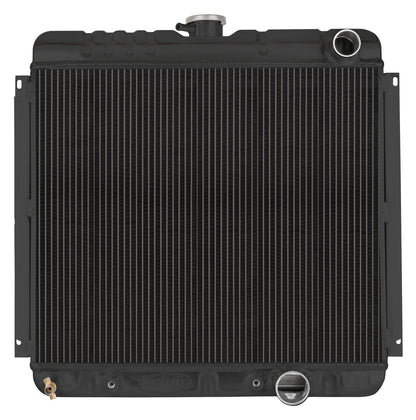

Cold Case Radiators - FOM561AB
1967-1970 Ford Mustang Aluminum Performance Radiator Night Rider Black Series. Outlets on passenger side. See FOM560A for staggered outlets.
Also Fits:
- 67-69 Mustang 289/302/351W
- 67-69 Cougar 289/302/351
- 62-69 Fairlane
- 64-68 Galaxie

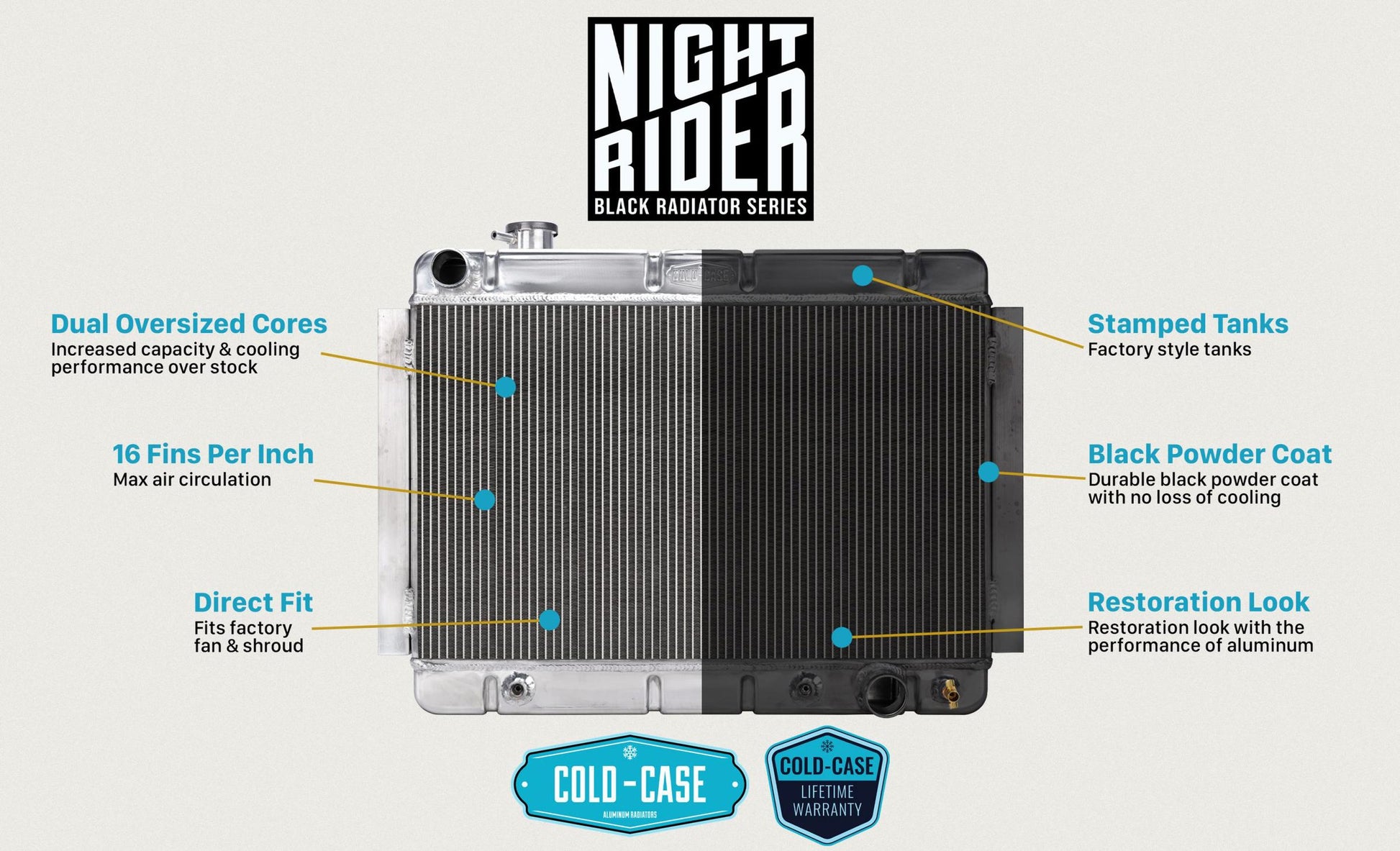

Our Night Rider Black series radiators blend performance with original appearance to give you the best of both worlds. You will be hard pressed to find a difference between an original versus a Cold-Case.
These Cold-Case radiators are Tig welded 100 percent aluminum and feature OEM appearing stamped tanks. Perfect for that restored car wanting the appearance of stock without sacrificing performance.
- 100 percent TIG welded
- All Aluminum Powder Coated Black
- OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Automatic trans
- Fits many Ford applications
- Works with factory fan shroud
Radiator Specs:
- Core Height 16.5 inch
- Core Width 19.6 inch
- Overall Height 21.5 inch
- Overall Width 22.4 inch brackets
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
- Trans Cooler Fitting: 1/8 Inch National Pipe Thread
