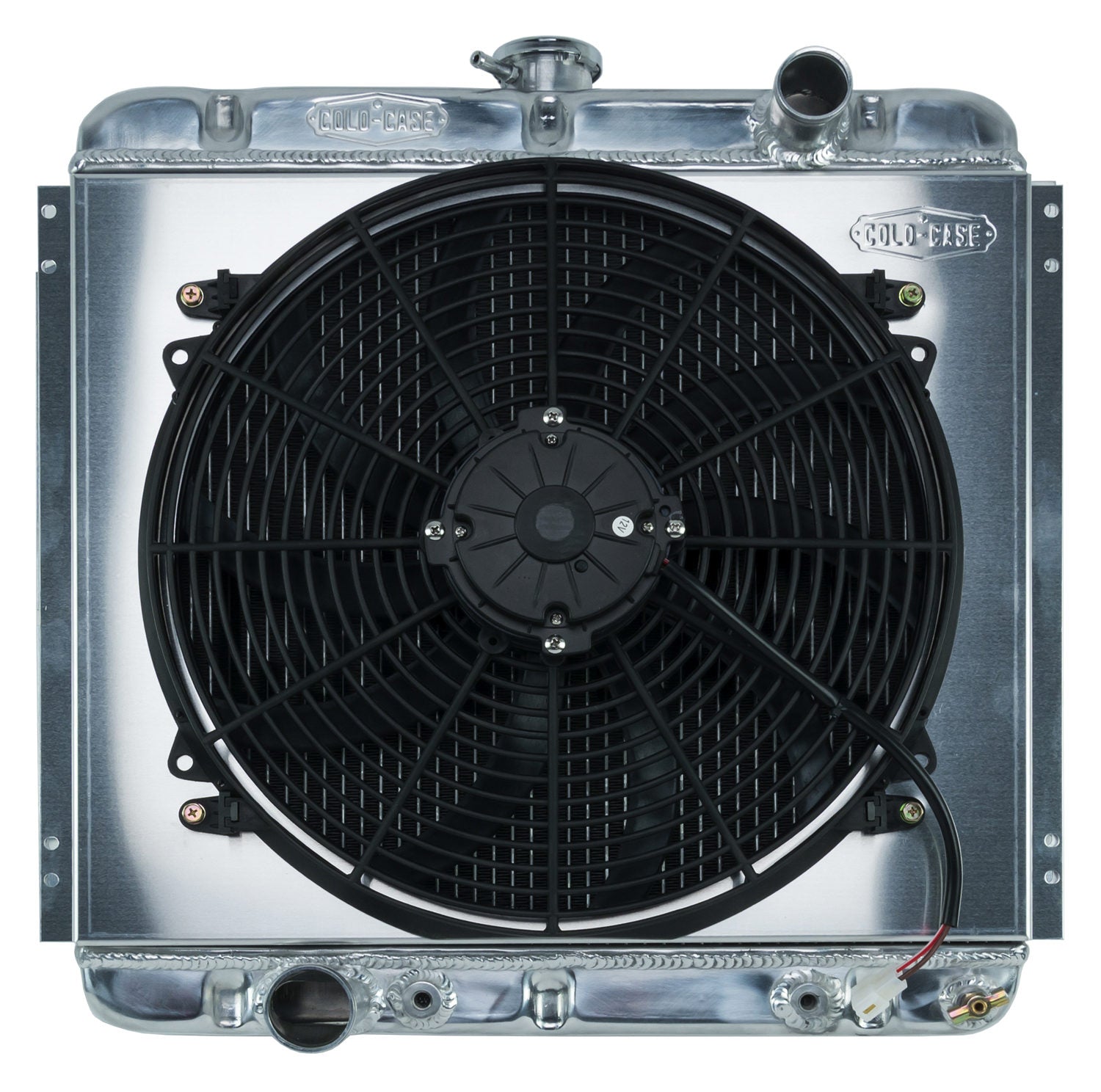

Cold Case Radiators FOM560AK - 67-70 Mustang 20 Inch Aluminum Performance Radiator And 16 Inch Fan Kit AT

Cold Case Radiators FOM560AK - 67-70 Mustang 20 Inch Aluminum Performance Radiator And 16 Inch Fan Kit AT

67-70 Mustang 20 Inch Aluminum Performance Radiator And 16 Inch Fan Kit AT Cars. 67-68 LH outlets, 69-70 302 w/o AC. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For automatic trans
• Direct fitment for 67-70 Mustang 390/428
• Old Part Number: REP560ATFK

Radiator Specs

• Core Height 16.5 inch
• Core Width 19.6 inch
• Overall Height 20.5
• Overall Width 21.06 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.77 inch
