Cold Case Radiators - CHV719AK

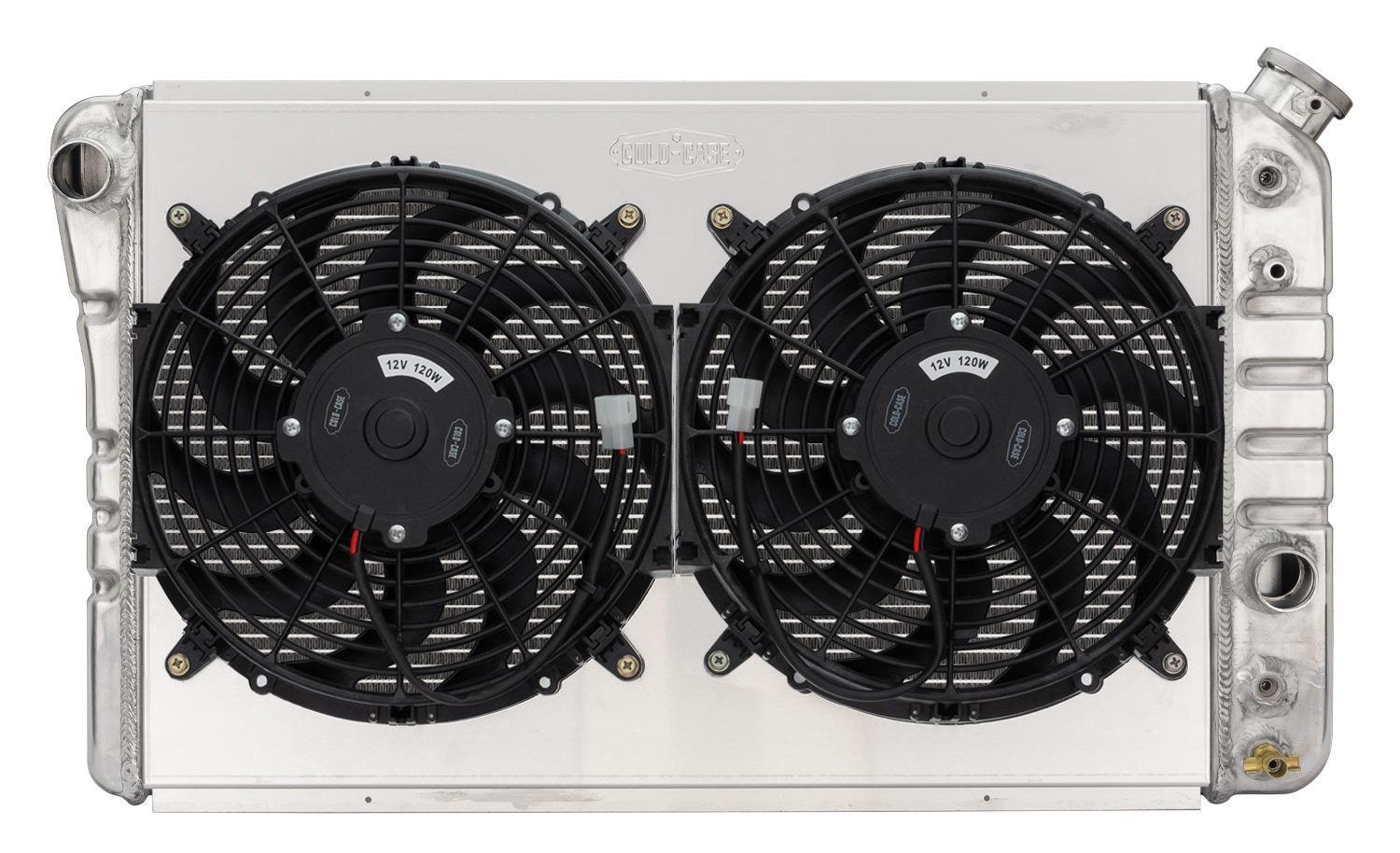

1984-1990 Chevy Corvette C4 Aluminum Performance Radiator with Dual 12 inch Fan and Shroud Kit. AT/MT Cars.
These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.
You would be hard-pressed to spot the difference between an OEM replacement and a COLD-CASE, and you would never match the performance.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/maual trans
- Direct fitment for 84-90 Corvette
Radiator Specs
- Core Height 15 inch
- Core Width 23.75 inch
- Overall Height 16.5 inch
- Overall Width 29 inch
- Overall Thickness 6.75 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.20 inch
- Lower Hose 1.35 inch
- Trans Cooler Fitting: 5/16 inch Inverted Flare
- Dual 12' Fan and Shroud Kit
