Cold Case Radiators

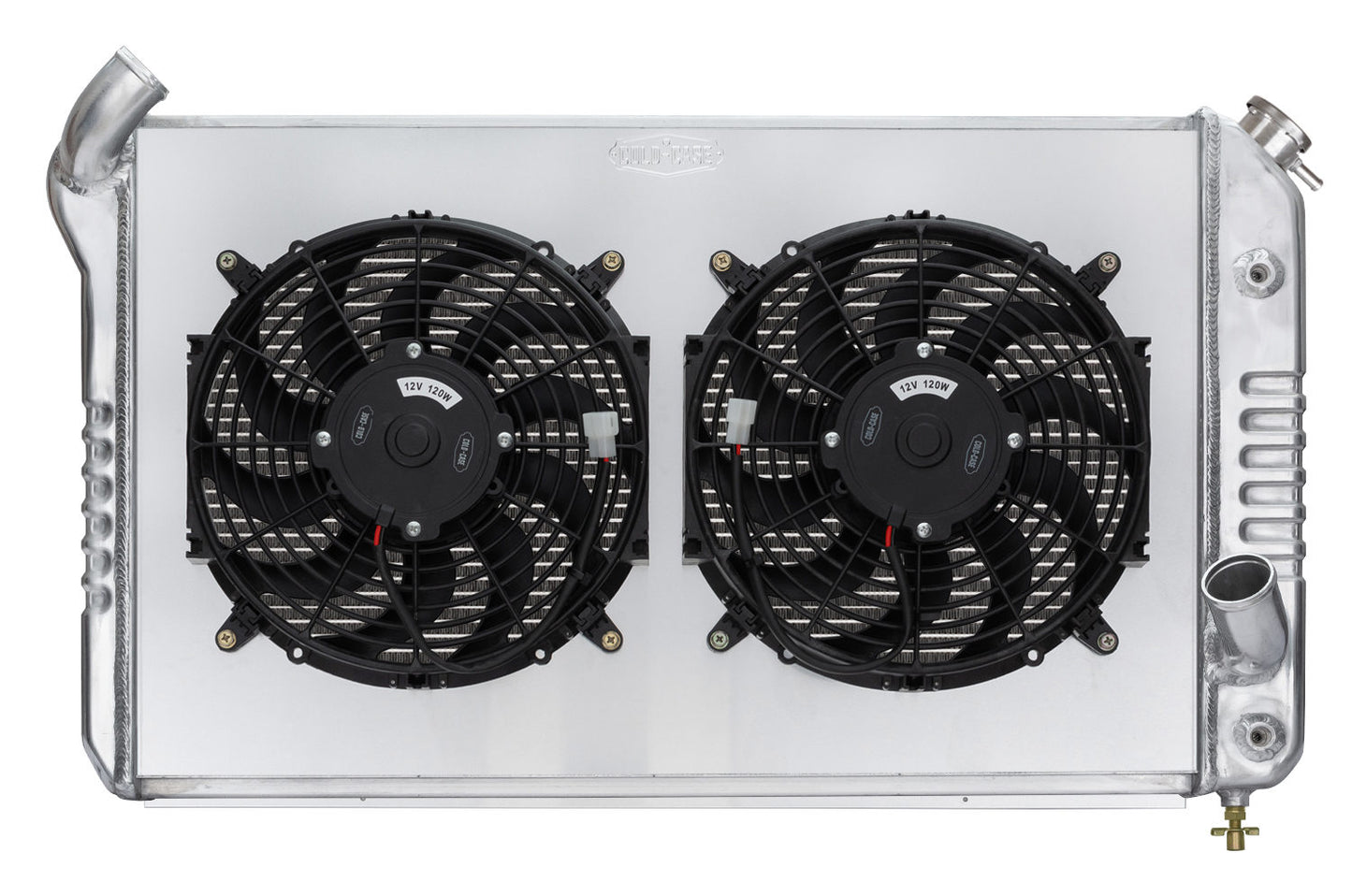

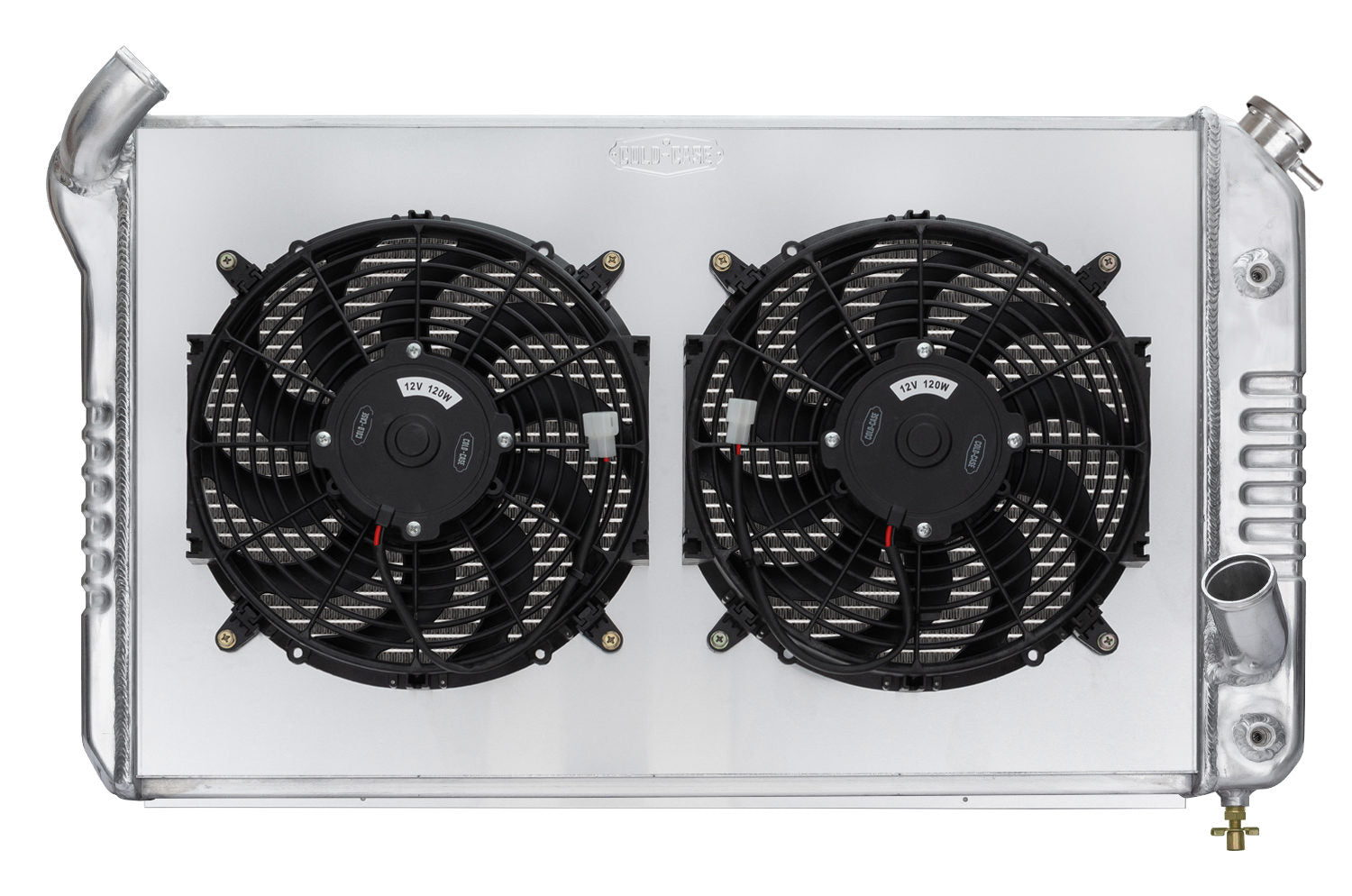

Cold Case Radiators CHV714AK - 69-72 Corvette Small Block Aluminum Radiator Dual 12 Inch Fan Kit

MSRP: $857.12
$724.54
( saved $132.58 )
Write a Review
  • Cold Case Radiators CHV714AK - 69-72 Corvette Small Block Aluminum Radiator Dual 12 Inch Fan Kit
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
Adding to cart… The item has been added
SKU:
GSWT-CHV714AK
UPC:
846861017876
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Cold Case Radiators - CHV714AK

69-72 Corvette Small Block Aluminum Performance Radiator with Dual 12 inch Fan and Shroud Kit but with fill neck. For a radiator without the fill neck, see CHV714A-1K.

These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.

You would be hard-pressed to spot the difference between an OEM replacement and a COLD-CASE, and you would never match the performance of a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE-style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual/auto trans
  • Direct fitment for 69-72 Corvette Small Block
  • Dual 12 inch fan and shroud kit

Radiator Specs

  • Core Height 17 inch
  • Core Width 26.25 inch
  • Overall Height 19.5 inch
  • Overall Width 31.75 inch
  • Overall Thickness 6.75 inch
  • Upper Hose 1.5 inch
  • Lower Hose 1.75 inch
  • Tubes (2) 1.25-inch Tubes
  • Trans Cooler Fitting: 5/16 inch Inverted Flare
