Cold Case Radiators - CHV714A-1K

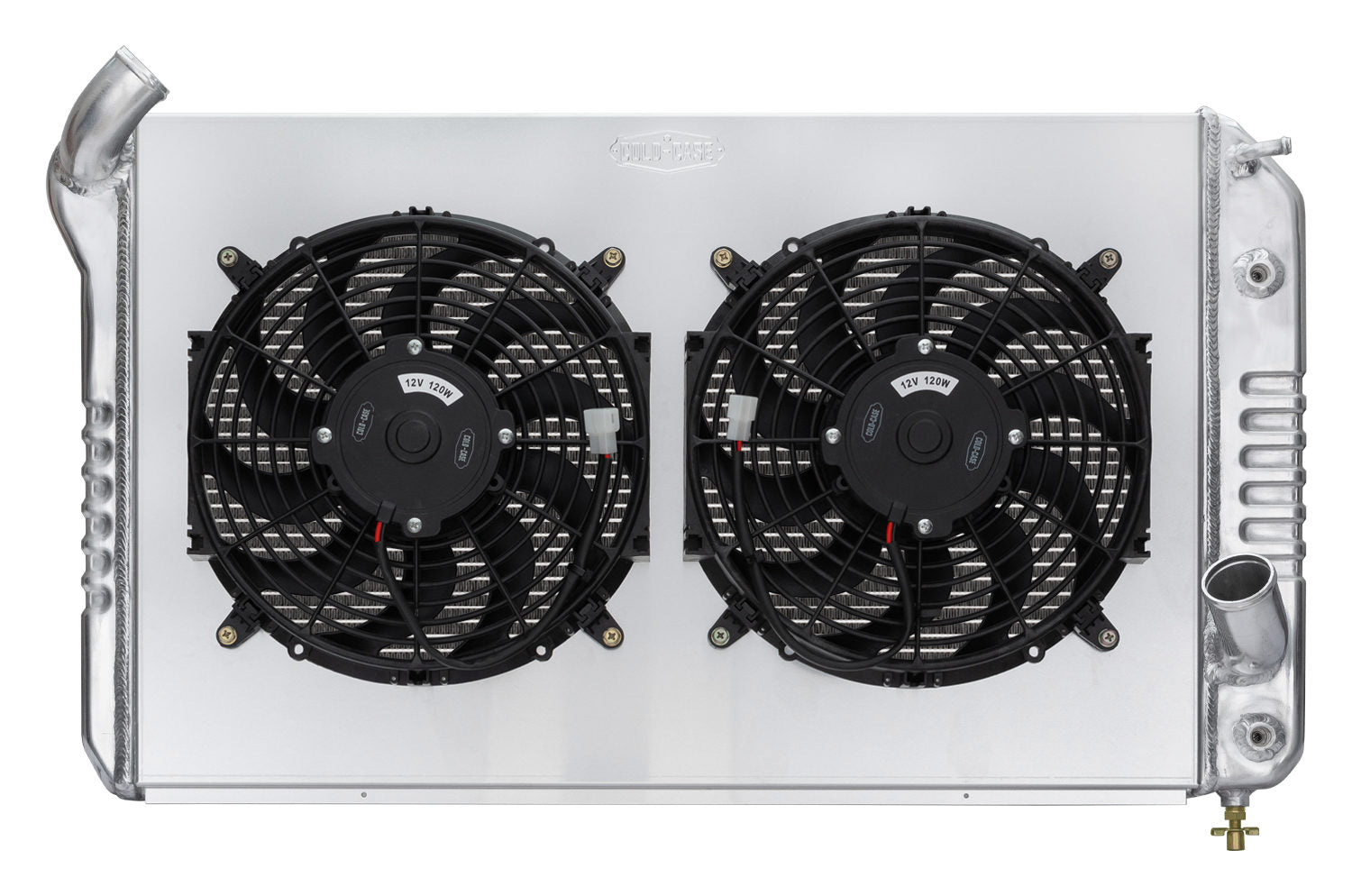

69-72 Corvette Big Block Aluminum Performance Radiator with Dual 12 inch Fan and Shroud Kit but without fill neck. For a radiator with fill neck, see CHV714A.
These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.
You would be hard-pressed to spot the difference between an OEM replacement and a COLD-CASE, and you would never match the performance of a COLD-CASE.
100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/auto trans
- Direct fitment for 69-72 Corvette Big Block
- Dual 12 inch fan and shroud kit
Radiator Specs
- Core Height 17 inch
- Core Width 27.5 inch
- Overall Height 19.5 inch
- Overall Width 31.75 inch
- Overall Thickness 6.75 inch
- Upper Hose 1.5 inch
- Lower Hose 1.75 inch
- Tubes (2) 1.25 inch Tubes
- Trans Cooler Fitting: 5/16 inch Inverted Flare
