Cold Case Radiators CHV712AK - 65-68 Corvette Small Block Aluminum Radiator 16 Inch Fan Kit

Cold Case Radiators CHV712AK - 65-68 Corvette Small Block Aluminum Radiator 16 Inch Fan Kit

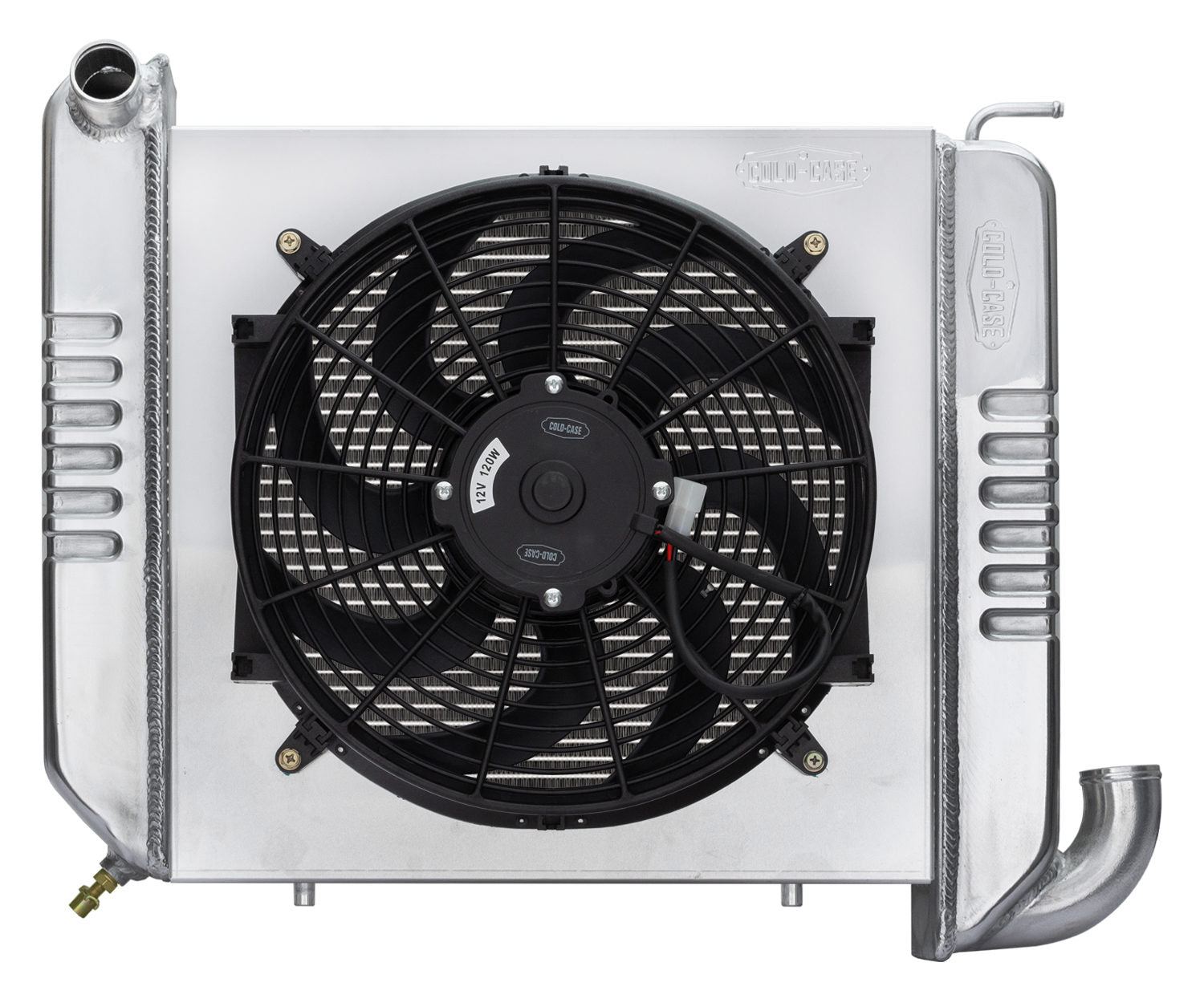

1965-1968 Chevrolet Corvette Small Block Aluminum Performance Radiator with 16 inch fan and Shroud Kit. MT Cars.

These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.

You would be hard-pressed to spot the difference between an OEM replacement and never match the performance of a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished original style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For maual trans
• Direct fitment for 65-68 Corvette w/ Small Block
• 16 inch 2500cfm fan and shroud kit

Radiator Specs

• Core Height 16.5 Inch
• Core Width 17.3 Inch
• Overall Height 18 Inch
• Overall Width 24.5 Inch
• Overall Thickness 6.75Inch
• Upper Hose 1.5 Inch
• Lower Hose 1.75 Inch
• Tubes (2) 1.25 Inch Tubes
