Cold Case Radiators CHV711K - 61-62 Corvette Aluminum Performance Radiator 16 Inch Fan Kit

Cold Case Radiators CHV711K - 61-62 Corvette Aluminum Performance Radiator 16 Inch Fan Kit

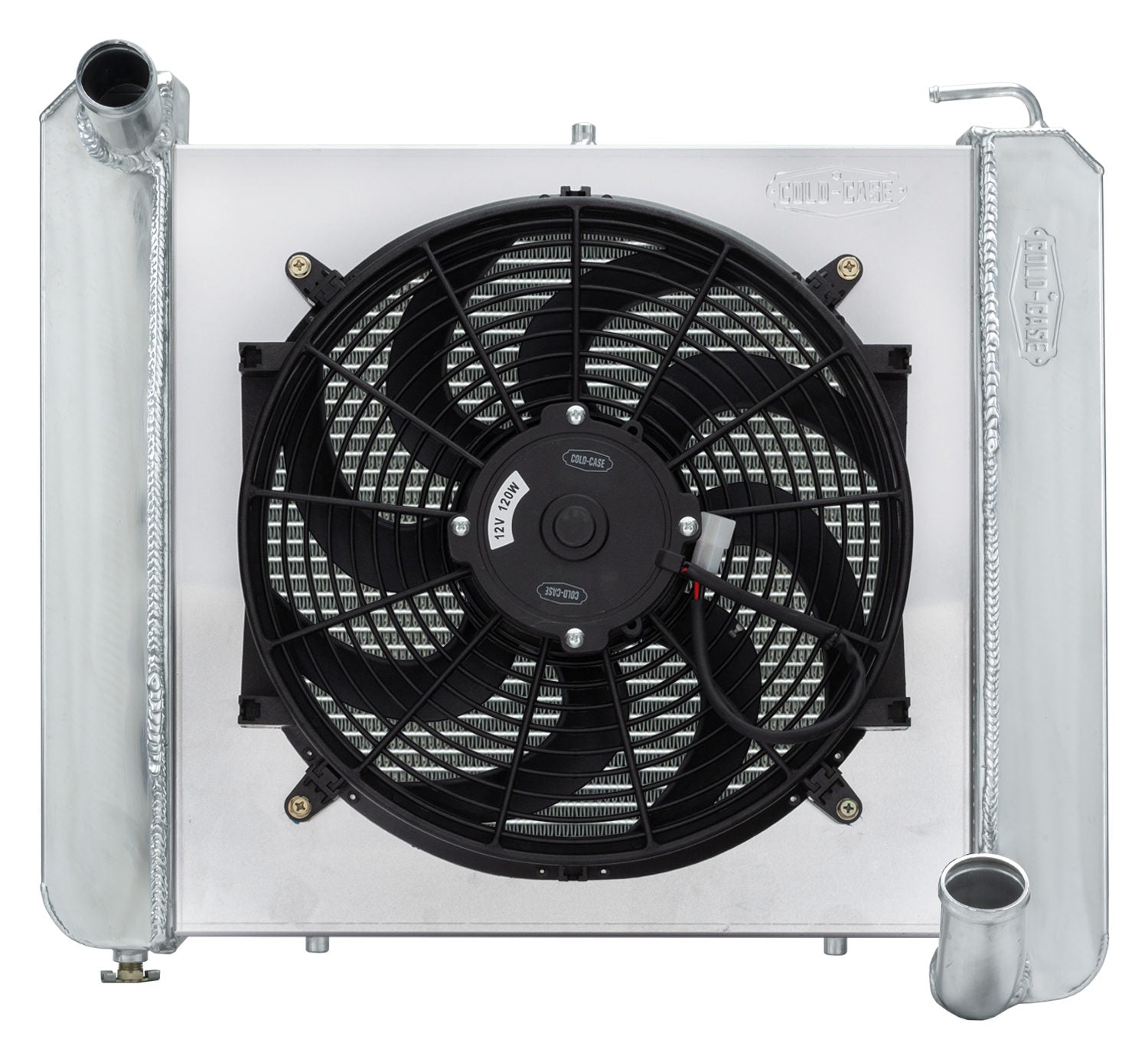

1961-1962 Chevrolet Corvette Aluminum Performance Radiator with 16 inch Electric Fan and Shroud Kit. MT Cars.

These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. They feature original-appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true-performance radiator.

You would be hard-pressed to spot the difference between an OEM replacement and never match the performance of a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished stamped  tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual transmissions
• 16 inch 2500cfm electric fan and shroud

Radiator Specs

• Core Height 19.75 Inch
• Core Width 16.75 Inch
• Overall Height 22.75 Inch
• Overall Width 22.50 Inch
• Overall Thickness 6.75 Inch
• Upper Hose 1.50 Inch
• Lower Hose 1.75 Inch
• Tubes (2) 1.25 Inch Tubes
