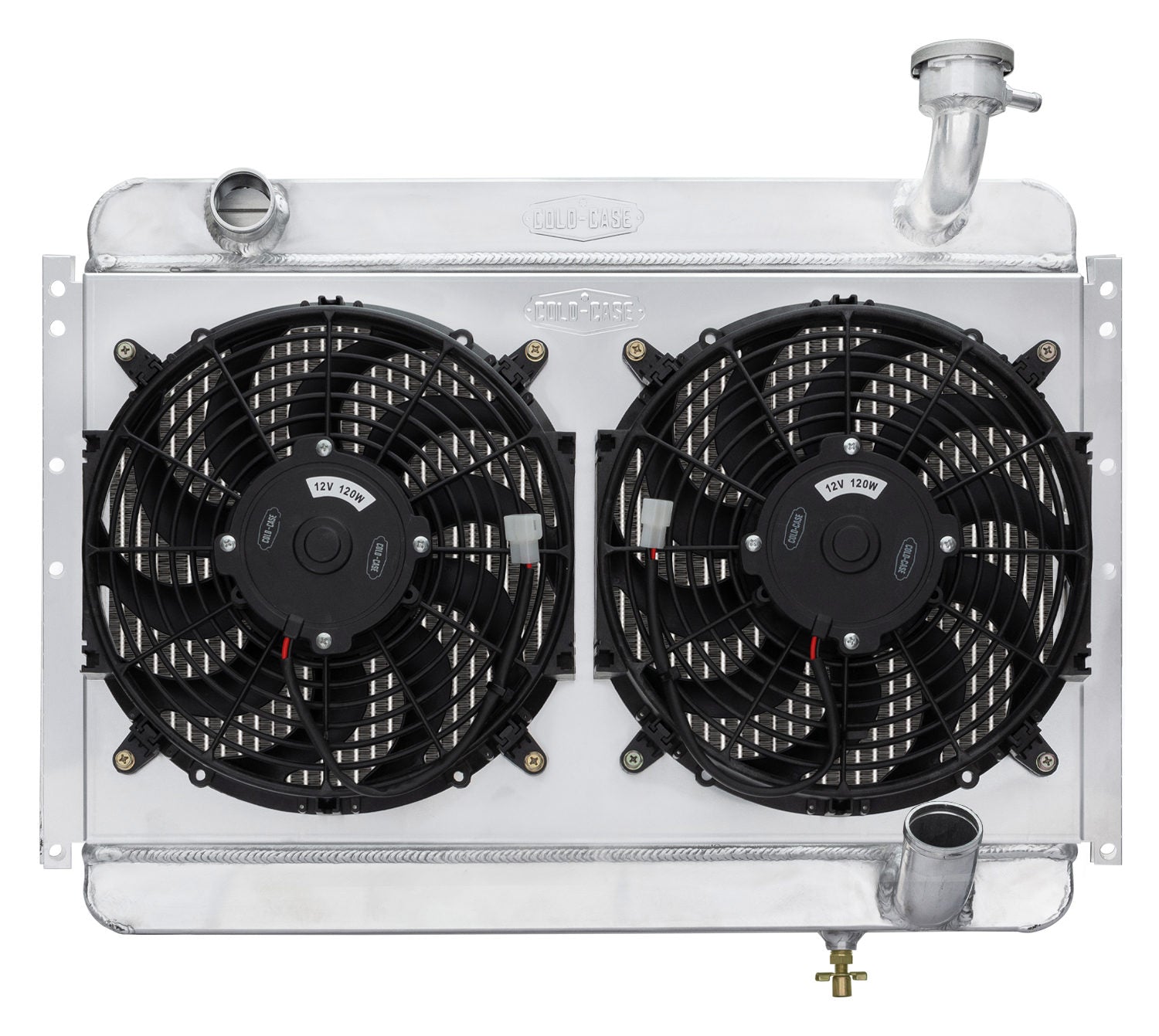

Cold Case Radiators CHV710K - 56-60 Corvette Aluminum Radiator Dual 12 Inch Fan Kit

Cold Case Radiators CHV710K - 56-60 Corvette Aluminum Radiator Dual 12 Inch Fan Kit

1956-1960 Chevrolet Corvette Aluminum Performance Radiator with Dual 12 inch Fan and Shroud Kit. AT/MT Cars.

These COLD-CASE radiators are Tig welded 100 percent aluminum and are absolutely beautiful. These radiators feature original appearing stamped tanks, oversized core tubes, and advanced fin design, adding up to a stock-appearing true performance radiator.

You would be hard-pressed to spot the difference and never match the performance of a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE-style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual trans
• Dual 12' Fan and Shroud Kit

Radiator Specs

• Core Height 14 Inch
• Core Width 24.3 Inch
• Overall Height 19 Inch
• Overall Width 26.25 Inch
• Overall Thickness 6.75 Inch
• Upper Hose 1.5 Inch
• Lower Hose 1.75 Inch
• Tubes (2) 1.25 Inch Tubes
