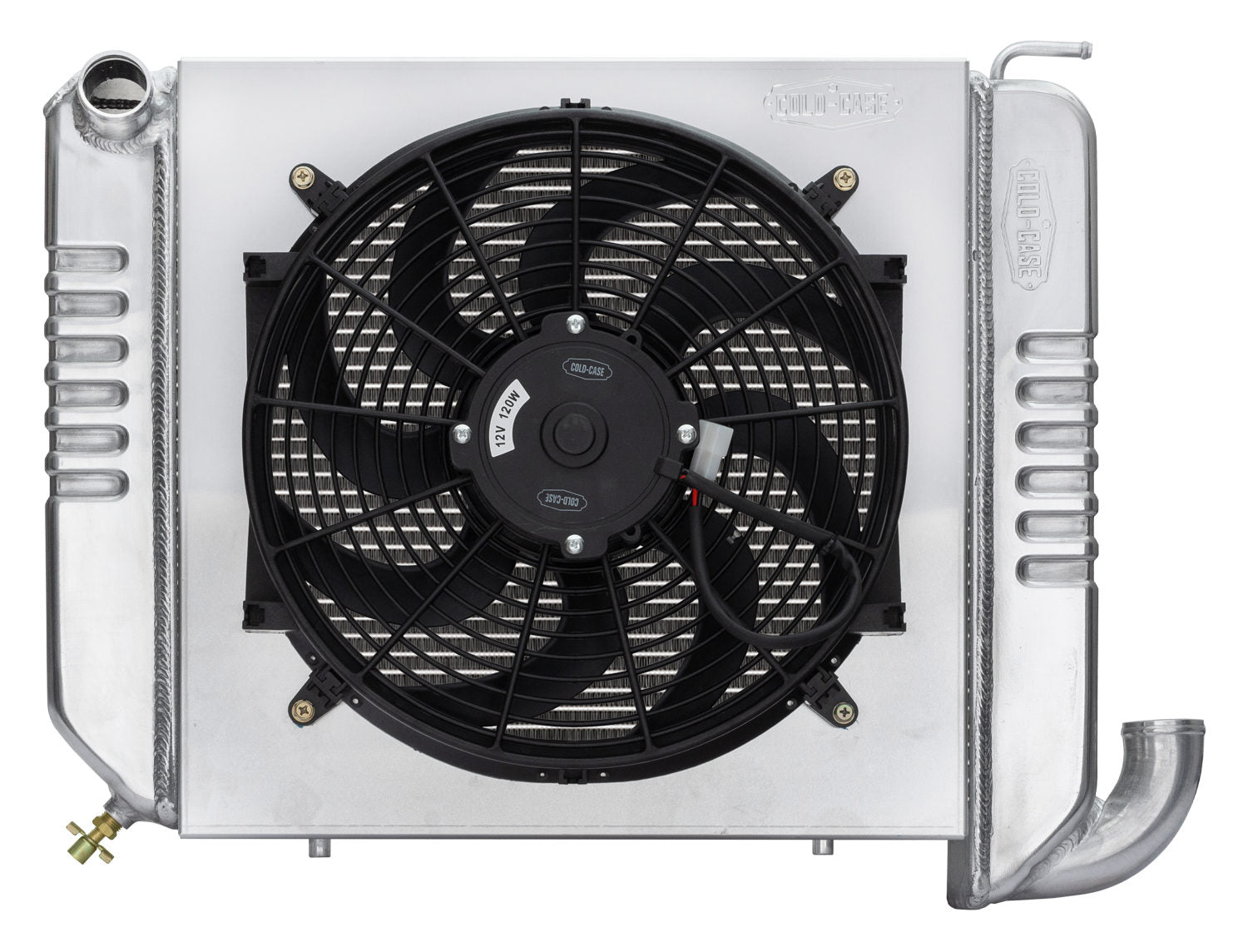

Cold Case Radiators CHV709K - 63-64 Corvette Small Block Aluminum Radiator Single 16 Inch Fan Kit

Cold Case Radiators CHV709K - 63-64 Corvette Small Block Aluminum Radiator Single 16 Inch Fan Kit

1963-1964 Chevrolet Corvette Small Block Aluminum Performance Radiator with 16 inch electric Fan Kit. MT Cars.

These COLD-CASE radiators are Tig-welded 100 percent aluminum and are absolutely beautiful. They appear original but are all performance with oversized core tubes, fin design, and workmanship. All are backed by a limited lifetime warranty.

• 100 percent TIG welded
• All Aluminum
• Polished OE-style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual trans
• Direct fitment for 63-64 Corvette w/ Small Block
• 2500 CFM fan  and shroud kit

Radiator Specs

• Core Height 16.5 Inch
• Core Width 17 Inch
• Overall Height 18.5 Inch
• Overall Width 22.6 Inch tanks
• Overall Thickness 6.75 Inch
• Upper Hose 1.25 Inch
• Lower Hose 1.75 Inch
• Tubes (2) 1.25 Inch Tubes
