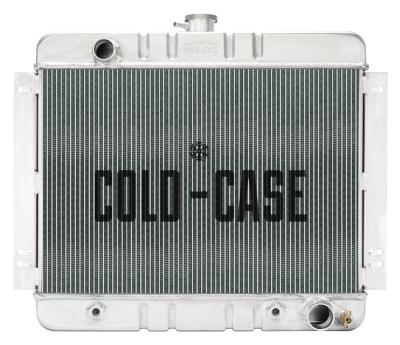

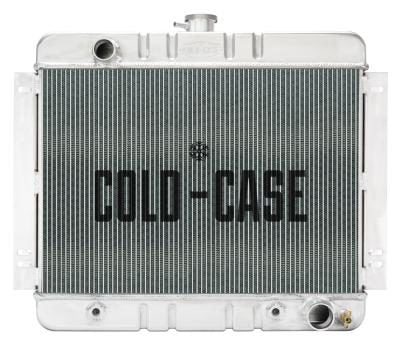

Cold Case Radiators - CHN540SK
1962-1967 Chevrolet Nova Aluminum Performance Radiator. Automatic Transmission. Will also fit Inline 6 applications with flat fronted fan. Very limited clearance if using our fan/shroud combo. Will have to push motor back and use short water pump. These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.
Features:
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Automatic trans
- Direct fitment for 62-67 Nova
- Old Part Number: RPE540
Radiator Specs:
- Core Height 15.35 inch
- Core Width 22.35 inch
- Overall Height 20.7 inch
- Overall Width 25.75 inch
- Overall Thickness 3 inch
- Tubes (2) 1 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
- Trans Cooler Fitting: 5/16 inch Inverted Flare
