Cold Case Radiators - CHN540ASK

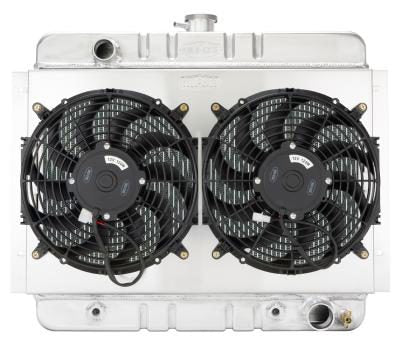

62-67 Chevy Nova and Chevy II Aluminum Radiator And Dual 12 Inch Fan Kit. Automatic Transmission. Will also fit Inline 6 applications with flat fronted fan. This module replaces our single fan unit to give you more clearance to the accessory drive. Requires the use of a short water pump.
These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4-row aluminum radiator! It doesn't cool as good as these oversize 2-rowwell models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.
Features:
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 62-67 Nova
Radiator Specs:
- Core Height 15.35 inch
- Core Width 22.35 inch
- Overall Height 20.7 inch
- Overall Width 25.75 inch
- Overall Thickness 6.75 inch
- Tubes (2) 1 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
- Trans Cooler Fitting Size: 5/16 Inverted Flare
