Cold Case Radiators CHE542K - 66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit MT

Cold Case Radiators CHE542K - 66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit MT

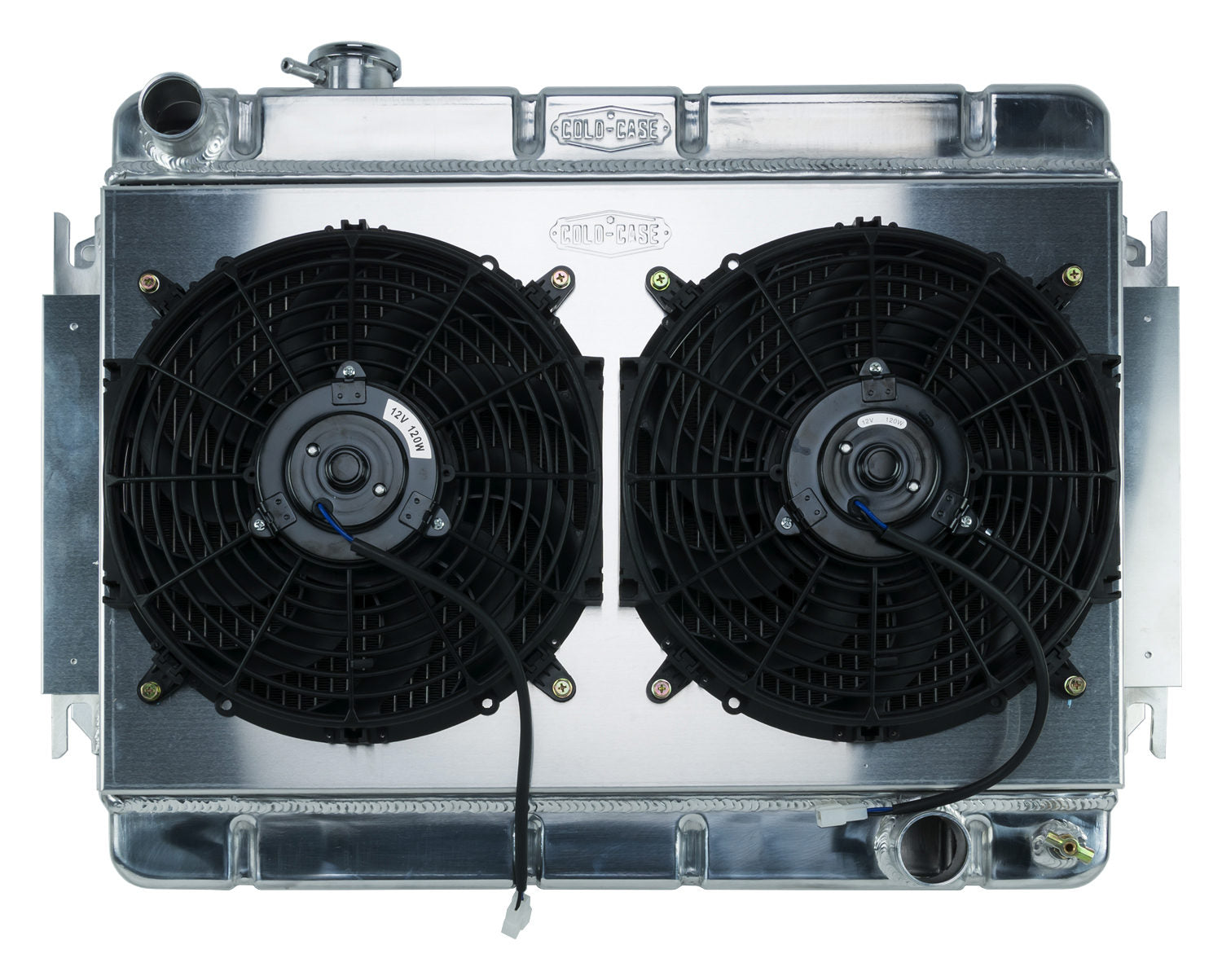

66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit MT Transmission. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 12 Inch
• All Aluminum
• Polished OE style tanks
• (2) 1.25 Inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/standard trans
• Direct fitment for 66-67 Chevelle/El Camino
• Old Part Number: RPE542K

Radiator Specs

• Core Height 15.4 Inch
• Core Width 24.7 Inch
• Overall Height 20.5 Inch
• Overall Width 27.75 brackets Inch
• Overall Thickness 6 Inch
• Tubes (2) 1.25 Inch Tubes
• Upper Hose 1.57 Inch
• Lower Hose 1.77 Inch
