Cold Case Radiators CHD921A - 59-60 Cadillac Performance Radiator With AC Automatic Transmission

Cold Case Radiators CHD921A - 59-60 Cadillac Performance Radiator With AC Automatic Transmission

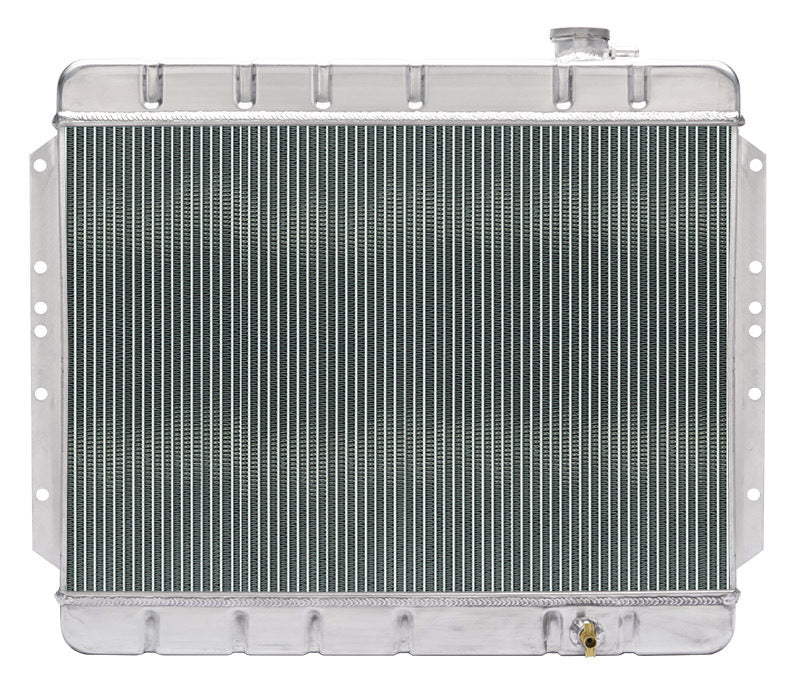

1959-1960 Cadilac Aluminum Performance Radiator. Use for all 390cid applications without Air. Brackets on grille side. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• (2) 1 inch Tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto trans
• Direct fitment for 59-60 Cadillac w/AC and 390

Radiator Specs

• Core Height 17.75 inch
• Core Width 25.5 inch
• Overall Height 23.6 inch to cap
• Overall Width 28.5 inch brackets
• Overall Thickness 3 inch
• Tubes (2) 1 inch Tubes
• Upper Hose 1.75 inch
• Lower Hose 1.75 inch
